- Page 1 4-Port PoweredUSB 2.0 Hub Operations Guide with External Power Supply and Dell Integrator Kit Part #010776 CyberData Corporation 2555 Garden Road Monterey, CA 93940 (831) 373-2601 930102D...
- Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
-
Page 3: Table Of Contents
Appendix A Regulatory and Safety Information Appendix B Setting up the Hub on Windows XP Appendix C Troubleshooting/Technical Support C.1 Frequently Asked Questions (FAQ) ....................21 C.2 Documentation ............................21 C.3 Contact Information ..........................21 C.4 Warranty ...............................22 Index Operations Guide 930102D CyberData Corporation... - Page 4 Contents CyberData Corporation 930102D Operations Guide...
-
Page 5: Chapter 1 Product Overview

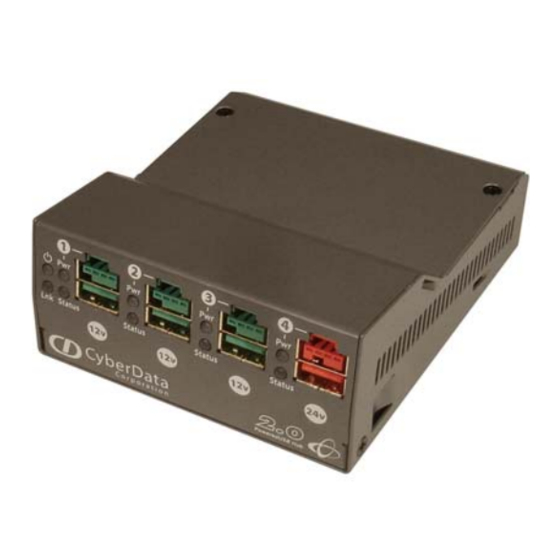

1 Product Overview The CyberData 4-Port PoweredUSB 2.0 Hub provides a simple, affordable way to add up to four PoweredUSB ports to your PC. These additional ports are controlled by the PC’s “standby” and “wake” commands. This add-on hub makes it easy to connect the PC to devices that require more than the 500mA of +5 volts supplied with the standard USB interface. - Page 6 Product Overview CyberData Corporation 930102D Operations Guide...
-
Page 7: Chapter 2 Installing And Using The Hub
Section 2.1, "Product Components List" ● Section 2.2, "Product Compatibility" ● Section 2.3, "Installation Options" ● Section 2.4, "Connections" ● Section 2.5, "Operation" ● Section 2.6, "Port Electrical Specifications" ● Figure 2-1. 4-Port PoweredUSB Hub Operations Guide 930102D CyberData Corporation... -
Page 8: Product Components List
(1) Short USB 2.0 Hi-Speed host cable • (1) Host USB cable strain relief clamp • (1) 4-Port PoweredUSB Hub Operations Guide Figure 2-2. CyberData 4-Port PoweredUSB 2.0 Hub—Front View Port Power LED +12V PoweredUSB Ports Hub Power LED Link LED... -
Page 9: Product Compatibility
Section 2.1, "Product Components List". To watch a video of this Integrator mounting process, go to http://www.cyberdata.net/support/4port20hub/. To mount the Hub on a Dell Retail Integrator: 1. Use the screws supplied to attach the Mounting Bracket to the left side of the Hub. - Page 10 Installing and Using the Hub Figure 2-4. Dell Retail Integrator Mounting—Back View USB Host “B” connector Dell Mounting Bracket mounted to Hub and bracket and cable strain relief feet inserted into Dell Retail Integrator holes CyberData Corporation 930102D Operations Guide...
- Page 11 Figure 2-5. Dell Retail Integrator Mounting—Front View Twist Lock ready to insert into Dell Retail Integrator hole Twist Lock shown in locked position Insert Twist Lock into Dell Retail Integrator hole and then twist it to the locked position Operations Guide 930102D CyberData Corporation...
-
Page 12: Connections
Figure 2-6. Power Connectors—Back View +24V for +24V for USB Host Strain up to 2.5 up to 6.5 Connector Relief Amp load Amp load (Type B) CyberData Corporation 930102D Operations Guide... -
Page 13: Host Connector
The PoweredUSB connections are standard USB “A” connectors with four extra pins to supply higher voltages. See ”Figure 2-7”on page 9. The lower portion of the “A” connector on this product can be used alone, without the locking PoweredUSB connector. Operations Guide 930102D CyberData Corporation... -
Page 14: Connector Color Keys
Figure 2-9. USB PoweredUSB Socket Connector Pin Assignments PIN OUT Signal Description Vbus USB standard “A” USB standard “A” USB standard “A” Ground USB standard “A” Ground USB PlusPower Vplus USB PlusPower Vplus USB PlusPower Ground USB PlusPower Shell Shield CyberData Corporation 930102D Operations Guide... -
Page 15: Peripherals Connections To The 4-Port Poweredusb Hub
This figure illustrates the cable routing from the 4-Port PoweredUSB Hub to the Dell Retail Integrator. Figure 2-10. Dell Retail Integrator Showing Hub PoweredUSB Cable Routing—Top View +24V PoweredUSB Connector +12V PoweredUSB Connectors CyberData 4-Port PoweredUSB Hub Operations Guide 930102D CyberData Corporation... -
Page 16: Peripheral Cable Connection Options
Via email: sales@cyberdata.net ● Via phone: Sales (831) 373-2601 Extension 334 ● Figure 2-11. Custom cables of different lengths and colors can be purchased from CyberData as follows: Via email: sales@cyberdata.net ● Via phone: Sales (831) 373-2601 Extension 334 ●... - Page 17 Installing and Using the Hub Figure 2-13. Cables; +12V PoweredUSB to +12V Power Jack and RS-232 to RS-232 Figure 2-14. Cables; +24V PoweredUSB to 3-Pin Mini-DIN and RS-232 to RS-232 or Parallel to Parallel Operations Guide 930102D CyberData Corporation...
- Page 18 Figure 2-15. “Y” Cable, +24V PoweredUSB to 3-Pin Power Mini-DIN and USB “B” Connectors Figure 2-16. RS232 to USB Converter “Y” Cable +12V (PC Enumerates this device as an RS-232 COM port) Figure 2-17. Cable, +24V PoweredUSB to 1x8 PoweredUSB CyberData Corporation 930102D Operations Guide...
-
Page 19: Operation
3. Plug in a standard USB compliant device, such as a mouse or keyboard. 4. Disable the low-power, standby operation. With this configuration, power is always supplied to the PoweredUSB ports regardless of the PC’s operational state. For more information, contact CyberData as instructed in Appendix C, "Troubleshooting/Technical Support". -
Page 20: Port Electrical Specifications
DC connection, remove the over current condition, and re-cycle the DC connection to the Hub by unplugging it, and plugging it in again. +12V Ports (3) – 1.5A each ● +24V Port (1) – 2.3A ● CyberData Corporation 930102D Operations Guide... -
Page 21: Appendix A Regulatory And Safety Information
• EN61000-3-2: 2000 • EN61000-3-3: 1995 EN55024: 1998 ● • EN61000-4-2: 1995 • EN 61000-4-3:1996 • EN 61000-4-4: 1995 • EN 61000-4-5: 1995 • EN 61000-4-6: 1996 • EN 61000-4-8: 1993 • EN 61000-4-11: 1995 Operations Guide 930102D CyberData Corporation... - Page 22 CyberData Corporation 930102D Operations Guide...
-
Page 23: Appendix B Setting Up The Hub On Windows Xp
At this point, you should be able to plug in and install a USB device provided you have also installed its drivers, or have them available for installation. Operations Guide 930103D CyberData Corporation... - Page 24 CyberData Corporation 930103D Operations Guide...
-
Page 25: Appendix C Troubleshooting/Technical Support
Phone: 831-373-2601, Extension 136 Email: RMA@CyberData.net When returning a product to CyberData, an approved CyberData RMA number must be printed on the outside of the original shipping package. No product will be accepted for return without an approved RMA number. Send the product, in its original package, to the following address:... -
Page 26: Warranty
CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase. Should the product fail within the warranty period, CyberData will repair or replace the product free of charge. This warranty includes all parts and labor. -
Page 27: Index
5 components list 4 connector color keys 10 license 1 CyberData license with IBM 1 CyberData contact information, corporate, sales, tech support, service 21 Microsoft XP Service Pack 1 19 mounting bracket 5 on Dell Retail Integrator 5... - Page 28 IP address to the default 21 RMA returned materials authorization 21 short circuit protection 1 technical support, contact information 21 twist lock 4, 5 2.0 specification 15 over current 16 warranty 1, 22 Windows XP 15, 19 CyberData Corporation 930102D Operations Guide...
