CyberData 011171 Installation Quick Reference

Mounting

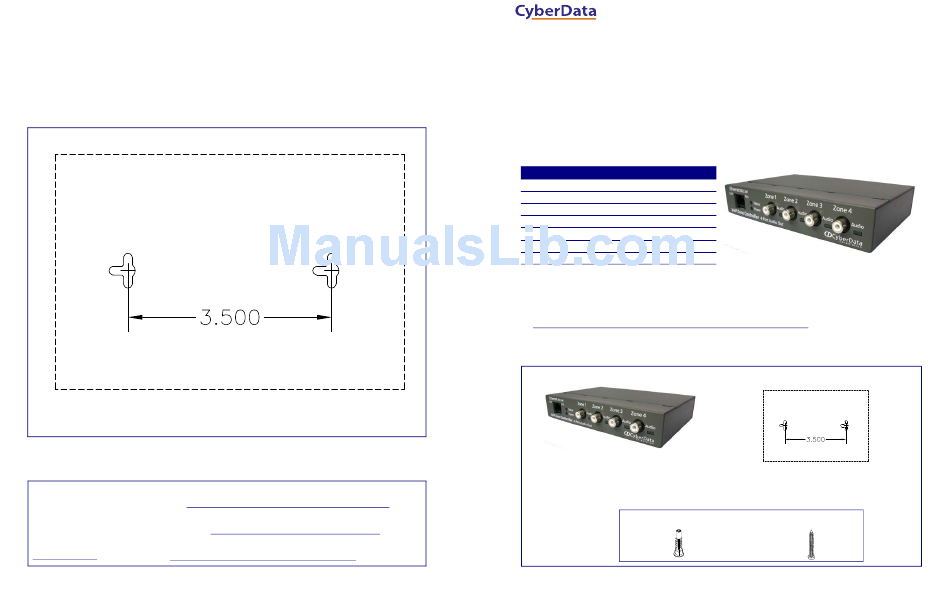

You have the option to use the following mounting template to mark, and then drill two 3/16" (0.1875") holes for the
plastic ribbed anchors.
To install and mount the V3 Zone Controller:
1. Install the plastic ribbed anchors in the holes, and position the V3 Zone Controller mounting holes over the
anchors.
2. Use the two #6 x 1 1/2" screws to secure the V3 Zone Controller onto the mounting surface.
Drill Hole Size for Anchor Installation: 3/16" (0.1875")
Contacting CyberData
Sales: (831) 373-2601 ext. 334
Corporate Headquarters
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.html
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status:
Phone: 831-373-2601
Fax: 831-373-4193
Warranty and RMA information is available at the following website:
www.CyberData.net
http://www.cyberdata.net/support/warranty/index.html
© 2011 CyberData Corporation ALL RIGHTS RESERVED
http://www.cyberdata.net/support/rmastatus.html
930445B Quick Reference
Installation Quick Reference
The IP Endpoint Company

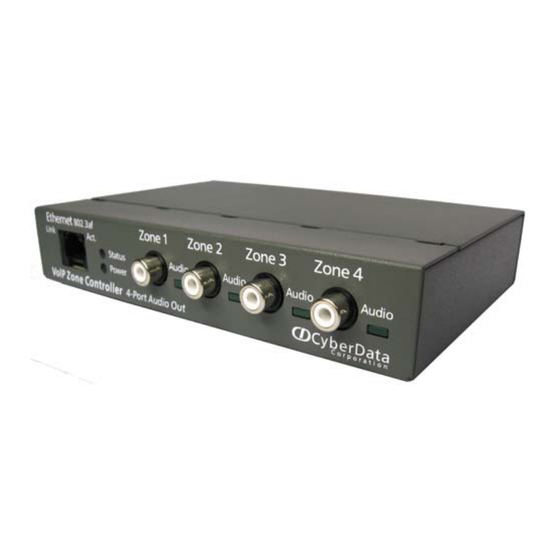

VoIP V3 Zone Controller:
4-Port Audio Out
SIP Compliant
011171
The VoIP V3 Zone Controller with Audio-Out enables access to existing paging speakers through a VoIP phone system.
The interface is designed to use a standard paging amplifier with audio inputs and supports paging up to 15 zone
groups from a VoIP phone.
Product Specifications
Regulatory Compliance FCC Class A, UL 60950, CE
Power Requirement PoE or +48VDC
LAN Speed 10/100 Mbps
Protocol SIP compliant
Part Number 011171
Dimensions 6.11"L x 4.05"W x 1.15" H
Weight 1.2 lbs.
Getting Started
• Be sure that you have received all the parts described in the
• Download the VoIP V3 Zone Controller Operations Guide from the following website address:
http://www.cyberdata.net/products/voip/legacyanalog/pagingzonev3/docs.html
Parts List
(1) VoIP Zone Controller - 4-Port Audio Out
(2) #6 Plastic Ribbed Anchors
Quick Reference
Parts List section.
(1) Mounting Template (see the last page)
(1) Mounting Kit
(2) #6 x 1 1/2" Screws
