- Page 1 The IP Endpoint Company 4-Port PoweredUSB 2.0 Hub Operations Guide with External Power Supply Part #010807 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
- Page 2 “open source” or “free software” licenses. Some of this Open Source Software may be owned by third parties. Open Source Software is not subject to the terms and conditions of the CyberData COPYRIGHT NOTICE or software licenses. Your right to copy, modify, and distribute any Open Source Software is determined by the terms of the GPL, LGPL, or third party, according to who licenses that software.
- Page 3 Revision Information Revision 930103G, which was released on August 31, 2011, has the following changes: • Updates Section Appendix C:, "Troubleshooting/Technical Support". Operations Guide 930103G CyberData Corporation...
-
Page 4: Important Safety Instructions
Electrical Hazard: This product should be installed by a licensed electrician according to all local electrical and building codes. GENERAL ALERT Warning Electrical Hazard: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Operations Guide 930103G CyberData Corporation... - Page 5 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. Operations Guide 930103G CyberData Corporation...
-
Page 6: Table Of Contents
C.4.2 Warranty & RMA Returns Outside of the United States ............ 20 C.4.3 Spare in the Air Policy ......................20 C.4.4 Return and Restocking Policy ....................21 C.4.5 Warranty and RMA Returns Page ..................21 Index Operations Guide 930103G CyberData Corporation... -
Page 7: Chapter 1 Product Overview

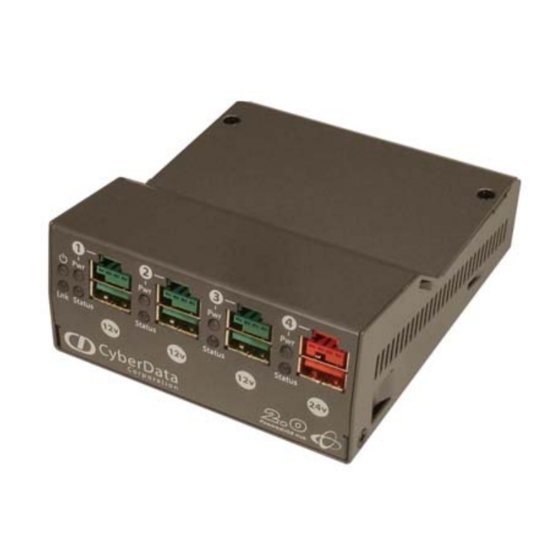

This add-on Hub makes it easy to connect the PC to devices that require more than the 500mA of +5 volts supplied with the standard USB interface. Figure 1-1. CyberData 4-Port PoweredUSB 2.0 Hub 1.1 Product features 4 PoweredUSB ports ●... -
Page 8: License Note
® CyberData Corporation is licensed with IBM to manufacture, and to sell or lease products that incorporate this technology. This license also permits other entities to resell or release these Cyberdata products after they have been purchased from CyberData. -
Page 9: Dimensions
Product Overview Dimensions 1.4 Dimensions Figure 1-2. Dimensions Perspective View 1.78 [45.3] 3.71 [94.3] 4.34 [110.3] View A-A Rear View Dimensions are in Inches [Millimeter] Operations Guide 930103G CyberData Corporation... -
Page 10: Chapter 2 Installing And Using The 4-Port Poweredusb Hub
Section 2.1, "Product Components List" ● Section 2.2, "Product Compatibility" ● Section 2.3, "Installation" ● Section 2.4, "Connections" ● Section 2.5, "Operation" ● Section 2.6, "Port Electrical Specifications" ● Figure 2-3. CyberData 4-Port PoweredUSB 2.0 Hub Operations Guide 930103G CyberData Corporation... -
Page 11: Product Components List
(1) Short USB 2.0 Hi-Speed host cable • (1) Host USB cable strain relief clamp • (1) 4-Port PoweredUSB 2.0 Hub Operations Guide Figure 2-4. CyberData 4-Port PoweredUSB 2.0 Hub—Front View Port Power LED +12V PoweredUSB Ports Hub Power LED Link LED... -
Page 12: Product Compatibility
Table 2-1. Operating Systems Operating systems Windows 2000 and XP 2.0 Standard LINUX PoweredUSB 0.8g Mac OS-X 2.3 Installation The 4-Port PoweredUSB Hub is a tabletop unit with mounting feet that sit on a flat surface. Operations Guide 930103G CyberData Corporation... -
Page 13: Connections
Figure 2-6. Power Connectors—Back View +24V for +24V for USB Host Strain up to 2.5 up to 6.5 Connector Relief Amp load Amp load (Type B) Operations Guide 930103G CyberData Corporation... -
Page 14: Host Connector
The PoweredUSB connections are standard USB “A” connectors with four extra pins to supply higher voltages. See Figure 2-9 for an illustration. The lower portion of the “A” connector side on this product can be used alone, without the locking PoweredUSB connector. Operations Guide 930103G CyberData Corporation... -
Page 15: Connector Color Keys
Figure 2-9. USB PoweredUSB Socket Connector Pin Assignments PIN OUT Signal Description Vbus USB standard “A” USB standard “A” USB standard “A” Ground USB standard “A” Ground USB PlusPower Vplus USB PlusPower Vplus USB PlusPower Ground USB PlusPower Shell Shield Operations Guide 930103G CyberData Corporation... -
Page 16: Peripherals Connections To The 4-Port Poweredusb Hub
This figure illustrates the cable routing from the 4-Port PoweredUSB Hub to the Dell Retail Integrator. Figure 2-10. Top view of Hub PoweredUSB cable routing +24V PoweredUSB Connector +12V PoweredUSB Connectors CyberData 4-Port PoweredUSB Hub Operations Guide 930103G CyberData Corporation... -
Page 17: Peripheral Cable Connection Options
4-Port PoweredUSB Hub. The following table provides details about the CyberData PoweredUSB Cables displayed in these figures. PoweredUSB cable Custom cables of different lengths and colors can be purchased from CyberData as follows: sources Via email: sales@cyberdata.net ●... - Page 18 Installing and Using the 4-Port PoweredUSB Hub Connections Figure 2-12. Cables; +12V PoweredUSB to +12V Power Jack and RS-232 to RS-232 Figure 2-13. Cables; +24V PoweredUSB to 3-Pin Mini-DIN and RS-232 to RS-232 or Parallel to Parallel Operations Guide 930103G CyberData Corporation...
- Page 19 Figure 2-14. “Y” Cable, +24V PoweredUSB to 3-Pin Power Mini-DIN and USB “B” Connectors Figure 2-15. RS232 to USB Converter “Y” Cable +12V (PC Enumerates this device as an RS-232 COM port) Figure 2-16. Cable, +24V PoweredUSB to 1x8 PoweredUSB Operations Guide 930103G CyberData Corporation...
-
Page 20: Operation
3. Plug in a standard USB compliant device, such as a mouse or keyboard. 4. Disable the low-power, standby operation. With this configuration, power is always supplied to the PoweredUSB ports regardless of the PC’s operational state. For more information, contact CyberData as instructed in Appendix C, "Troubleshooting/Technical Support". -
Page 21: Port Electrical Specifications
DC connection, remove the overcurrent condition, and re-cycle the DC connection to the Hub by unplugging it, and then plugging it in again. +12V Ports (3) – 1.5A each ● +24V Port (1) – 2.3A ● Operations Guide 930103G CyberData Corporation... -
Page 22: Appendix A Regulatory And Safety Information
• EN61000-3-2: 2000 • EN61000-3-3: 1995 EN55024: 1998 ● • EN61000-4-2: 1995 • EN 61000-4-3:1996 • EN 61000-4-4: 1995 • EN 61000-4-5: 1995 • EN 61000-4-6: 1996 • EN 61000-4-8: 1993 • EN 61000-4-11: 1995 Operations Guide 930103G CyberData Corporation... -
Page 23: Appendix B Setting Up The Hub On Windows Xp
At this point, you should be able to plug in and install a USB device provided you have also installed its drivers, or have them available for installation. Operations Guide 930103G CyberData Corporation... -
Page 24: Appendix C Troubleshooting/Technical Support
To see a list of frequently asked questions for your product, go to the following website: http://www.cyberdata.net/products/retail/pusb/pusb4porthub/faqs.html C.2 Documentation The documentation for this product is released in an English language version only. You can download PDF copies of CyberData product documentation by going to the following website: http://www.cyberdata.net/products/retail/pusb/pusb4porthub/docs.html Operations Guide 930103G... -
Page 25: Contact Information
3 Justin Court Monterey, CA 93940 Attention: RMA "your RMA number" RMA Status Form If you need to inquire about the repair status of your product(s), please use the CyberData RMA Status form at the following web address: http://www.cyberdata.net/support/rmastatus.html Operations Guide... -
Page 26: Warranty
C.4.3 Spare in the Air Policy CyberData now offers a Spare in the Air no wait policy for warranty returns within the United States and Canada. More information about the Spare in the Air policy is available at the following web address: http://www.cyberdata.net/support/warranty/spareintheair.html... -
Page 27: Return And Restocking Policy
For End Users, please contact the company that you purchased your equipment from for their return policy. C.4.5 Warranty and RMA Returns Page The most recent warranty and RMA information is available at the CyberData Warranty and RMA Returns Page at the following web address: http://www.cyberdata.net/support/warranty/index.html... -
Page 28: Index
9 compatibility matrix 6 components list 5 connector color keys 9 contact information 19 license 2 contact information for CyberData 19 CyberData license with IBM 2 CyberData contact information 19 Microsoft XP Service Pack 1 17 DC input jacks 7... - Page 29 1, 20 warranty & RMA returns outside of the United States 20 warranty & RMA returns within the United States 20 warranty and RMA returns page 21 warranty policy at CyberData 20 Windows XP 14, 17 Operations Guide 930103G...
