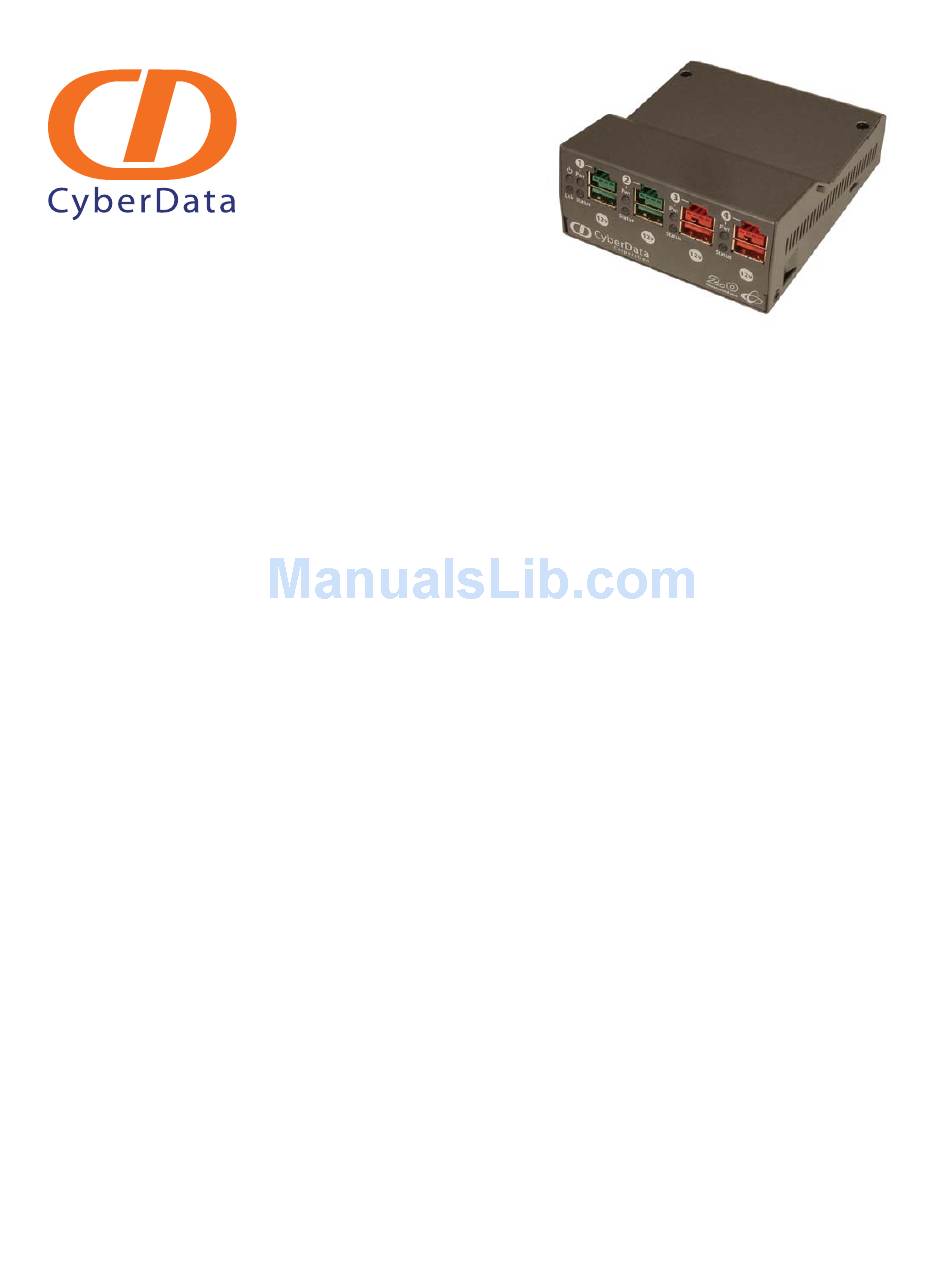

- Page 1 4-Port PoweredUSB 2.0 Hub Operations Guide with External Power Supply Part #011006 CyberData Corporation 2555 Garden Road Monterey, CA 93940 (831) 373-2601 930232A...
- Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
-
Page 3: Table Of Contents
Appendix A Regulatory and Safety Information Appendix B Setting up the Hub on Windows XP Appendix C Troubleshooting/Technical Support C.1 Frequently Asked Questions (FAQ) ....................17 C.2 Documentation ............................17 C.3 Contact Information ..........................17 C.4 Warranty ...............................18 Index Operations Guide 930232A CyberData Corporation... - Page 4 CyberData Corporation 930232A Operations Guide...
-
Page 5: Chapter 1 Product Overview
® CyberData Corporation is licensed with IBM to manufacture, and to sell or lease products that incorporate this technology. This license also permits other entities to resell or release these Cyberdata products after they have been purchased from CyberData. - Page 6 Product Overview CyberData Corporation 930232A Operations Guide...
-
Page 7: Chapter 2 Installing And Using The 4-Port Poweredusb Hub

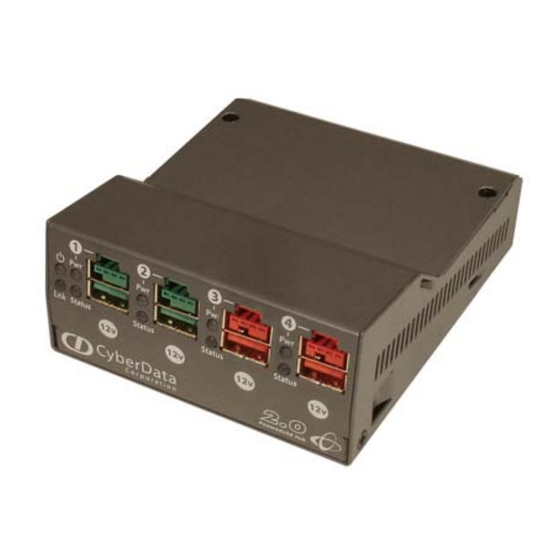

This chapter provides the instructions, illustrations, and background information you need to install, and begin working with the SiP VoIP and PoE Speaker. Figure 2-2. CyberData 4-Port PoweredUSB 2.0 Hub 2.1 Product Components List The 4-Port PoweredUSB 2.0 Hub package includes these parts: (1) SiP VoIP and PoE Speaker ●... -
Page 8: Product Compatibility
Installing and Using the 4-Port PoweredUSB Hub Product Compatibility Figure 2-3. CyberData 4-Port PoweredUSB 2.0 Hub—Front View Port Power LED +12V PoweredUSB Ports Hub Power LED Link LED Port 1 Status LED Lower portion of PoweredUSB Port connectors are Standard USB 2.0 Hi-Speed “A” ports Figure 2-4. -
Page 9: Installation
Figure 2-5. Power Connectors—Back View +24V for +24V for USB Host Strain up to 2.5 up to 6.5 Connector Relief Amp load Amp load (Type B) Operations Guide 930232A CyberData Corporation... -
Page 10: Host Connector
The PoweredUSB connections are standard USB “A” connectors with four extra pins to supply higher voltages. See Figure 2-8 for an illustration. The lower portion of the “A” connector side on this product can be used alone, without the locking PoweredUSB connector. CyberData Corporation 930232A Operations Guide... -
Page 11: Connector Color Keys
USB PlusPower Ground USB PlusPower Shell Shield 2.4.5 Peripherals Connections to the SiP VoIP and PoE Speaker This figure illustrates the cable routing from the SiP VoIP and PoE Speaker to the Dell Retail Integrator. Operations Guide 930232A CyberData Corporation... - Page 12 Installing and Using the 4-Port PoweredUSB Hub Connections Figure 2-9. Top view of Hub PoweredUSB cable routing +12V PoweredUSB Connectors CyberData 4-Port PoweredUSB Hub CyberData Corporation 930232A Operations Guide...
-
Page 13: Peripheral Cable Connection Options
2.4.6 Peripheral Cable Connection Options Figures 10 through 16 provide examples of peripheral cable combinations and connection options for the SiP VoIP and PoE Speaker. The following table provides details about the CyberData PoweredUSB Cables displayed in these figures. PoweredUSB... -
Page 14: Operation
According to the USB 2.0 specification, devices attached to a USB interface should enumerate from caveat the Hub’s USB Vbus, regardless of the PoweredUSB powered ports. Some POS devices do not comply with this specification, and will not enumerate unless the upper sections of the PoweredUSB ports are active. CyberData Corporation 930232A Operations Guide... - Page 15 3. Plug in a standard USB compliant device, such as a mouse or keyboard. 4. Disable the low-power, standby operation. With this configuration, power is always supplied to the PoweredUSB ports regardless of the PC’s operational state. For more information, contact CyberData as instructed in Appendix C, "Troubleshooting/Technical Support".
-
Page 16: Port Electrical Specifications
If an over current condition occurs, unplug the DC connection, remove the overcurrent condition, and re-cycle the DC connection to the Hub by unplugging it, and then plugging it in again. +12V Ports (3) – 1.5A each ● CyberData Corporation 930232A Operations Guide... -
Page 17: Appendix A Regulatory And Safety Information
• EN61000-3-2: 2000 • EN61000-3-3: 1995 EN55024: 1998 ● • EN61000-4-2: 1995 • EN 61000-4-3:1996 • EN 61000-4-4: 1995 • EN 61000-4-5: 1995 • EN 61000-4-6: 1996 • EN 61000-4-8: 1993 • EN 61000-4-11: 1995 Operations Guide 930232A CyberData Corporation... - Page 18 CyberData Corporation 930232A Operations Guide...
-
Page 19: Appendix B Setting Up The Hub On Windows Xp
At this point, you should be able to plug in and install a USB device provided you have also installed its drivers, or have them available for installation. Operations Guide 930232A CyberData Corporation... - Page 20 CyberData Corporation 930232A Operations Guide...
-
Page 21: Appendix C Troubleshooting/Technical Support
Phone: 831-373-2601, Extension 136 Email: RMA@CyberData.net When returning a product to CyberData, an approved CyberData RMA number must be printed on the outside of the original shipping package. No product will be accepted for return without an approved RMA number. Send the product, in its original package, to the following address:... -
Page 22: Warranty
CyberData warrants its product against defects in material or workmanship for a period of two years from the date of purchase. Should the product fail within the warranty period, CyberData will repair or replace the product free of charge. This warranty includes all parts and labor. -
Page 23: Index
3 connector color keys 7 license 1 CyberData license with IBM 1 CyberData contact information, corporate, sales, tech support, service 17 Microsoft XP Service Pack 1 15 DC input jacks 5 Dell printer power supply 5 over current protection 1... - Page 24 IP address to the default 17 RMA returned materials authorization 17 short circuit protection 1 technical support, contact information 17 2.0 specification 10 over current 12 warranty 1, 18 Windows XP 11, 15 CyberData Corporation 930232A Operations Guide...
