The IP Endpoint Company
Parts List
●
Operation Guide
●
Dimensions
Features
●
●
●
●
LEDs
PSE-1 Power ON (yellow)
Quick Reference

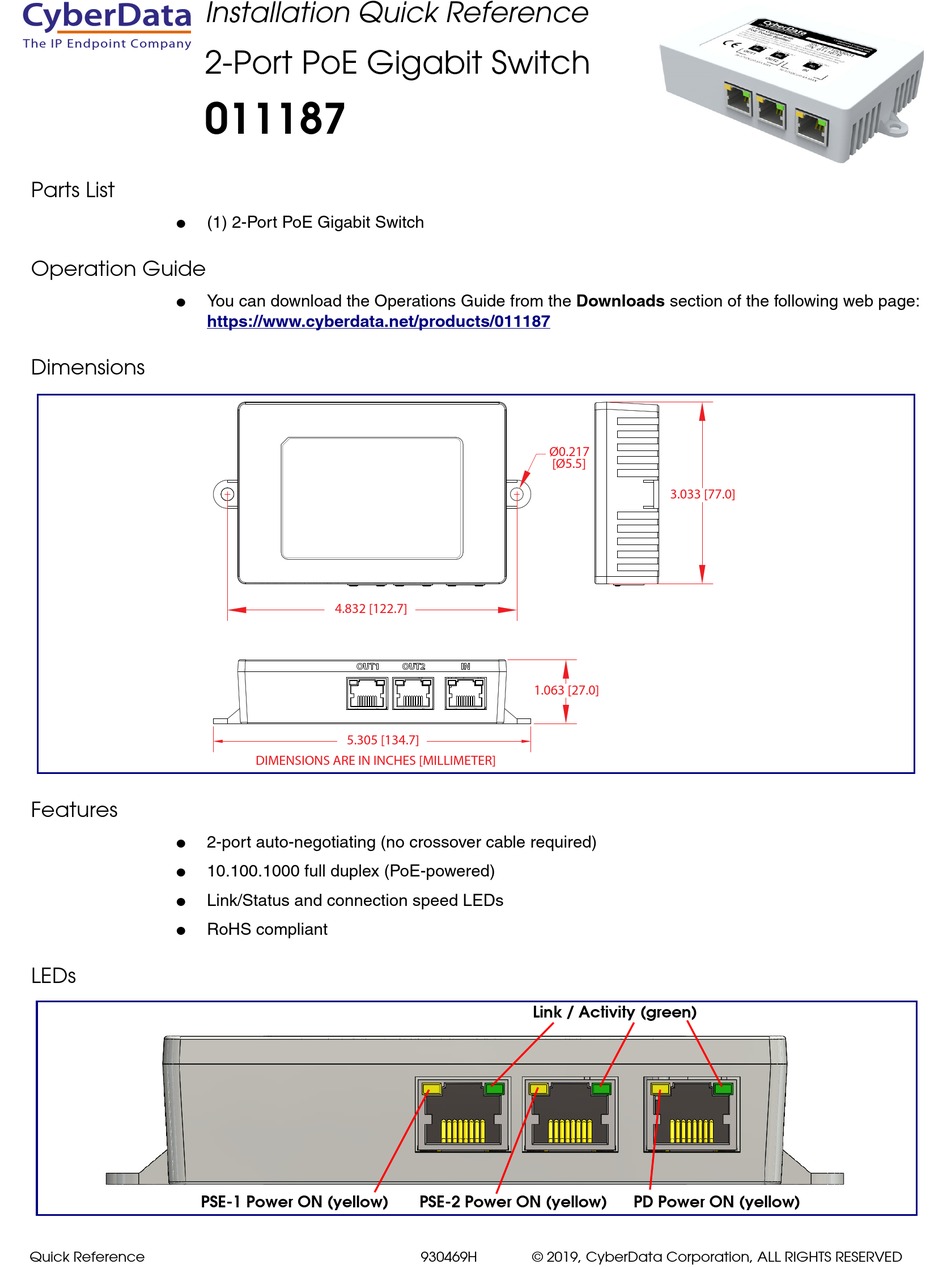

Installation Quick Reference

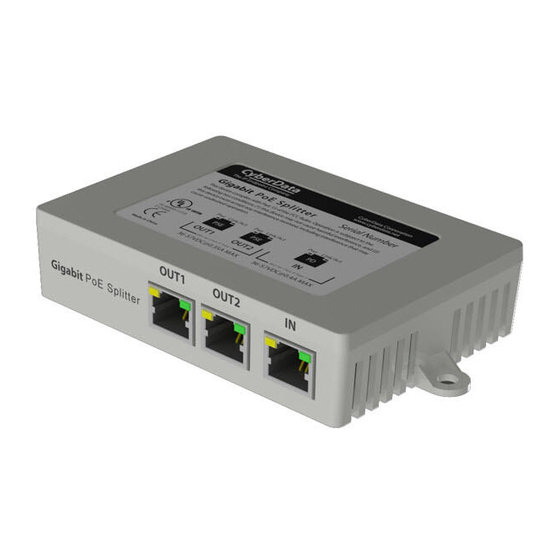

2-Port PoE Gigabit Switch
011187
(1) 2-Port PoE Gigabit Switch
You can download the Operations Guide from the Downloads section of the following web page:
https://www.cyberdata.net/products/011187
PSE
4.832 [122.7]
5.305 [134.7]
DIMENSIONS ARE IN INCHES [MILLIMETER]
2-port auto-negotiating (no crossover cable required)
10.100.1000 full duplex (PoE-powered)
Link/Status and connection speed LEDs
RoHS compliant
CyberData Corporation
Ø0.217
www.cyberdata.net
[Ø5.5]
PSE
PD
1.063 [27.0]
Link / Activity (green)
PSE-2 Power ON (yellow)
930469H
© 2019, CyberData Corporation, ALL RIGHTS RESERVED
3.033 [77.0]
PD Power ON (yellow)
