CyberData 11187 Installation Quick Reference

Cyberdata 2-port poe gigabit switch installation quick reference

Hide thumbs Also See for 11187:

Download this manual See also: Operating Manual

The IP Endpoint Company

Parts List

●

Operation Guide

●

Dimensions

Features

●

LEDs

PSE-1 Power ON (yellow)

Quick Reference

Installation Quick Reference

2-Port PoE Gigabit Switch

011187

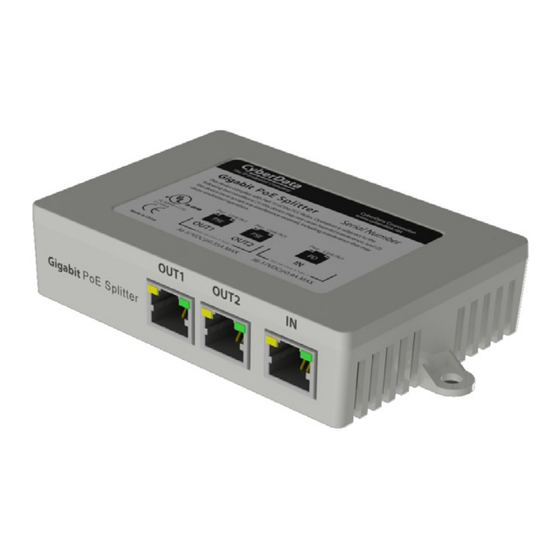

(1) 2-Port PoE Gigabit Switch

You can download the Operation Guide from the following web page:

http://www.cyberdata.net/products/retail/networking/2portgigabitswitch/docs.html

4.832 [122.7]

5.305 [134.7]

DIMENSIONS ARE IN INCHES [MILLIMETER]

2-port auto-negotiating (no crossover cable required)

10.100.1000 full duplex (PoE-powered)

Link/Status and connection speed LEDs

RoHS compliant



ø0.217 [ø5.5]

1.063 [27.0]

Link / Activity (green)

PSE-2 Power ON (yellow)

930469F

PD Power ON (yellow)

Page 1 10.100.1000 full duplex (PoE-powered) ● Link/Status and connection speed LEDs ● RoHS compliant ● LEDs Link / Activity (green) PSE-1 Power ON (yellow) PSE-2 Power ON (yellow) PD Power ON (yellow) Quick Reference 930469F © 2013, CyberData Corporation, ALL RIGHTS RESERVED...
Page 2 3 Justin Court RMA Dept: (831) 373-2601 ext. 136 Monterey, CA 93940, USA Email: RMA@CyberData.net  RMA Status: http://www.cyberdata.net/support/rmastatus.html Phone: 831-373-2601 Fax: 831-373-4193 Warranty information is available at: www.CyberData.net Web: http://www.cyberdata.net/support/warranty/index.html © 2013, CyberData Corporation, ALL RIGHTS RESERVED 930469F Quick Reference...
