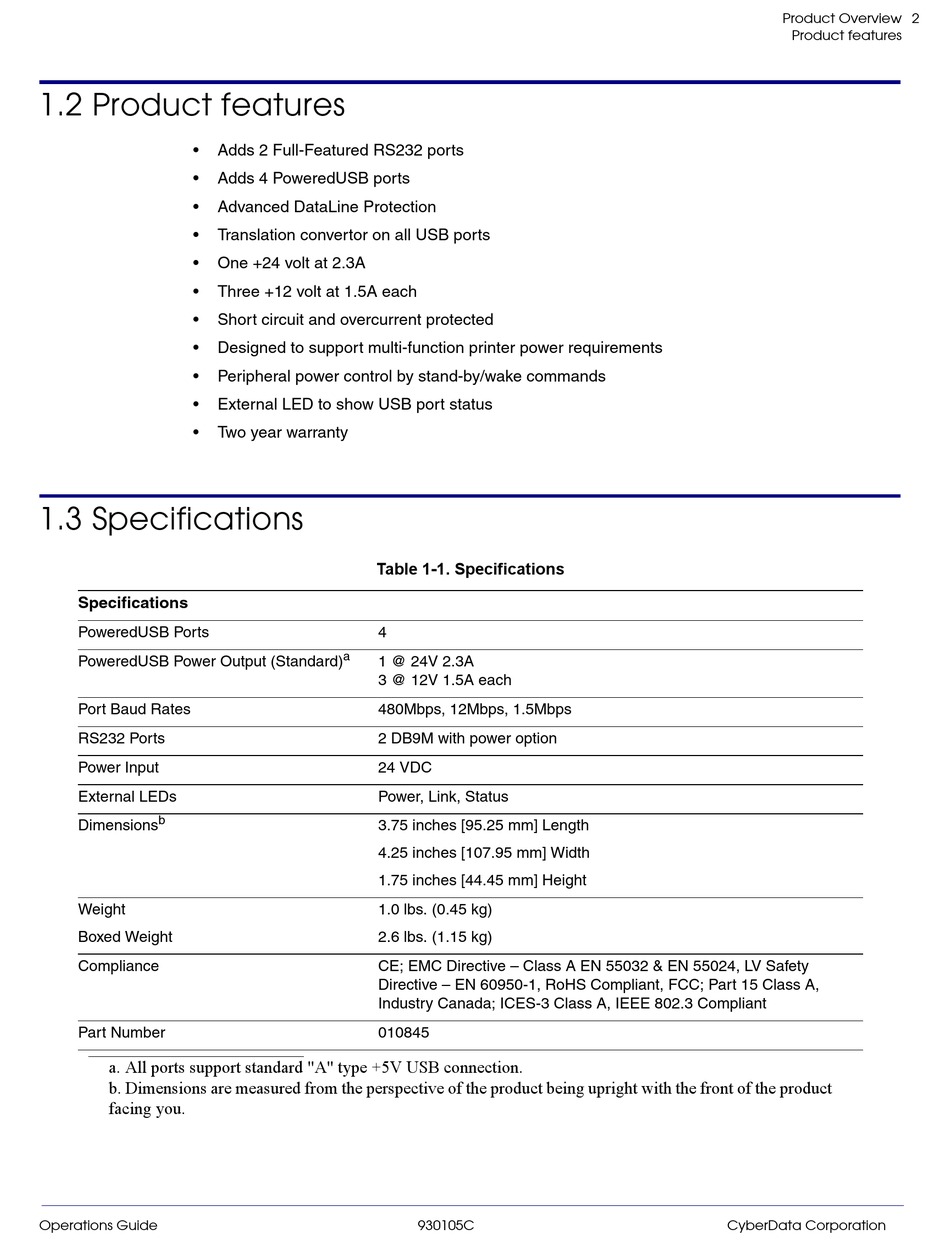

1.2 Product features

•
•
•
•
•
•
•
•
•
•
•

1.3 Specifications

Specifications
PoweredUSB Ports
PoweredUSB Power Output (Standard)
Port Baud Rates
RS232 Ports
Power Input
External LEDs
b
Dimensions
Weight
Boxed Weight
Compliance
Part Number
a. All ports support standard "A" type +5V USB connection.
b. Dimensions are measured from the perspective of the product being upright with the front of the product
facing you.
Operations Guide
Adds 2 Full-Featured RS232 ports
Adds 4 PoweredUSB ports
Advanced DataLine Protection
Translation convertor on all USB ports
One +24 volt at 2.3A
Three +12 volt at 1.5A each
Short circuit and overcurrent protected
Designed to support multi-function printer power requirements
Peripheral power control by stand-by/wake commands
External LED to show USB port status
Two year warranty
Table 1-1. Specifications
4
a
1 @ 24V 2.3A
3 @ 12V 1.5A each
480Mbps, 12Mbps, 1.5Mbps
2 DB9M with power option
24 VDC
Power, Link, Status
3.75 inches [95.25 mm] Length
4.25 inches [107.95 mm] Width
1.75 inches [44.45 mm] Height
1.0 lbs. (0.45 kg)
2.6 lbs. (1.15 kg)
CE; EMC Directive – Class A EN 55032 & EN 55024, LV Safety
Directive – EN 60950-1, RoHS Compliant, FCC; Part 15 Class A,
Industry Canada; ICES-3 Class A, IEEE 802.3 Compliant
010845
930105C
