Connector color keys

The PoweredUSB connectors are color keyed so that only the correct voltage cables can be installed.

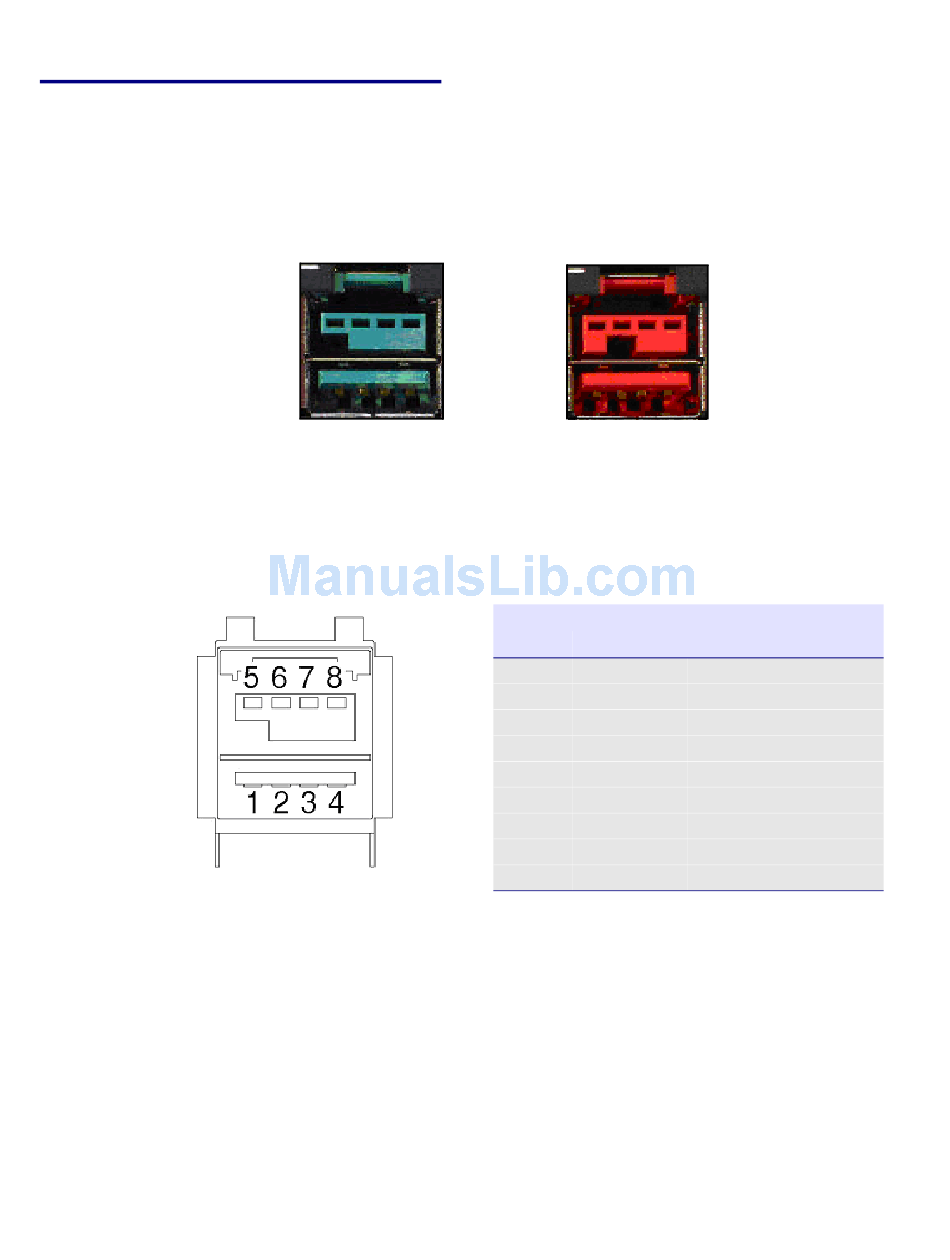

Figure 7: Color-coding for Connectors
Figure 8: USB PoweredUSB Socket Connector Pin Assignments
4-Port PoweredUSB 2.0 Hub with Dell Retail Integrator Kit 010776A
Teal
12 Volt Keyed
1.5A each
Ports 1,2, and 3
Chapter 1 Installing and using the Hub
Red
24 Volt Keyed
2.3A
Ports 4
PIN OUT
Pin Signal Description
1 Vbus
2 D-
3 D+
4 Ground
5 Ground
6 Vplus
7 Vplus
8 Ground
Shell Shield
CyberData Corporation Rev C 2/06
Connections
USB standard "A"
USB standard "A"
USB standard "A"
USB standard "A"
USB PlusPower
USB PlusPower
USB PlusPower
USB PlusPower
