CyberData 010845 Operation Manual page 17

Figure
Figure 2-8
Figure 2-9
Figure 2-10
Figure 2-11
Figure 2-12
Figure 2-13
Figure 2-14

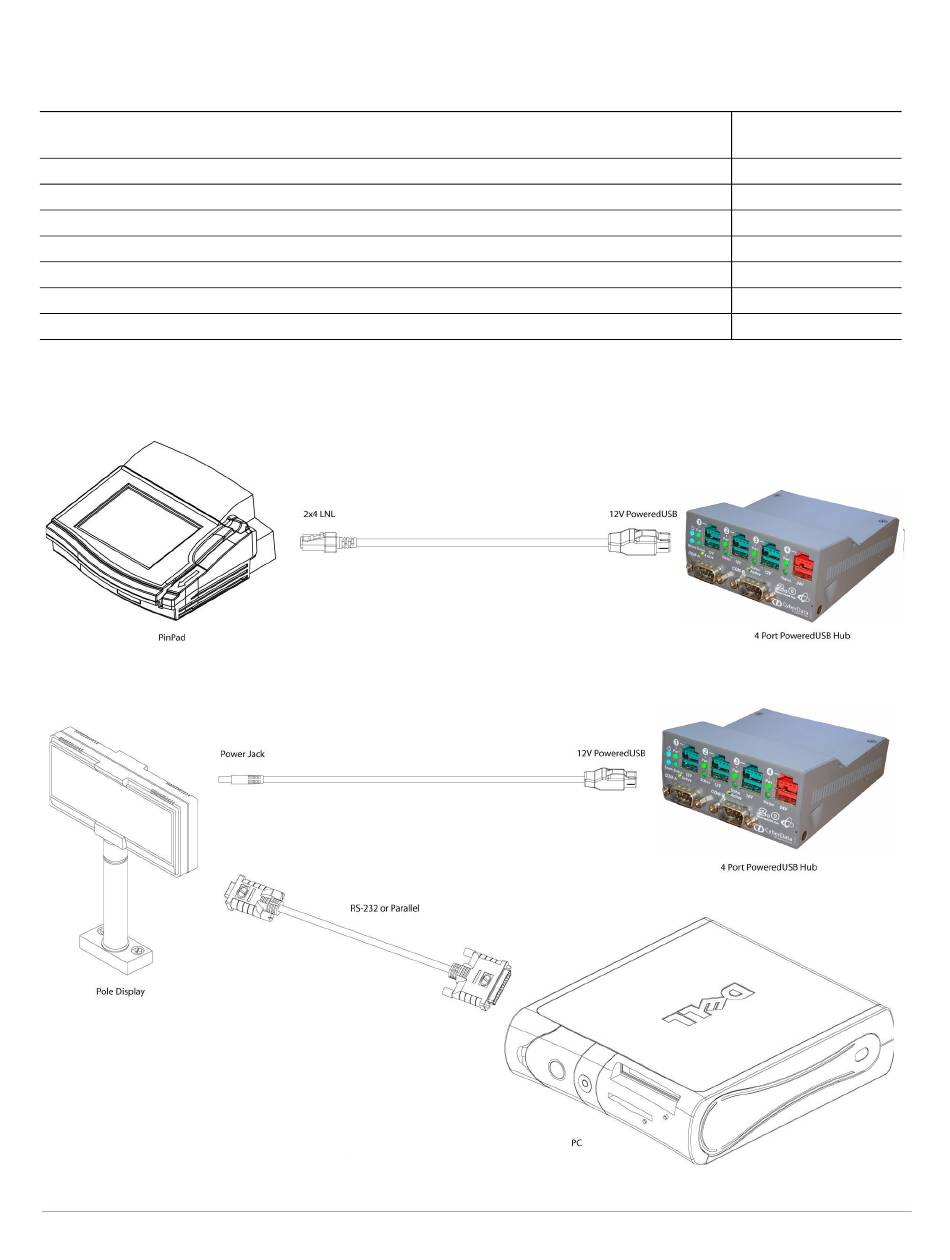

Figure 2-9. Cables; +12V PoweredUSB to +12V Power Jack and RS-232 to RS-232
Operations Guide
CyberData PoweredUSB Cables
PoweredUSB Cable Description
12V to 2x4
12V to 12V Power Jack
24V PoweredUSB to 3-Pin Power Mini-DIN
24V to "Y" Cable 3-Pin Power Mini-DIN to USB "B"
12V to "Y" Cable, RS232 and Power Jack
24V to 1x8
24V to "Y" Cable, RS232 and Power Jack
Figure 2-8. Cable, +12V PoweredUSB to 2x4 PoweredUSB
930105E
Installing and Using the 4-Port PoweredUSB Hub
CyberData Part
Number
010693C
Contact CyberData
010631A
010714A
010763
010617A
CyberData Corporation
11
Connections
