CyberData PoweredUSB Hub Specification Sheet

PoweredUSB Hub

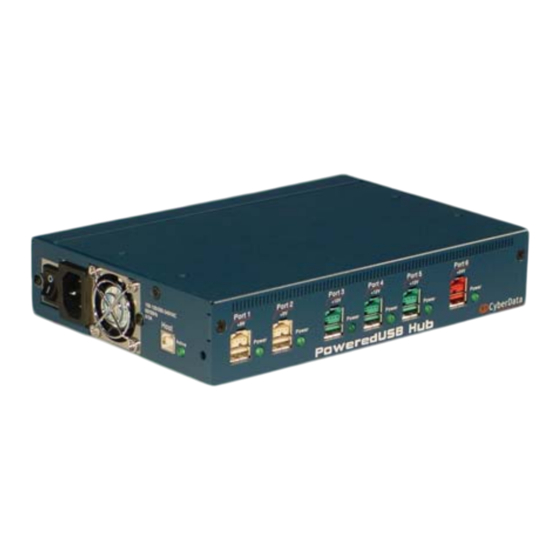

The CyberData PoweredUSB
External Hub provides a simple and
affordable way to add up to six
PoweredUSB ports to a standard PC.
With this Plug-N-Play upgrade, it is
easy to connect devices that require
more than the normal 500mA of +5
volts that is normally supplied by a
standard USB interface.
Features
Adds 6 PoweredUSB ports
One +24 volt at 2A for POS printer
Three +12 volt at 1A each
Two +5 volt at 1A each
Short circuit and overcurrent protected
No external power supply required
Designed to support Epson multi-function
printer power requirements
Complies with the RoHS Directive
Power Supply
Wide-ranging AC input voltage
90VAC to 260VAC, 60/50Hz input
Compatibility
Windows 2000, XP, WePOS, Vista
MAC and Linux
USB Standard 1.1 "Powered Hub"
CyberData Corporation
CyberData Corporation 2555 Garden Road
(831) 373-2601 (831) 373-4193 www.cyberdata.net
CyberData Corporation
Powered ports respond to PC suspend mode
Plug-N-Play installation
Hot-pluggable PoweredUSB ports
External LED to show port power output status
Two year warranty
PoweredUSB External Hub Specifications
USB Ports
Power Output*
(Standard)
Port Baud Rates
External LEDs
AC Voltage
Boot Up Default
Regulatory Compliance
Warranty
Part Number
*All ports support standard "A" type +5V USB connection.
Monterey, California 93940
6
1 @ 24v 2A
3 @ 12v 1A
2 @ 5v 1A
12Mbps, 1.5Mbps
Power output status
90 VAC to 260 VAC 60/50 Hz
No power to ports
FCC Class A, UL 60950, CE
2 years limited
010630
070215
