799000127 / Rev. 3 / 2019-02-11
Translation of the original operating manual
Operating Manual
SERIE EMIX23
Magnetic Linear Encoder with 0.001 mm resolution
Status LED available (see type designation)
Periodically index or reference pulse available (see type designation)
Direct and contactless measurement
Allowed distance between sensor and tape: 0.1 ... 0.8 mm
Measurement lengths theoretically unlimited
Resolution 0.001 mm
Repeat accuracy +/- 1 increment
Very robust against dust and dirt
Speed proportional square wave outputs
Advertisement
Table of Contents
Related Manuals for ELGO Electronic EMIX23 series
Summary of Contents for ELGO Electronic EMIX23 series

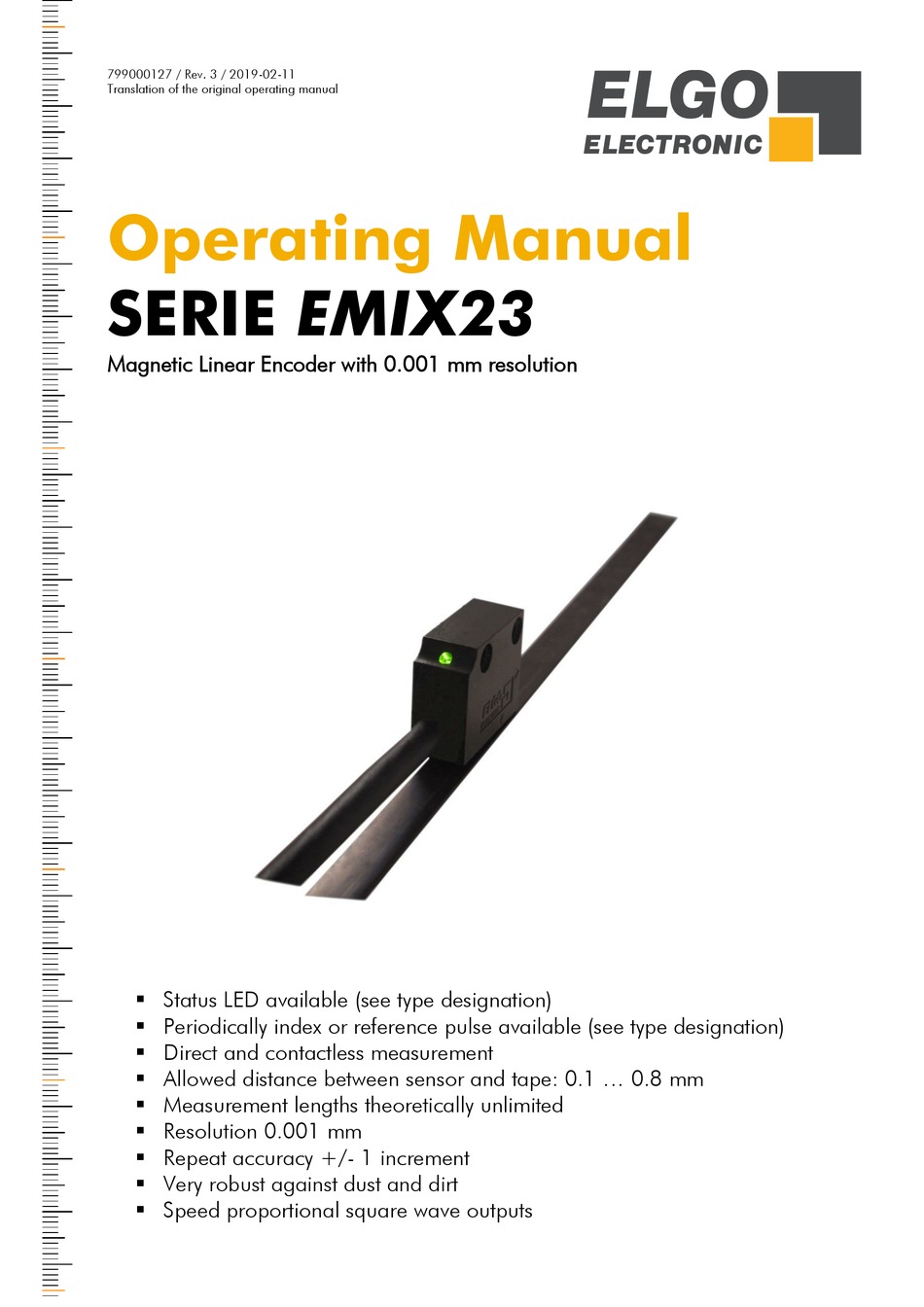

- Page 1 799000127 / Rev. 3 / 2019-02-11 Translation of the original operating manual Operating Manual SERIE EMIX23 Magnetic Linear Encoder with 0.001 mm resolution Status LED available (see type designation) Periodically index or reference pulse available (see type designation) ...
- Page 2 +49 (0) 7731 9339 – 0 +49 (0) 7731 2 13 11 info@elgo.de Document- No. 799000127 Document- Name EMIX23-000-MA-E_07-19 Document- Revision Rev. 3 Issue Date 2019-02-11 Copyright © 2019, ELGO Electronic GmbH & Co. KG - 2 -...
-
Page 3: Table Of Contents
Contents 1 Contents Contents ........................3 Image Directory ....................... 4 Table Directory ......................4 General, Safety, Transport and Storage ..............5 Information Operating Manual ......................5 Explanation of Symbols ........................5 Statement of Warranties ........................6 Demounting and Disposal ....................... 6 General Causes of Risk........................ -
Page 4: Image Directory
Contents Image Directory Figure 1: Code of the Magnetic Tape ......................8 Figure 2: Pulse Diagram ..........................8 Figure 3: Dimensions Sensor ........................9 Figure 4: Dimensions FBK80 ........................9 Figure 5: Dimensions AFBK80 ......................... 10 Figure 6: Magnetic Tape Structure......................13 Figure 7: Magnetic Tape with Option BK80 .................... -
Page 5: General, Safety, Transport And Storage
