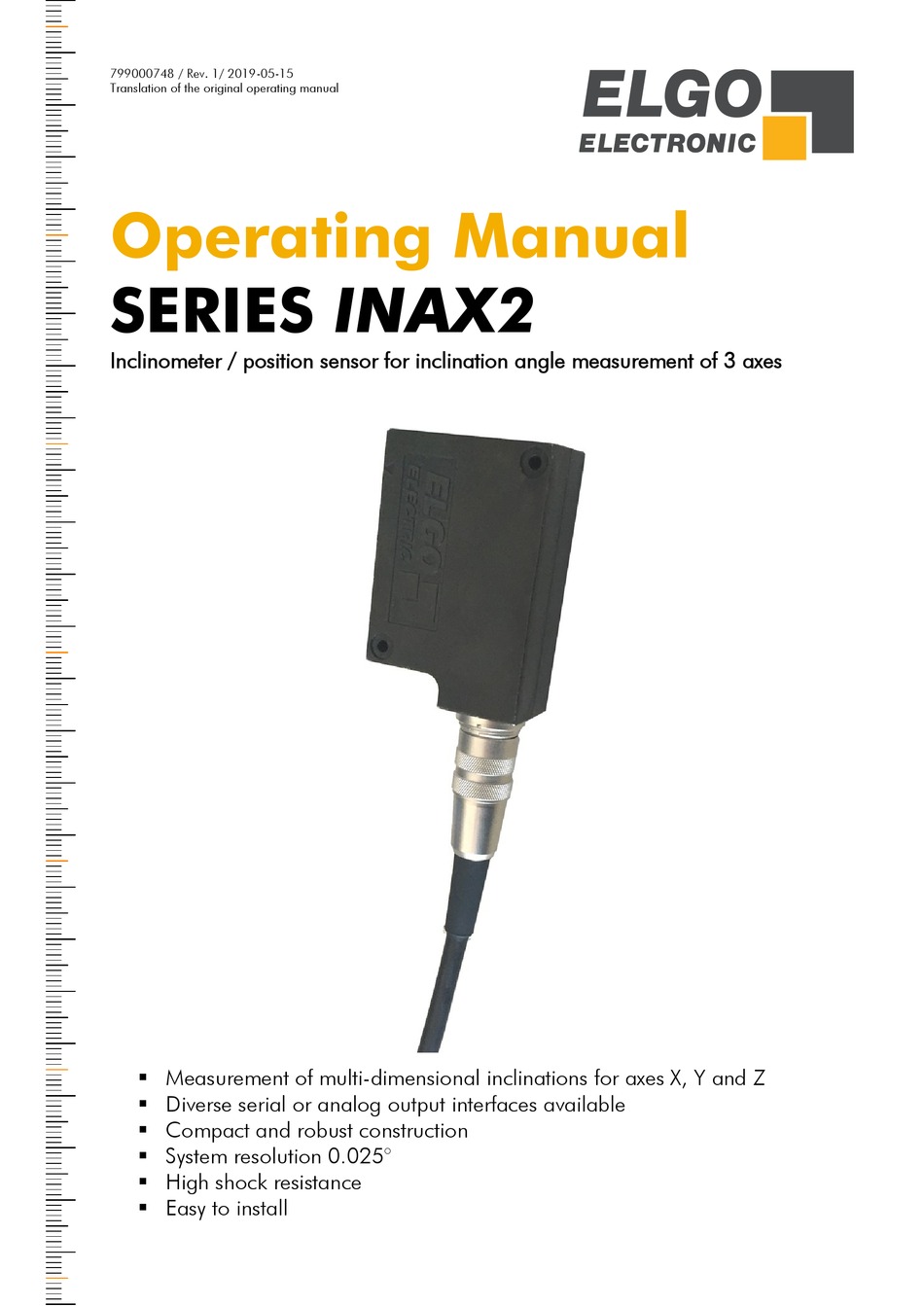

799000748 / Rev. 1/ 2019-05-15
Translation of the original operating manual
Operating Manual
SERIES INAX2

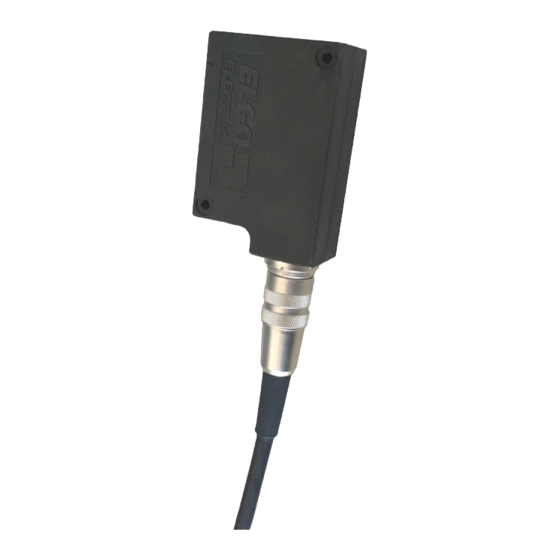

Inclinometer / position sensor for inclination angle measurement of 3 axes
Measurement of multi-dimensional inclinations for axes X, Y and Z
Diverse serial or analog output interfaces available
Compact and robust construction
System resolution 0.025°
High shock resistance
Easy to install
Advertisement
Table of Contents
Related Manuals for ELGO Electronic INAX2 Series
Summary of Contents for ELGO Electronic INAX2 Series
- Page 1 799000748 / Rev. 1/ 2019-05-15 Translation of the original operating manual Operating Manual SERIES INAX2 Inclinometer / position sensor for inclination angle measurement of 3 axes Measurement of multi-dimensional inclinations for axes X, Y and Z Diverse serial or analog output interfaces available ...
- Page 2 +49 (0) 7731 9339 - 0 +49 (0) 7731 2 88 03 info@elgo.de Document- No. 799000748 Document- Name INAX2-00-MA-E_20-19 Document- Revision Rev. 1 Issue Date 2019-05-15 Copyright © 2019, ELGO Electronic GmbH & Co. KG - 2 -...
-
Page 3: Table Of Contents
Contents 1 Contents Contents ..................... 3 General, Safety, Transport and Storage ............ 4 Information Operating Manual ................... 4 Explanation of Symbols ...................... 4 Statement of Warranties ..................... 5 Demounting and Disposal ....................5 General Causes of Risk ..................... 5 Personal Protective Equipment .................... 5 Conventional Use ...................... -
Page 4: General, Safety, Transport And Storage
General, Safety, Transport and Storage 2 General, Safety, Transport and Storage Information Operating Manual This manual contains important information regarding the handling of the device. For your own safety and operational safety, please ob- serve all safety warnings and instructions. Precondition for safe operation is the compliance with the specified safety and handling instruc- tions. -
Page 5: Statement Of Warranties
General, Safety, Transport and Storage Statement of Warranties The producer guarantees the functional capability of the process engineering and the selected parameters. Demounting and Disposal Unless acceptance and disposal of returned goods are agreed upon, demount the device considering the safety instructions of this manual and dispose it with respect to the environment. -
Page 6: Conventional Use
General, Safety, Transport and Storage Conventional Use The product described in this manual was developed to execute safety-related functions as a part of an entire assembly or machine. The device type ELGO position sensor INAX2 only serves to measure angles of inclinations. CAUTION! Danger through non-conventional use! Non-intended use and non-observance of this operating manual can lead to dangerous situations. -
Page 7: Product Features
Product Features 3 Product Features The robust constructed INAX2 inclinometer is able to realize a high precision and reliable inclination angle measurement. Inclinations within a range of ± 180° (Z axis) and ± 90° (X / Y axes) can be measured. With the optionally available protection class of IP67, the sensor is also suited for rough environments. -
Page 8: Inclination Angles And Measuring Ranges Of Axes X/Y/Z
Product Features Inclination angles and measuring ranges of axes X/Y/Z Axis X 0° Range: ± 90° Axis Y 0° Range: ± 90° Axis Z 0° Range: ± 180° Figure 1: Inclination angles and measuring ranges - 8 -... -
Page 9: Technical Data
Technical Data 4 Technical Data Identification The type label serves for the identification of the unit. It is located on the housing of the sensor and gives the exact type designation ( 9) with the corresponding part number. Furthermore, the type label contains a unique, traceable device number. -
Page 10: Technical Data Inax2
Technical Data Technical Data INAX2 Table 1: Technical Data INAX2 INAX2 (standard version) Mechanical Data Measurement principle inclinometrical Housing material zinc die cast Housing dimensions L x W x H = 72 x 48 x 24 mm Max. Measuring range X axis: ±... -
Page 11: Installation And First Start-Up
Installation and First Start-Up 5 Installation and First Start-Up CAUTION Please read the operating manual carefully before using the device! Strictly observe the Installation instructions! In case of damage caused by failure to observe this operating manual, the warranty expires. ELGO is not liable for any secondary damage and for damage to persons, property or assets. -
Page 12: Output Interfaces
Output interfaces 6 Output interfaces CAN open Device profile DS406 24 bit data Bit rate: 250 KB/s Identifier: 184 hex Number of Bytes: 2 bytes per axis LSB first Sequence of axes: x -> y -> z, a total of 6 bytes Transmission every 5 …... -
Page 13: Connections
Connections 7 Connections CANopen Signal cable Function White 0 V / GND Brow + 24 VDC Yellow/violet CAN HIGH Grey/green CAN LOW Screen RS422 Signal cable Function White 0 V / GND Brown + 24 VDC Black Orange TxD/ Screen Analog Signal cable Function... -
Page 14: Disturbances, Maintenance, Cleaning
Disturbances, Maintenance, Cleaning 8 Disturbances, Maintenance, Cleaning This chapter describes possible causes for disturbances and measures for their removal. In case of increased disturbances, please follow the measures for fault clearance in chapter 8.1. In case of disturbances that cannot be eliminated by following the advice and the fault clear- ance measures given here, please contact the manufacturer (see second page). -
Page 15: Maintenance
Disturbances, Maintenance, Cleaning Maintenance The device is maintenance-free. Cleaning WARNING! The device can only be cleaned with a damp cloth, do not use aggressive cleanser! - 15 -... -
Page 16: Type Designation
Type Designation 9 Type Designation INAX2 DDDD FFFF Series/Type: INAX2 SN-Number: ELGO standard version 1st special version, ect. Signal cable (lenght in dm): = 30 dm (≥ 3,0 meters) Resolution: = 0,025° Interface: CAO0 CANopen (DS406) 4220 RS422 V10X Analog output 0 … 10 V (X axis) V10Y Analog output 0 …... - Page 17 Notes: - 17 -...
- Page 18 Notes: - 18 -...
-
Page 19: Index
Index 10 Index Accident prevention regulations......4 Operating area ..........11 Analog............12 Operational safety ..........4 CAN open ............12 Order reference ..........9 Causes of risk ............ 5 Packaging material ..........6 Cleaning ........... 14, 15 Product Features ..........7 Demounting ............ - Page 20 Document- No.: 799000748 / Rev. 1 ELGO Electronic GmbH & Co. KG Measuring | Positioning | Control Document- Name: INAX2-00-MA-E_20-19 Carl - Benz - Str. 1, D-78239 Rielasingen Subject to change - © 2019 Fon:+49 (0) 7731 9339-0, Fax:+49 (0) 7731 28803 Internet: www.elgo.de, Mail: info@elgo.de...
