799000881 / Rev. 0 / 2019-05-29
Translation of the original operating manual

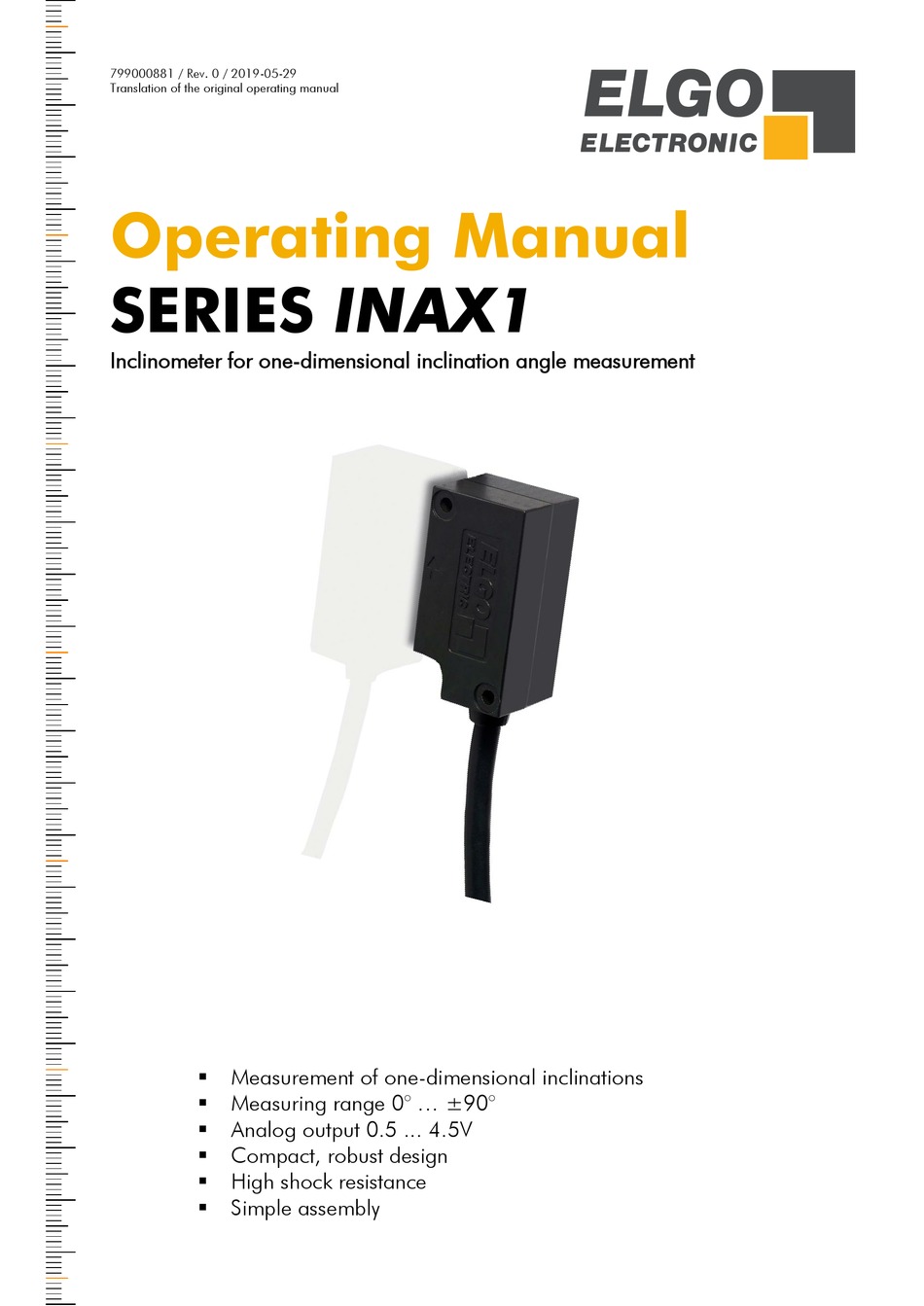

Operating Manual
SERIES INAX1
Inclinometer for one-dimensional inclination angle measurement
Measurement of one-dimensional inclinations
Measuring range 0° ... ±90°
Analog output 0.5 ... 4.5V
Compact, robust design
High shock resistance
Simple assembly
Advertisement
Table of Contents
Related Manuals for ELGO Electronic INAX1 Series
Summary of Contents for ELGO Electronic INAX1 Series
- Page 1 799000881 / Rev. 0 / 2019-05-29 Translation of the original operating manual Operating Manual SERIES INAX1 Inclinometer for one-dimensional inclination angle measurement Measurement of one-dimensional inclinations Measuring range 0° … ±90° Analog output 0.5 ... 4.5V Compact, robust design ...
- Page 2 +49 (0) 7731 9339 - 0 +49 (0) 7731 2 88 03 info@elgo.de Document- No. 799000881 Document- Name INAX1-00-MA-E_22-19 Document- Revision Rev. 0 Issue Date 2019-05-29 Copyright © 2019, ELGO Electronic GmbH & Co. KG - 2 -...
-
Page 3: Table Of Contents
Contents 1 Contents Contents ..................... 3 General, Safety, Transport and Storage ........... 4 Information Operating Manual ................4 Explanation of Symbols ..................4 Statement of Warranties ..................5 Demounting and Disposal ..................5 General Causes of Risk ..................5 Personal Protective Equipment ................5 Conventional Use .................... -
Page 4: General, Safety, Transport And Storage
General, Safety, Transport and Storage 2 General, Safety, Transport and Storage 2.1 Information Operating Manual This manual contains important information regarding the handling of the device. For your own safety and operational safety, please ob- serve all safety warnings and instructions. Precondition for safe operation is the compliance with the specified safety and handling instruc- tions. -
Page 5: Statement Of Warranties
General, Safety, Transport and Storage Statement of Warranties The producer guarantees the functional capability of the process engineering and the selected parameters. Demounting and Disposal Unless acceptance and disposal of returned goods are agreed upon, demount the device considering the safety instructions of this manual and dispose it with respect to the environment. -
Page 6: Conventional Use
General, Safety, Transport and Storage Conventional Use The ELGO-device is only conceived for the conventional use described in this manual. The INAX1 inclinometer only serves to measure inclination angles. CAUTION! Danger through non-conventional use! Non-intended use and non-observance of this operating manual can lead to dangerous situations. Therefore: Only use the device as described ... -
Page 7: Product Features
Product Features 3 Product Features The INAX1 series is an inclinometer for inclination angle measurement. The sensor system and evaluation electronics are placed in the same housing. The INAX1 inclinometer offers decisive advantages: Measurement of one-dimensional inclinations Measuring range 0° to ±90°... -
Page 8: Technical Data
Technical Data 4 Technical Data Identification The type label serves for the identification of the unit. It is located on the housing of the device and indicates the exact type designation (=order reference 8) with the corresponding part number. Furthermore, the type label contains a unique, traceable device number. -
Page 9: Technical Data Sensor
Technical Data Technical Data Sensor INAX1 (standard version) Mechanical Data Measuring principle absolute - inclinometrical System accuracy at 20°C ± 7 % (in a range of ± 70°) Sensor housing material zinc die cast Sensor housing dimensions L x W x H = 56 x 24 x 26 mm (see 4.2) ±... -
Page 10: Installation And First Start-Up
Installation and First Start-Up 5 Installation and First Start-Up CAUTION: Please read the operating manual carefully before using the device! Strictly observe the Installation instructions! In case of damage caused by failure to observe this operating manual, the warranty expires. ELGO is not liable for any secondary damage and for damage to persons, property or assets. -
Page 11: Installation And Alignment Of The Sensor
Installation and First Start-Up Installation and Alignment of the Sensor The sensor head has two Ø 3.3 mm holes which are provided for screwing with M3 screws of suitable length (see also 4.2 Dimensions Sensor). 0° Figure 3: Alignment of the Sensor Connections Signal Cable Function... -
Page 12: Output Interface
Output Interface 6 Output Interface An analog signal from 0.5 V … 4.5 V is available as output interface: 4.5 V 2.25 V 90° 0° +90° Figure 4: Analog Output Signal - 12 -... -
Page 13: Disturbances, Maintenance, Cleaning
Disturbances, Maintenance, Cleaning 7 Disturbances, Maintenance, Cleaning This chapter describes possible causes for disturbances and measures for their removal. In case of increased disturbances, please follow the measures for fault clearance in chapter 7.1. In case of disturbances that cannot be eliminated by following the advice and the fault clear- ance measures given here, please contact the manufacturer (see second page). -
Page 14: Type Designation
Type Designation 8 Type Designation INAX1 1500 V045 Series/Type: Single Axis Inclinometer Version: = standard version = first special version etc. Signal Cable Length: 020 = 2.0 m (standard) Axes: 1500 = 1 axis Interface: V045 = analog output 0.5 … 4.5 V Power Supply Voltage: = 24 VDC = 5 VDC... -
Page 15: Index
Index 9 Index Accident prevention regulations......4 Operating area ..........10 and Alignment of the Sensor ......11 Operational safety ..........4 Causes of risk ............ 5 Order reference ..........8 Cleaning ............13 Output Interface ..........12 Connections ............ 11 Packaging material .......... - Page 16 Document- No.: 799000881 / Rev. 0 ELGO Electronic GmbH & Co. KG Measuring | Positioning | Control Document- Name: INAX1-00-MA-E_22-19 Carl - Benz - Str. 1, D-78239 Rielasingen Subject to change - © 2019 Fon:+49 (0) 7731 9339-0, Fax:+49 (0) 7731 28803 Internet: www.elgo.de, Mail: info@elgo.de...
