FLYEGG100 V2 PNP
NO RX
FM800
Name
Flytower20*20(V2)
Receiver
VTX
Input Voltage
Camera
Weight
(not include battery&receiver)
Wheelbase
Motor
Battery
Prop
Instruction Manual
FLYEGG 130 V2 PNP
DSM2
FLYEGG100 V2
F3+OSD FC+4in1 ESC 12A BLHeliS
FM800,RX2A PRO,DSM2,AC900(S-FHSS+D16)
Q100(25mW/100mW 16CH)
2S
。
OV231(800TVL 150
NTSC)
64.8g
100mm
XT1103-7800KV
7.4V 450mAh 80C(JST)
1935
RX2A PRO
FLYEGG130 V2
77.1g
130mm
XT1104-7500KV
7.4V 550mAh 80C(JST)
2345
FPVEGG V2 PNP
AC900(S-FHSS+D16)
FPVEGG V2
Micro Swift 1(2.1mm)
85g
136mm
XT1104-7500KV
7.4V 550mAh 80C(JST)
2840
180723
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LDARC FLYEGG100 V2
Summary of Contents for LDARC FLYEGG100 V2

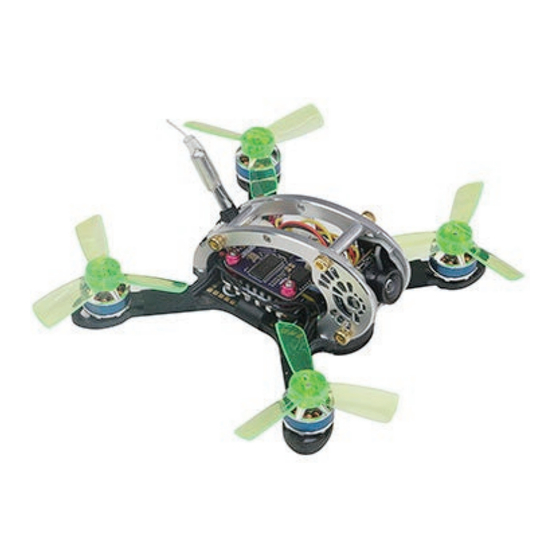

- Page 1 Instruction Manual FLYEGG100 V2 PNP FLYEGG 130 V2 PNP FPVEGG V2 PNP NO RX FM800 DSM2 RX2A PRO AC900(S-FHSS+D16) Name FLYEGG100 V2 FLYEGG130 V2 FPVEGG V2 Flytower20*20(V2) F3+OSD FC+4in1 ESC 12A BLHeliS Receiver FM800,RX2A PRO,DSM2,AC900(S-FHSS+D16) Q100(25mW/100mW 16CH) Input Voltage 。...
- Page 2 F3+OSD 4in1 12A BLheliS VTX：Q100(25mW/100mW 16CH) 。 Camera：OV231(800TVL 150 Motor：XT1103-7800KV Prop：1935 Battery：7.4V 450mAh 80C Weight：64.8g(not include battery and receiver) Receiver：AC900(S-FHSS+D16),FM800, RX2A PRO,DSM2 FLYEGG100 V2 Package List 1935 Prop*4Pairs Protective cover*4 Battery*1 PNP*1 (color random) Unloading Motor protective Rubber×２ paddle*1 seat*4...
- Page 3 FLYEGG130 V2 Configuration FLYEGG130 V2 Wheelbase：130mm Flytower 20*20(V2)： F3+OSD 4in1 12A BLheliS VTX：Q100(25mW/100mW 16CH) 。 Camera：OV231(800TVL 150 Motor：XT1104-7500KV Prop：2840 Battery：7.4V 550mAh 80C Weight：77.1g(not include battery and receiver) Receiver：AC900(S-FHSS+D16),FM800, RX2A PRO,DSM2 FLYEGG130 V2 Package List 2840 Prop*4Pairs Protective cover*4 Battery*1 PNP*1 (color random) Unloading Motor protective...
- Page 4 FPVEGG V2 Configuration FPVEGG V2 Wheelbase：136mm Flytower 20*20(V2)： F3+OSD 4in1 12A BLheliS VTX：Q100(25mW/100mW 16CH) Camera：Micro Swift 1(2.1mm) 。 (600TVL CCD 160 NTSC) Motor：XT1104-7500KV Prop：2840 Battery：7.4V 550mAh 80C Weight：85g(not include battery and receiver) Receiver：AC900(S-FHSS+D16),FM800, RX2A PRO,DSM2 FPVEGG V2 Package List 2840 Prop*4Pairs Protective cover*4 Battery*1 PNP*1...
- Page 5 4.0V VIN GND VIDEO Click the key change frequency point LED Frequency table 25mW 100mW Q100-Mini 25mW/100mW 16CH VTX (2S-4S Lipo 7V-18V) 2S-4S Lipo Antenna 7V-18V L=28mm,W=11mm,Weight=2.5g(Without camera and wire) Please attention ventilation cooling BETAFLIGHT SBUS PPM SPEK(DSMX) 5V(BUZZER+) LED STRIP Connect these 3 pads to BUZZER- VTX when use 2layer...
- Page 6 Receiver Bind AC900(S-FHSS+D16) bind,transmitter(FRSKY X9D/Futaba T18SZ) Bind:Check receiver mode before bind,the first blink after power on indicate the setting, is S-FHSS, is D16 FUTABA S-FHSS BIND:Turn on the TX then power on AC900 while pressing the key, green LED fast blink meaning already in bind mode, user can release the key.
- Page 8 Camera FLYEGG V2 1.Assemble the camera 2.Determine angle. 3.Fixed camera. seat. FPVEGG V2 Camera：RunCam Micro Swift 1 Image Sensor：1/3”SONY SUPER HAD 2 CCD Signal System：NTSC Custom camera angle...
-
Page 9: Firmware Update
Firmware update BETAFLIGHT firmware allready flash before leave the factory,user just need connect PC to adjust the parameter. 1.Open betaflight configuration ,then click ,select FW version OMNIBUS 3.1.7-OMNIBUS -10-04-2017 18:36(stable) 2.Click ,then click to download FW to FC, click after FW Connect updating finish into setting menu 3.Calibration“Calibrate Accelerometer”... - Page 10 6.PID setting 7.Default setting of receiver is 5th channel ARM(AUX1),6th channel mode switching(AUX2)
-
Page 11: After-Sale Service
Product and Factory Code Factory Code Part Name Factory Code FLYEGG100 V2 Name PNP.FLYEGG100 V2.NO RX XT1103-7800KV MOTOR.XT1103-7800KV FLYEGG100 V2 PNP NO RX PNP.FLYEGG100 V2.AC900 XT1104-7500KV MOTOR.XT1104-7500KV FLYEGG100 V2 PNP AC900 PNP.FLYEGG100 V2.FM800 Flytower20*20(V2) FLYTOWER.20*20(V2) FLYEGG100 V2 PNP FM800 PNP.FLYEGG100 V2.RX2A PRO 4in1 ESC 12A(KKTower Part) ESC.KK TOWER 12A...
