Version 210420

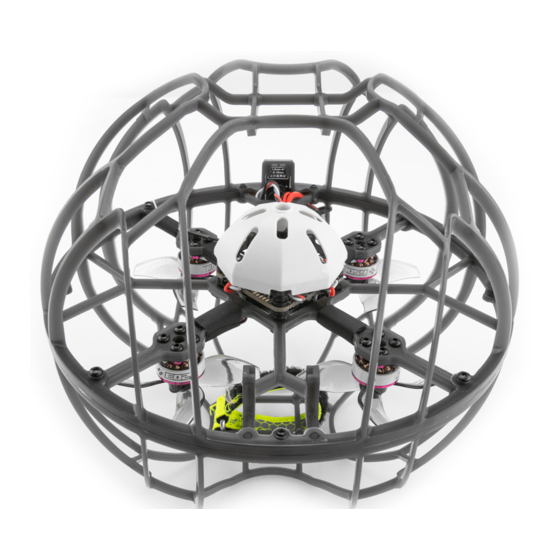

FB156 FLYBALL MANUAL
The company will not be responsible for any changes in the product, nor
can we actively inform consumers of any updates or changes. If there is
any change in the material, specification or contents of package, please
refer to LDARC.com!
This product is suitable for people aged 14 and above.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LDARC FB156
Summary of Contents for LDARC FB156
- Page 1 Version 210420 FB156 FLYBALL MANUAL The company will not be responsible for any changes in the product, nor can we actively inform consumers of any updates or changes. If there is any change in the material, specification or contents of package, please refer to LDARC.com!
-
Page 2: Parameter Configuration
Version 210420 【Parameter configuration】 Wheelbase：87.5mm Outer diameter：156mm Motor：MISS 1203-6500KV Propeller：GF2020-4blades Receiver：NO RX/RX2A/AC900（optional） FPV version weight：91g（without battery） Racer version weight：79.7g（without battery） FC+ESC：MR26-AIO-F411E25A VTX+Camera：TINY ROCKET VTX+Nano2（only included in FPV version） Battery：11.1V 600mAh（only included in RTF version） 【Remarks】 1. Racer version is for visual flight 2. -
Page 3: Packing List
Version 210420 【Packing List】 1. Racer version：PNP*1 2. FPV version：PNP*1（added VTX and camera） 3. RTF version：PNP*1+X6*1+battery*1+RX2A receiver*1+handbag*1 【Racer version】 【FPV version】 【RTF version】 【Transmitter】 The green LED light always on indicates DISARM, and the red LED light always on indicates ARM. Click "Button 5"... -
Page 4: Battery Description
Version 210420 【Receiver wire definition】 White is S.BUS signal line, red is 5V, black is GND 【Battery description】 Please fix the balance head with rubber band first, and then put the battery upright. - Page 5 Version 210420 【FC】 FC target：LDARCF411 ESC target：g_H_30 Ammeter：100/0...
- Page 6 Version 210420 【BETAFLIGHT setting】 【OSD Setting Interface】 Center the throttle stick and push to the left, meanwhile pull up the pitch stick to enter the OSD setting interface; push the pitch stick up or down to select menu, and center the roll stick is to enter the submenu.
- Page 7 Version 210420 【Receiver】 1. Wires to S.BUS receiver is soldered by default: white is the S.BUS signal wire, red is 5V, and black is GND. 2. For other types of receivers, please refer to the instructions to properly solder their connecting wires.
- Page 8 Version 210420 【TINY ROCKET VTX】 For the VTX manual and the VTX list file needed for FC, please click or scan the code to access: http://note.youdao.com/groupshare/?token=27F0934E04124951BF7AE6 7978046E5A&gid=119274086...
-
Page 9: Motor Direction
Version 210420 【Motor direction】 Pay attention to the direction of rotation of the motor and install the propellers correctly 【Installation diagram】 M2 self-tightening nut Canopy Bracket M2 shock absorbing ball Frame Carbon plate M2*18 Hex socket screw... - Page 10 Carbon plate Motor Propeller M2*6 screw PA1.5*9 M2*9 screw 【Product and Factory Code】 Name Code FB156 PNP Red Team L01 0015 FB156 PNP Blue Team L01 0016 FB156 RTF Red Team L01 0018 FB156 RTF Blue Team L01 0019 FB156 KIT...
-
Page 11: After-Sales Service
Version 210420 FB156 Red LED L05 0008 FB156 Blue LED L05 0009 GF2020-4baldes L08 0003 Handbag R11 L05 0010 Nano2 Camera CAM.Nano2 11.1V 600mAh Battery BAT.11.1V 600MAH 50C MISS 1203-6500KV 04 0006 MR26-AIO-F411E25A 03 0001 TINY ROCKET VTX 03 0002 【After-sales service】... - Page 12 Version 210420 Camera definition is good VTX quality is good Packing report Airframe Transmitter Airframe matches the transmitter ID Airframe parts are fully installed Heat shrinkable tube encapsulated in place User Manual Complete accessories package, total package Packer:...
