210505
TINY XS Series
Manual
We will not be responsible for the change of this item, nor can we
actively notify consumers of any update or change. If the material,
specifications or the contents of the parts and packaging recorded in
this manual are changed, please refer to LDARC.com. This product is
suitable for 14 years old and above.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LDARC TINY 6XS PNP
Summary of Contents for LDARC TINY 6XS PNP
- Page 1 If the material, specifications or the contents of the parts and packaging recorded in this manual are changed, please refer to LDARC.com. This product is suitable for 14 years old and above.

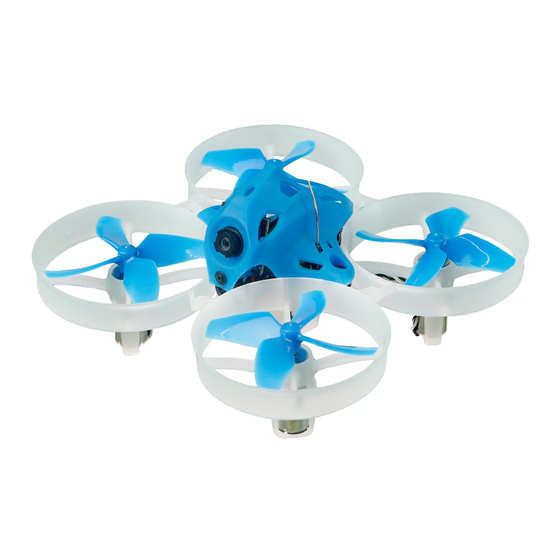

- Page 2 【Motor】: 716 with bursh(17600KV) 【Prop】: 31mm-4baldes 0.8mm 【FC+VTX】: F411-BVT(25mW 16CH) 【Camera】: NANO3-OSD 【Receiver】: NO RX/RX2A/AC900 【Battery & plug】: 3.8V 250mAh，PH2.0 TINY 6XS PNP Package list TINY 6XS*1 3.8V 250mAh*1 1-way charger*1 31mm-4blades*2pairs Prop tool*1 PH2.0 conector*2 TINY 6XS PNP version options NO RX，RX2A，AC900...
- Page 3 TINY 7XS PNP 【Wheelbase】: 75mm 【Weight】: 35.3(Without BAT and RX) 【Motor】: 820 with brush(16000KV) 【Prop】: 1545mm-4blades 1.0mm 【FC+VTX】: F411-BVT(25mW 16CH) 【Camera】: NANO3-OSD 【Receiver】: NO RX/RX2A/AC900 【Battery & plug】: 3.8V 550mAh，PH2.0 TINY 7XS PNP Package list TINY 7XS*1 3.8V 550mAh*1 1-way charger*1 1545-4blades*2pairs Prop tool*1 PH2.0 conector*2...
- Page 4 X6*1 G1 FPV Goggles*1 1- way charger V2*1 3.8V 550mAh*1 18650*1 PH2.0*2 USB carbon*1 Goggles belt*1 1545-4blades*2pairs Tool*1 Handbag*1 说明书 TINY XS系列 本司将不对此物品异动负责，也无法主动通知消费者任何更新或异动，本说 明内记载的材质，规格或零件包装之内容物品如有异动，请依LDARC官网为主; 此产品适合14岁及以上的人。 Sticker*1 Manual*1 Parts*1 Remarks: You need to purchase 3 AAA batteries separately (for X6 transmitter)
- Page 5 Motor M4(CW) M2(CCW) Red & blue Black & white wire wire M1(CW) M3(CCW) Red & blue Black & white wire wire Pay attention to the motor rotation direction when installing the propeller. Charger 4.2V/4.35V switchable(default 4.20V) Molex 1.25 PH 2.0 4.2V/4.35V switchable(default 4.35V) PH 2.0 Note:Charging the 4.2V battery with 4.35V voltage will cause damage...
- Page 6 1S brushed，F411 FC，4in1 5.6A ESC，25mW 16CH VTX FC target : LDARCF411 ESC/Motor : BRUSHED Motor recommend PWM frequency : 6000 5.8G antenna MPU6000 STM32F411CE Brush motor driver circuit use 5.6A mosfet include flybsck diode 2A 1.2Mhz step-up DC/DC CLC filter for camera 1S lipo only 4.35V maximum Click button to adjust frequency RTC6705...
- Page 7 G1 FPV GOGGLES Screen 4.3 inch Resolution 480*272 Optics Distortionless optical lens Receiver 5.8G-98dBm high sensitivity single receiver UI System Plain text user interface,English interface Input Power USB-C 5V/single18650 battery Dimension 165*98*121mm Weight 310g A：One-key frequency search,long press for 3 seconds to search frequency points automatically,Short press to switch to video signal (external receiver/built-in receiver signal) B：No function...
- Page 8 Display interface Frenquency Frenquency point Signal strength Battery BAND:F CH:1 5740MHZ Brightness Contrast Saturation OSD Hide OSD Pos OSD Tran Load Def Frenquency Points Table 5865 5733 5705 5740 5658 5362 5845 5752 5685 5760 5695 5399 5825 5771 5665 5780 5732 5436...
- Page 9 X6 Transmitter BIND RECEIVER WITH RADIO 1.Press the button of receiver then power on, green indicator on receiver will blink fast meaning bind mode enable. 2.Press the red button of radio shown as below then power on the radio, yellow indicator on radio shown as below will blink + buzzer meaning radio bind mode enable.
-
Page 10: Installation
Installation Canopy Camera ST1.2*4 Prop M2 shock absorber Section view Motor Frame Firmware version and setting 1.Software 2.Firmware version(Picture 1) 3.Open 8K and 4K(Picture 2) 4.Setting the motor mode is brushed(Picture 3) 5.Receiver settings，open UART2 switch(Picture 4) 6.Default setting ARM function use AUX1 channel(Picture 5) 7.PID Setting(Picture 6) 4.2.0 STM32F411-14-06-2020 14:40 Picture 1... - Page 11 ESC/Motor Features BRUSHED Picture 3 Identifier Configuration/MSP Serial RX UART1 115200 Picture 4 UART2 115200 115200 UART3 Picture 5 ANGLE Picture 6...
-
Page 12: After-Sale Service
TINY 6XS PNP(AC900) L01 0005 TINY 7XS PNP(AC900) L01 0006 TINY 6XS PNP(RX2A) L01 0007 TINY 7XS PNP(RX2A) L01 0008 TINY 6XS PNP(NO RX) L01 0009 TINY 7XS PNP(NO RX) L01 0010 TINY 7XS RTF(MODE1) L01 0013 TINY 7XS RTF(MODE2) L01 0014...
