- Page 1 ET85 PNP manual NOTE:Only use 51mm Racer propeller,other propeller maybe damage the ESC and motor User manual and video please visit：WWW.LDARC.COM PRODUCT>>MULTROTOR>>ET SERIES PNP>>ET85 PNP ET85 PNP manual Caddx.US turtle V2 manual 190826...
- Page 2 Note 1 Note: Pay attention to the direction of rotation of the motor when installing the prop Note 2 Note 3 VTX antenna need fixed with glue When the center hole is to small, please use the M1.5 drill to ream the hole. Mounting screws 1.2*4 1.2*4...
- Page 3 SOLVE JITTER VIDEO 1. Change new propeller and motor, because crash maybe destroy the balance. 2. Remove ET85 bottom plate, use M2*5 screws and shim reinstall the motor, pay attention the screws length, make sure they NOT reache the coil of motor. Configuration Name ET85(HD)
- Page 4 LDA-F411E12A parameters <1> STM32F411 MCU,Operation at 100Mhz,firmware target MATEKF411. <2> MPU-6000 six-axis SPI sensor. <3> Low power version AT7456E,support Betaflight OSD. <4> BEC use MP9943 High-Efficiency Synchronous mode DC-DC, support 5V@1.5A output. <5> TX1 and RX1 pads,can support IRC-Tramp or Camera control. <6>...
- Page 5 Feature definition Firmware target : MATEKF411 + G-H-30 Voltage : 2S~4S ESC : 12A x 4way BEC : 5V@1.5A Current scale value : 210 IF USE 2S BATTERY PLEASE MAKE SURE VOLTAGE NOT LOWER THAN 2S-4S 6.8V WHEN ESC IN HEAVY LOAD ! KEY WILL BE DISABLED WHEN USER ENABLE IRC-TRAMP CLC FILTER...
- Page 6 Receiver Bind AC900(S-FHSS+D16) bind,transmitter(FRSKY X9D/Futaba T18SZ) Bind:Check receiver mode before bind,the first blink after power on indicate the setting, is S-FHSS, is D16 FUTABA S-FHSS BIND:Turn on the TX then power on AC900 while pressing the key, green LED fast blink meaning already in bind mode, user can release the key.
- Page 7 RX2A PRO Bind(S.BUS),transmitter(FLYSKY FS-i6) BIND:Power on the receiver while pressing the key,green LED fast blink meaning already in bind mode, user can release the key,then set your TX into bind mode.Green LED turn off and red LED solid mean bind finished, exit TX from bind mode,receiver’...
-
Page 8: Firmware Update
Firmware Update BETAFLIGHT firmware allready flash before leave the factory,user just need connect PC to adjust the parameter 1.Open betaflight configuration ,then click ,select FW version MATEKF411 4.0.5- MATEKF411 -01-08-2018-9 21:11(stable) 2.Click ,then click to download FW to FC, click after FW Connect updating finish into setting menu... - Page 9 4.Selected UART2,then open“Serial RX”switch and saved 5.Configuration，select ESC protocol“DSHOT600”，Set up the receiver protocol...
- Page 10 6.PID set 7.Mode set...

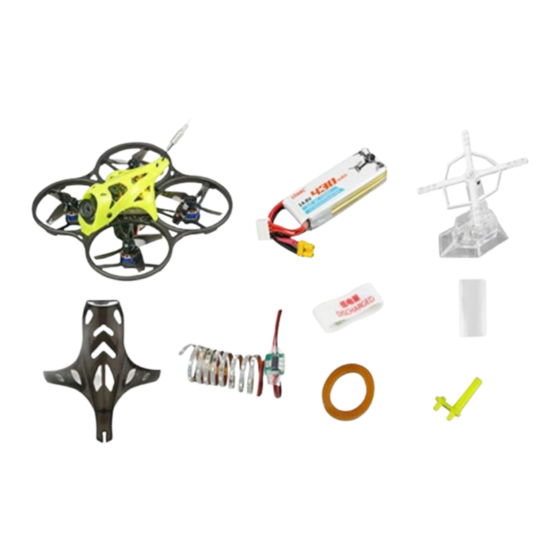

- Page 11 8.OSD set Product and factory code Name Factory code ET85(HD) NO RX PNP.ET85(HD).NO RX ET85(FPV) NO RX PNP.ET85(FPV).NO RX ET85(HD) AC2000 PNP.ET85(HD).AC2000 PNP.ET85(FPV).AC2000 ET85(FPV) AC2000 ET85 KIT KIT.ET85 PART.ET85 MAIN FRAME(2PCS) ET85 Main frame ET85 Bottom plate PART.ET85 BOTTOM PLATE MOTOR.XT1103-6500KV XT1103-6500KV 51mm Racer...
- Page 12 After Sale Service 1.Provide free reparation service when find the product defect after purchase. 2.Provide pay-needed reparation service when product damage because improper operation. 3.China customers please contact with the after-sales service,overseas client please contact the dealer. PNP/RTF Test report ID : Flight test Package check...
