KK SERIES
Instruction Manual
User manual and video please visit:WWW.LDARC.COM
Feature

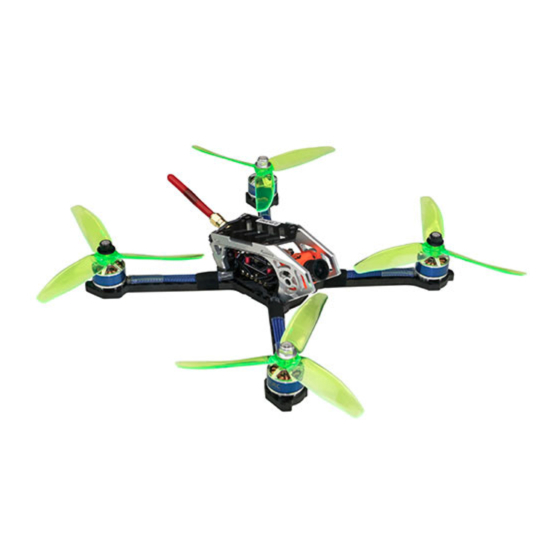

* Top configuration FPV-Drone
* KK Series used RunCam Swift Mini camera(1/3 SONY CCD)
* Outdoor FPV design,Frame arm uses 5.0mm thick carbon plate,it is very strong.
* BLheliS 4in1 20A and 40A ESC ,support MULTISHOT,ONESHOT and DSHOT
provedes a better user experience.
* Modular design, with the betaflight firmware.
180607
Advertisement
Related Manuals for LDARC KK Series
Summary of Contents for LDARC KK Series
- Page 1 User manual and video please visit:WWW.LDARC.COM Feature * Top configuration FPV-Drone * KK Series used RunCam Swift Mini camera(1/3 SONY CCD) * Outdoor FPV design,Frame arm uses 5.0mm thick carbon plate,it is very strong. * BLheliS 4in1 20A and 40A ESC ,support MULTISHOT,ONESHOT and DSHOT provedes a better user experience.
- Page 2 KK 220 Configuration Stop using big pithch propeller NOTE: , Suggest using small pitch propeller（LDARC 5*4*3 PROP）, big pithch propeller will cause the motor to overheat. KK 220(Buzzer+LED) Wheelbase:220mm Input Voltage:3~4S Lipo KK Tower(3 layer)20*20: F4+OSD 4in1 20A BLheliS VTX(OFF/25/100/200mW 48CH) Camera:RunCam Swift Mini 。...
- Page 3 KK 5GT Configuration KK 5GT(Buzzer+LED) Wheelbase:213mm Input Voltage:3~4S Lipo KK SUPER Tower30.5*30.5: F4+OSD+VTX 4in1 40A BLheliS VTX(OFF/25/200/600mW 48CH) Camera:RunCam Swift Mini 。 (600TVL CCD 160 NTSC) Motor:XT2306-2500KV Prop:5150 Weight:336.7g(without receiver and battery) Recommend battery:4S 1300~1800mAh above 25C (Package not include battery) KK 5GT Package List Manual*1 5150 Prop*5Pairs...
- Page 4 KK Tower20*20 (KK 220 Parts) Frequency button Power 2~4S Antenna plug(I-PEX) Camera 5V+ GND VIDEO AUDIO BOOT LED+Buzzer VIDEO Receiver 5V(BUZZER+) LED(S) BUZZER- 3V3 RC IN Connect these 3 pads to VTX when 3V3 RC IN DSMX use 2L tower(FC+ESC) RC IN S.BUS/PPM Connect FC...
-
Page 5: Frequency Table
KK SUPER TOWER30.5*30.5 (KK 5GT and KK 7GT Parts) Connect FC and ESC Frequency button C G G G B 4 3 2 1 B BOOT Frequency button Power2~4S SIGNAL If you use PPM receiver, please solder the pad or use the BL_32 ESC TX. UART3 RX UART3 TX UART6 TX... - Page 6 Motor M4(CW) M2(CCW) Note:pay attention to the direction of rotation of the motor when installing the prop M3(CCW) M1(CW) Receiver The receiver connection mode is for reference only. Please choose a large size, long distance receiver DSM2 Receiver example 12 Pages-Page 5...
- Page 7 XM Receiver example XM bind (default S.BUS),example(FRSKY X9D) 1. Open remote control, set D16 mode. 2. Hold receiver bind button to power, loosen until red and green light constant lighting. 3. Open remote control Bind, press “Enter” and wait a few seconds, then stop Bind when red light flash and green light constant lighting.
- Page 8 FM800 Receiver example Please select MULT 12 Pages-Page 7...
- Page 9 5150 Prop PA RT. K K S E R I E S 7 0 7 5 A L U M I N U M F R A M E KK Series 7075 Aluminum Frame CAM.RUNCAM SWIFT MINI RunCam Swift Mini Camera PART.PLASTIC CARRYING CASE...
-
Page 10: Firmware Update
Firmware update BETAFLIGHT firmware allready flash before leave the factory,user just need connect PC to adjust the parameter. 1.Open betaflight configurator ,then click ,select FW version OMNIBUSF4SD OMNIBUSF4SD 3.2.1- OMNIBUSF4SD -18-10-2017 03:31(stable) 3.2.5- OMNIBUSF4SD -11-02-2018 19:50(stable) KK Tower20*20 KK Super Tower30.5*30.5 2.Click , then click to download FW to FC,... - Page 11 5.PID Setting 12 Pages-Page 10...
- Page 12 6.Default setting of receiver is 5th channel ARM(AUX1),6th channel mode switching(AUX2). 12 Pages-Page 11...
-
Page 13: After-Sale Service
After sale service 1.Provide free reparation service when find the product defect after purchase. 2.Provide pay-needed reparation service when product damage because improper operation. 3.China customers please contact with the after-sales service,overseas client please contact the dealer. PNP/RTF Test report ID : Flight test Transmitter functions properly...
