V DMH

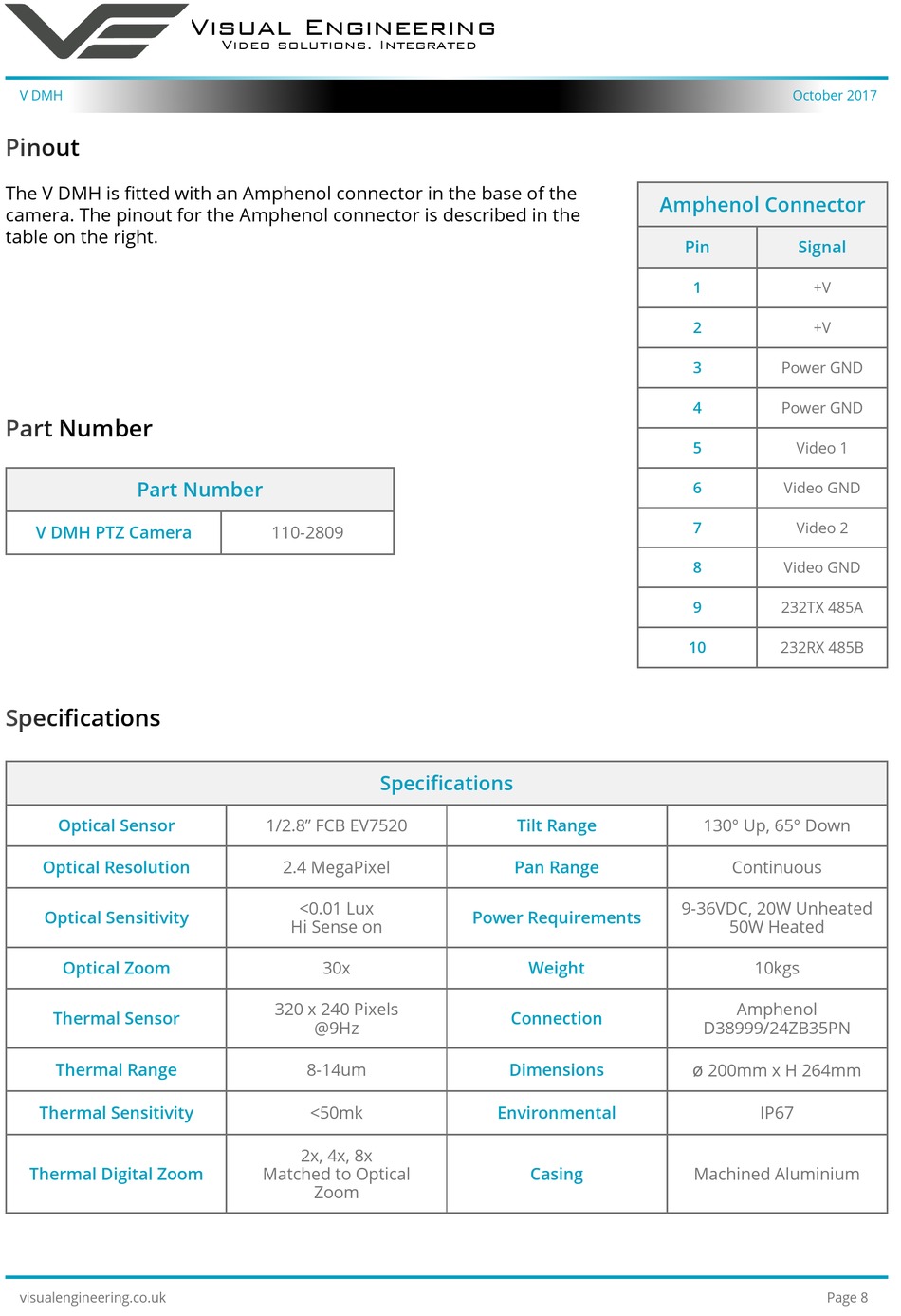

Pinout

The V DMH is fitted with an Amphenol connector in the base of the
camera. The pinout for the Amphenol connector is described in the
table on the right.

Part Number

Part Number
V DMH PTZ Camera

Specifications

Optical Sensor
Optical Resolution
Optical Sensitivity
Optical Zoom
Thermal Sensor
Thermal Range
Thermal Sensitivity
Thermal Digital Zoom
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
110-2809
1/2.8" FCB EV7520
2.4 MegaPixel
<0.01 Lux
Hi Sense on
30x
320 x 240 Pixels
@9Hz
8-14um
<50mk
2x, 4x, 8x
Matched to Optical
Zoom
Specifications
Tilt Range
Pan Range
Power Requirements
Weight
Connection
Dimensions
Environmental
Casing
October 2017
Amphenol Connector
Pin Signal
1 +V
2 +V
3 Power GND
4 Power GND
5 Video 1
6 Video GND
7 Video 2
8 Video GND
9 232TX 485A
10 232RX 485B
130° Up, 65° Down
Continuous
9-36VDC, 20W Unheated
50W Heated
10kgs
Amphenol
D38999/24ZB35PN
ø
200mm x H 264mm
IP67
Machined Aluminium
Page 8
