7. Connect the wires to the terminals of additional zones, if any detectors are to be
connected to them (the detectors are to be connected in the same way as to the control
panel onboard zones). The zones are supported when the keypad is connected to
INTEGRA / INTEGRA Plus control panel.

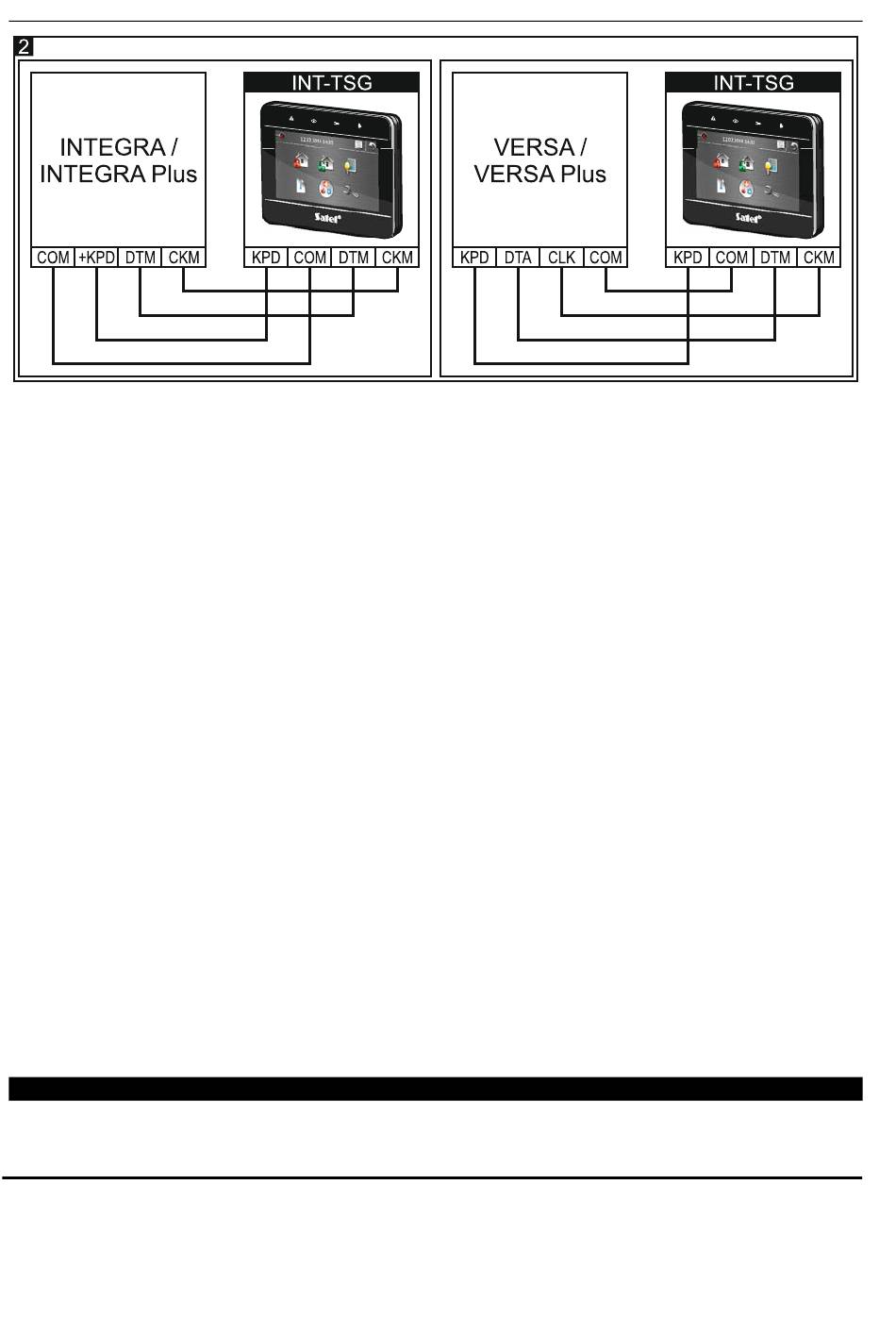

8. Connect the supply wires to the KPD and COM terminals. The keypad can be powered
directly from the control panel, from expander with power supply or from a power supply
unit.
9. Place the front panel onto the catches, snap close the enclosure.

Description of terminals

- power supply input.
KPD
- common ground.
COM
- data.
DTM
- clock.
CKM
A RS485 B - unused terminals.
- zones.
Z1, Z2
