Satel INT-TSG2 Quick Installation Manual

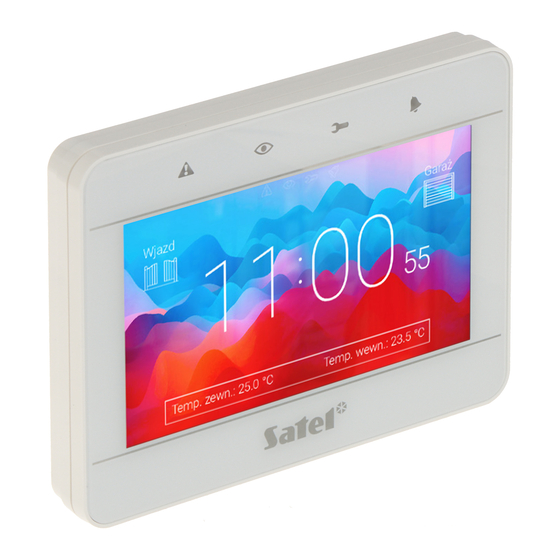

INT-TSG2
Keypad
Full manual is available at
our website and download the manual.
The device should be installed by qualified personnel.
Changes, modifications or repairs not authorized by the manufacturer shall void
your rights under the warranty.
Disconnect power before making any electrical connections.
This is a Class A product. In a domestic environment this product may cause
radio frequency interference.
The keypad is designed for indoor installation. The place of installation should be readily
accessible to the system users.
1. Open the keypad enclosure (Fig. 1). The enclosure opening tool, shown in the illustration,
is included in the keypad delivery set.
2. Place the enclosure base on the wall and mark the location of mounting holes.
3. Drill the holes for wall plugs (screw anchors).
4. Run the wires through the opening in the enclosure base.
Quick installation guide
www.satel.eu
. Scan the QR code to go to
int-tsg2_sii_en 07/21
