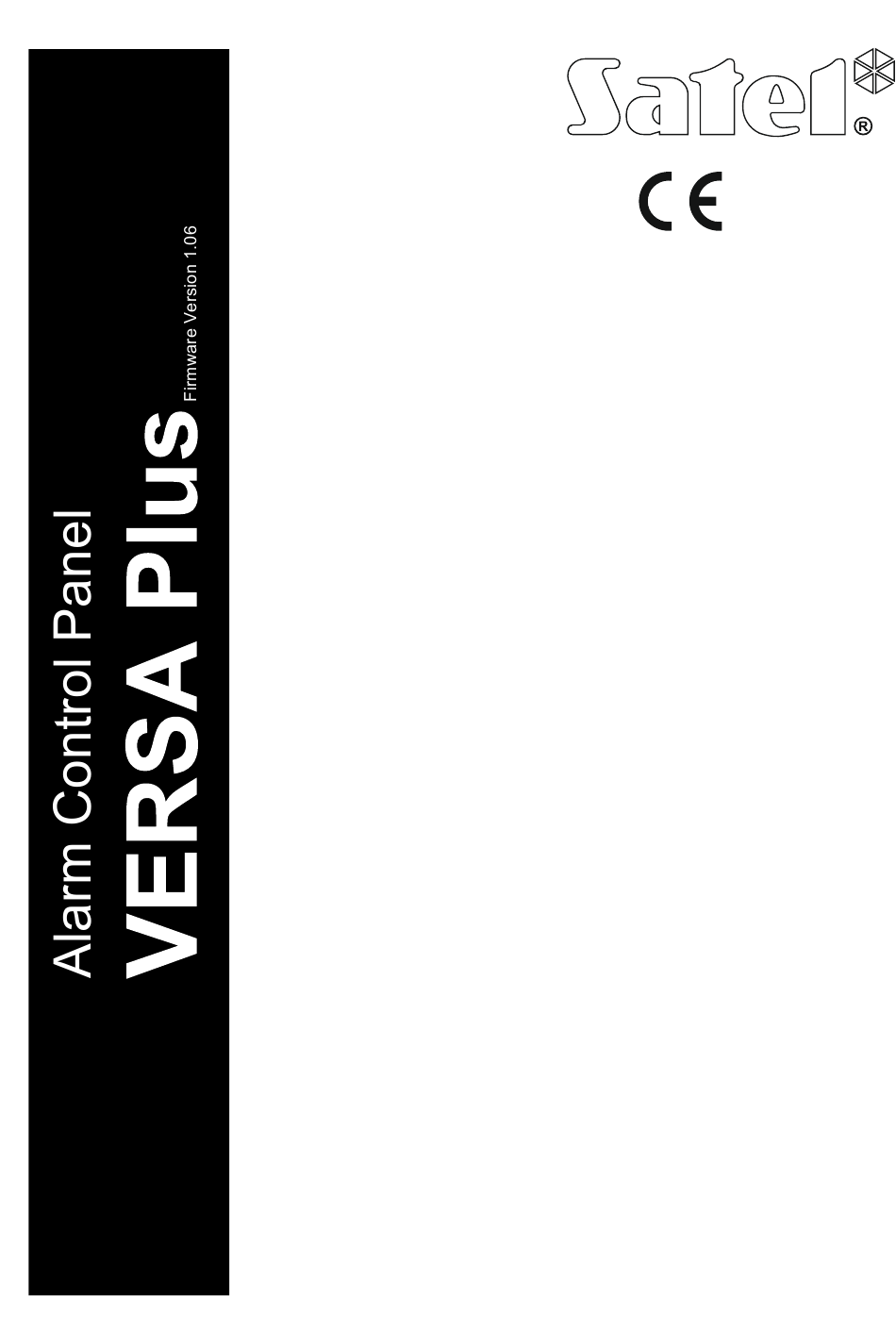

- Page 1 1471 QUICK USER MANUAL The full user manual and other manuals are available on www.satel.eu SATEL sp. z o.o. ul. Budowlanych 66 80-298 Gdańsk POLAND tel. 58 320 94 00 www.satel.eu versa_plus_us_en 09/15...
- Page 2 Changes, modifications or repairs not authorized by the manufacturer shall void your rights under the warranty. The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

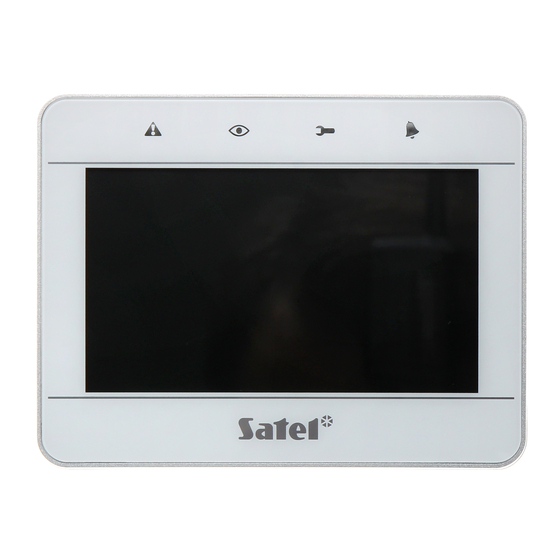

- Page 3 1. Operating the alarm system from keypad SATEL offers the following keypads for VERSA Plus control panels: INT-TSG – hardwired touchscreen keypad (how to operate the alarm system from the INT-TSG, please refer to the manual delivered with the keypad), INT-TSH –...
- Page 4 VERSA Plus SATEL green LED – indicates the partition state (each red LED – indicates alarm or alarm memory in partition has its own LED) the partition (each partition has its own LED) ON – partition is armed The information is presented for 2 seconds and blinking –...
- Page 5 SATEL VERSA Plus Arming without partition selection Disarming and/or alarm clearing [CODE] - full arming [CODE] - in both partitions [CODE] - night arming [CODE] - in partition 1 [CODE] - day arming [CODE] - in partition 2 Arming Partition 1...
-
Page 6: Proximity Cards
VERSA Plus SATEL 1.1 Codes Operating the alarm system by means of the keypad is possible after entering the code. Only some functions can be run without the code being entered. Do not make your code available to other people. - Page 7 SATEL VERSA Plus 1.3.4 Arming without delay hen arming the system using one of the above mentioned methods, press and hold down the arming mode selection key ( ) for about 3 seconds. The system will become armed without delay, i.
- Page 8 VERSA Plus SATEL Press the key twice to defer the auto-arming. 1.8 User menu Enter the code and press to get access to the user menu. The list of available functions depends o n your rights, as well as on the state and configuration of the system.
-
Page 9: Operating The Alarm System By Means Of Keyfob
SATEL VERSA Plus LED ON – the zone is to be inhibit LED OFF – the zone is to be unbypassed. Press to quit the function. The zones will be inhibited/unbypassed. Zone isolating The isolated zone will remain bypassed until it is unbypassed by the user. -
Page 10: Operating The Alarm System By Telephone
VERSA Plus SATEL used to confirm execution of functions, as well as to indicate the system status (pressing a button on the APT-100 keyfob is accompanied by the LEDs flashing rapidly three times, and in a little while the LED(s) may come on for 3 seconds to provide information). - Page 11 enter the ID number of control panel (the individual identification number for the purpose of communication v ia the SATEL server), enter the user code (which will be used when operating the control panel by means of the application), ...
