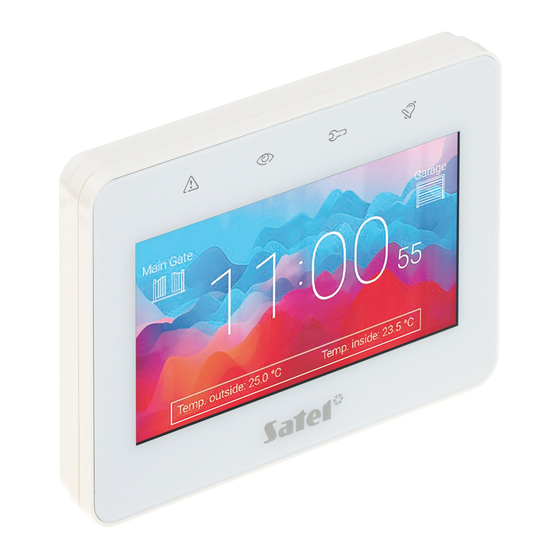

- Page 1 Keypad INT-TSG2R Firmware version 2.01 USER MANUAL – VERSA int-tsg2r_ov_en 03/24 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.pl...
- Page 2 This is a Class A product. In a domestic environment this product may cause radio frequency interference. Hereby, SATEL sp. z o.o. declares that the radio equipment type INT-TSG2R is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.satel.pl/ce...
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ........................3 2. LED indicators ........................3 3. Using the touch screen ...................... 3 4. Screensaver ........................5 Slideshow ........................6 Trigger the panic alarm ....................6 5. User screens ........................6 6. Additional screens ......................8 7. - Page 4 INT-TSG2R SATEL 10.9.1 Setting the screen brightness ................24 10.9.2 Setting the keypad volume ................25 10.9.3 Setting the auto logout time ................25...
-
Page 5: Introduction
In order to control the alarm system, you can use: • user screens and additional screens created for you by the installer, • user menu created by SATEL. Use the gestures described below. - Page 6 INT-TSG2R SATEL Tap on an item on the screen. Tap and hold Tap on an item on the screen and hold for 3 seconds. Swipe up / down Tap the screen and slide your finger up or down to: • swipe the screen up / down (move between the screensaver / user screen / user menu home screen), •...
-
Page 7: Screensaver
SATEL INT-TSG2R Swipe right / left Tap the screen and slide your finger right or left to swipe the screen right / left (go to the previous / next screen). When the screensaver is active, swipe right / left to start / end the slideshow. -
Page 8: Slideshow
INT-TSG2R SATEL Fig. 1. Screensaver (keypad with factory default settings). The screensaver on a keypad with factory default settings (Fig. 1) shows the date and time. The installer can add to the screen additional widgets that will indicate the alarm system status (see “Widgets”... - Page 9 SATEL INT-TSG2R The user screen includes: • status bar (see p. 8), • widgets used to operate the alarm system, indicate the alarm system status, etc. (see “Widgets” p. 8). Fig. 2. User home screen (keypad with factory default settings).
-
Page 10: Additional Screens
For this reason, the additional screens may be used to display site plans. If pictures other than the ones offered by SATEL are to be displayed, the installer must save them on a memory card and install the card in the keypad. -
Page 11: Partition State
Zone state The widget displays the zone state represented by either: • icons selected by SATEL (indicator) – different states are displayed, • text messages (text) – messages inform only about normal and violated states, • icons selected by the installer (icon) – only normal and violated states are displayed. -
Page 12: Output State
The widget displays the output state represented by either: • icons selected by SATEL (indicator), • text messages (text), • icons selected by the installer (icon). The icons selected by SATEL are described in the table below. Icon Output status deactivated activated “15: Controlled”... -
Page 13: Macro
SATEL INT-TSG2R Macro The icon for the widget is selected by the installer. Tap the widget to run a macro command. The macro command is a sequence of actions to be performed by the control panel. Macro commands are created by the installer. -
Page 14: User Menu
INT-TSG2R SATEL Fig. 4. On-screen keypad. 10. User menu Swipe up on the user screen / additional screen to go to the user menu. Since the access to the user menu is code-protected, the keypad will open first. Enter the code. The menu will open immediately if you have already logged in on the user screen. -
Page 15: Qwerty Keyboard
SATEL INT-TSG2R tap to open the terminal and access other user functions and service functions (p. 19). tap to go to the “Keypad” screen (p. 24). If the icon is greyed out, the function is unavailable. icon displayed in the top right corner of the screen allows you to exit the user menu (same as the swipe down gesture). -
Page 16: Partitions" Screen
INT-TSG2R SATEL Fig. 7. QWERTY keyboard: number keys mode. 10.3 “Partitions” screen On this screen you can see the list of the partitions that you can operate by means of the keypad. The partitions are represented by icons that indicate the partition state. The icons are the same as the ones used by the “Partition state”... -
Page 17: Arming
SATEL INT-TSG2R number of partitions where exit delay is running. If you tap the screen close to the bottom edge and swipe up, the buttons with the icons will appear at the bottom of the screen: tap to increase the size of the icons/names on the list. -
Page 18: Zones" Screen
INT-TSG2R SATEL 10.4 “Zones” screen On this screen you can see the list of zones belonging to the partitions. The zones are represented by icons that indicate the zone state. The icons are the same as the ones used by the “Zone state” widget in the indicator mode (p. 9). The zone name may be displayed beside the icon. -
Page 19: Zone Inhibiting
SATEL INT-TSG2R tap to hide the zone names on the list. tap to display the zone names on the list. tap to hide the buttons. 10.4.1 Zone inhibiting The inhibited zone will remain bypassed until disarming the partition it belongs to, or until unbypassing the zone by the user. -
Page 20: Output Control
INT-TSG2R SATEL Fig. 10. “Outputs” screen (example). icon is displayed in the top right corner of the screen. Tap it to go back to the user menu home screen. The icon displayed above the list of outputs allows you to: tap to hide the list of outputs. -
Page 21: Events" Screen
SATEL INT-TSG2R 10.7 “Events” screen On this screen you can see the list of events. Events are displayed in order from the most recent to the oldest. The icons in the top right corner allow you to: tap to display events required by the EN 50131 standard for Grade 2. -
Page 22: Using The Terminal
INT-TSG2R SATEL Functions of keys arm the system in the full mode if the system is disarmed and there is no alarm condition (enter the code and tap disarm the system and clear the alarm if the system is armed and/or there is... - Page 23 SATEL INT-TSG2R 4. Tap or tap again the key corresponding to the selected arming mode. 5. In the selected partition, the arming procedure will begin. When the quick arming is available, the steps 3 and 4 are skipped. Quick arming The installer may permit arming without entering the code.
- Page 24 INT-TSG2R SATEL 3. Enter the code. 4. Tap 5. Selected partition will be disarmed / alarm will be cleared. User menu Enter the code and tap to get access to the user menu. The functions you can run will be displayed. The list of available functions depends on your rights, as well as on the state and configuration of the system.
- Page 25 SATEL INT-TSG2R Using the number shortcuts All submenus and functions are numbered. In order to enter a submenu, just tap the key with number corresponding to the submenu number. In order to start a function, tap the key with number corresponding to the function number, and then .
-
Page 26: Keypad" Screen
INT-TSG2R SATEL Shown on the left side in the upper line of the display is information about the letter case: [Abc], [ABC] or [abc] (it is shown for a few seconds when you tap any key). Tap change the letter case. - Page 27 SATEL INT-TSG2R screen brightness in the daytime when the keypad is not used. beginning of the daytime. screen timeout in the daytime (if you set 0, the screen will not be turned off). screen brightness in the nighttime when the keypad screen is woken up.
- Page 28 INT-TSG2R SATEL The auto logout time is also used to set the time of inactivity after which the screensaver will be displayed (if it is enabled). When the service menu (terminal) is displayed, the auto logout and screensaver functions are disabled.
