EQUIPMENT COMPARTMENT

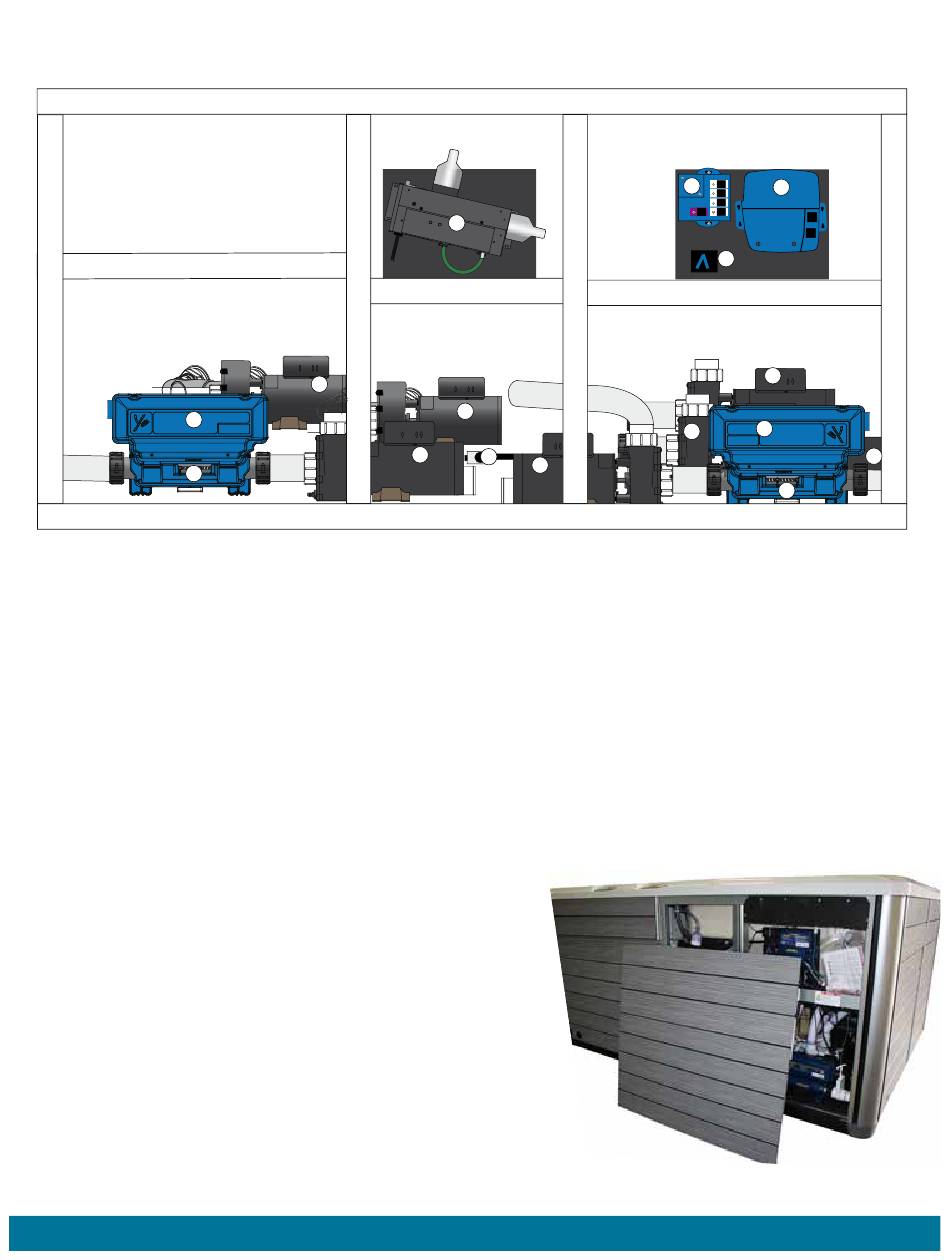

The illustrations below are to be used as a reference only (your exercise system may look different). The equipment compartment is located below and to
the right of the control panels (spa side of the exercise system).
1. Hydromassage Jets pump
2. Circulation Pump Spa Side
3. Circulation Pump Swim Side
4. Control Box & Heater Spa Side
5. Control Box & Heater Swim Side
DOOR PANEL REMOVE & REPLACE
REMOVE
1. Locate the vertical T-spacer to the left of the equipment compartment (back, control panel side of exercise system).
2. Remove the 4 screws (using an 8 mm (5/16") socket) holding the T-spacer then remove the T-spacer. Loosen the 4 screws on the right side corner spacer
but do not remove.
3. Lift panel and slide left until panel is no longer behind corner.
4. While holding panel, first pull panel up then pull bottom away from SWIMCROSS
exercise system, lower panel and remove.
5. To remove left equipment compartment panel, first loosen and remove the nut holding
each drain onto the panel. Slide panel slightly to the right so panel is no longer behind
left T-space then repeat step 4 above.
REPLACE
1. Raise panel making sure it goes behind the bar top and rest on bottom frame.
2. Slide left panel to the left behind T-spacer and right panel to the right behind corner.
3. Align drains into left panel holes and attach to panel using the nuts removed in step 5
above.
4. Attach T-spacer back in place using 4 screws and tighten the 4 screws on the right corner
to complete the installation.
Electrical Requirements
6
5
7
6. Swim Side Jet Pump
7. Bonding terminal
8. Gang Box
9. UVC Ozone Swim Side
10. Bluetooth Music (optional)
9
6
3
8
2
Page 9
12
10
13
1
4
1
7
11. Subwoofer (optional)
12. Wi-Fi (optional)(2x)
13. Ozone Unit Spa Side
11
