Operating Instructions

The exercise system has two control panels, one controls the
large swi
m side and the other controls the smaller spa side.

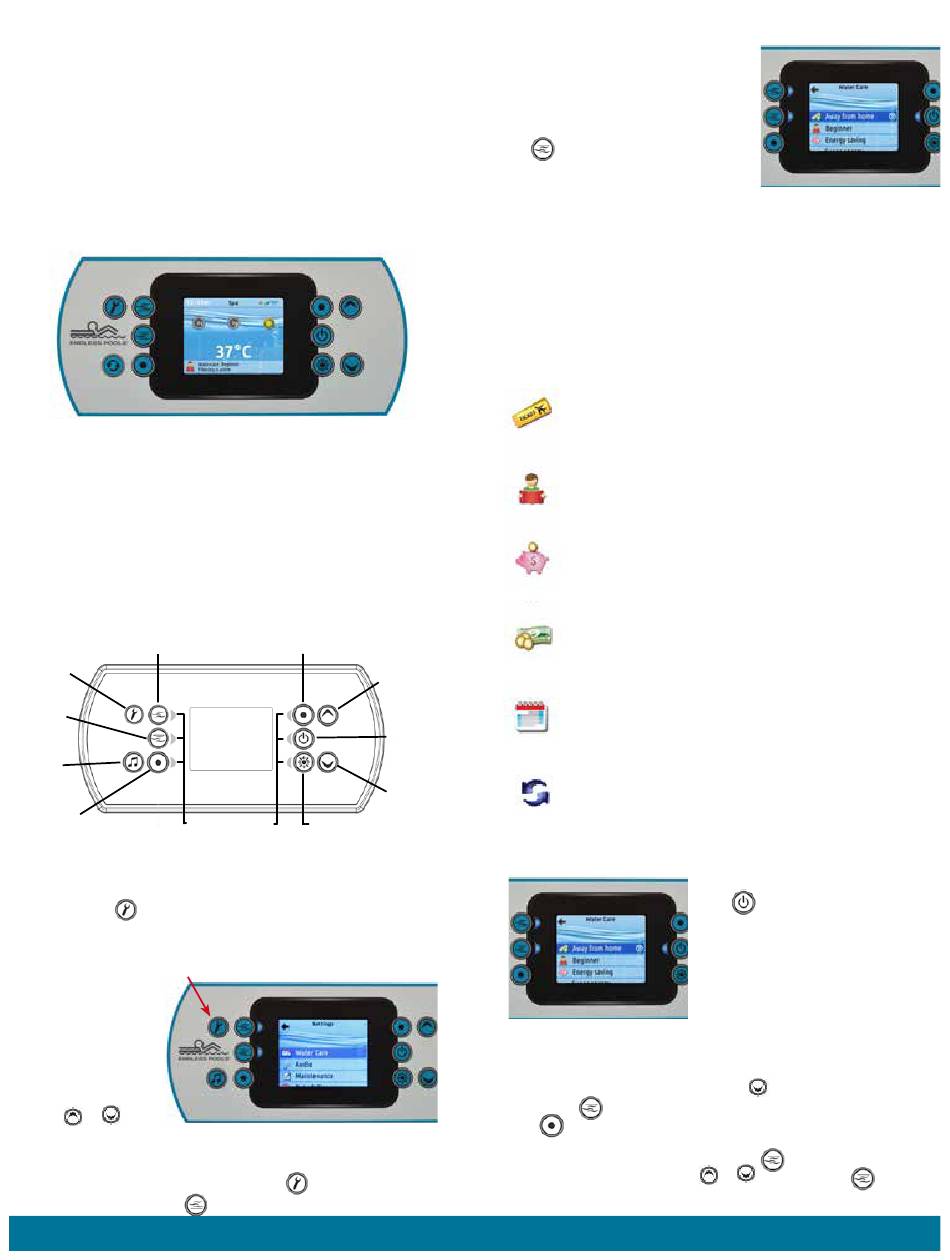

SWIM SIDE CONTROL PANEL

The swim side control panel provides a bright, full color display, and
intuitive user experience, while its screen's high resolution brings
exercise system user interfaces to a new level. Loaded with a large
amount of memory and a powerful on-board processor creating seamless
graphic interface that exercise system users have been waiting for.
SWIM SIDE CONTROL PANEL
FUNCTIONS
When the screen is off, press any button to turn the control panel screen
on and display the home screen. After 30 minutes of inactivity the screen
will shut off.
The function description of the buttons below will only work from the
Home screen. Once the swim side control panel is placed in a submenu
the selection lights next to the buttons will light up to indicate which
buttons may be selected for a specific screen function.
Top Swim Jets

Settings

Bottom
Swim Jets
Audio
Selection
Selection Lights
Button
SETTINGS
One press of the (Settings button) from the home page gives you
access to a menu to manage the settings of your exercise system
where you will find:
• Water care
• Audio (optional)
• Maintenance
• Date and time
• Keypad Settings
• Miscellaneous
• Electrical configuration
• About
Use the or
buttons to move up and down in the list. To select an option, press the lit
button beside the desired highlighted option.
IMPORTANT: At any point you can press the
return to the home screen or
Operating Instructions
Selection Button
Temperature
Temperature
Lights
(Settings button) to
(top left button) to go back.
WATER CARE / HEATER SETTINGS
The Water Care section will help you set
up your purge times and heater settings.
Choose from Away from Home, Beginner,
Energy Savings, Super Energy Savings,
and Weekender, depending on your needs.
Use (middle left) button to choose
your setting. A green check mark will
appear on the selected icon to confirm.
When in Economy mode, the heating set point will be reduced by 11°C
(20°F), which means that the heating system will not come on during
the set time unless the temperature falls 11°C (20°F) below the exercise
system's set temperature.
The swim side uses a 24 hour circulation pump. Purge times can be
set to turn each Swim jet pump on (back to back) for 1 minute at the
designated purge time, additional purge times can also be inserted.
WATER CARE MODES
Away from home:
In this mode the swim side will always be in economy mode;
the set point will be reduced by 11°C (20°F).
Standard - Beginner:
The swim side will never be in economy mode.
Energy Savings:
The swim side will be in economy mode during the peak hours
of the day and resume normal mode on the weekend.
Super Energy:
The swim side will always be in economy mode during peak
hours, every day of the week.
Up/
Weekender:
The swim side will be in economy mode from Monday to
Friday, and will run normally on the weekend.
All Off/
Memory On
Default Settings:
Down/
By selecting this setting you will be asked to confirm your
choice. Doing so will revert all Water Care Modes back to
factory settings.
MODIFYING SCHEDULES
(Economy mode). Scroll down to set or change the Purge Cycle Day and
Start, the duration can not be changed.
You can add schedules by scrolling down
pressing the
press (top right) lit button.
You can modify the schedules by selecting
adjusting the schedule using the
left) lit button to move between parameters.
Page 13
To modify a Water Care category, use
the (middle right) lit button, to
open the selected Water Care menu.
The menu screen is divided into two
settings, Economy and Purge time
with Economy being first. Set or
change the Day, Start and Stop time if
desired to keep the heater off
to Add, and selecting by
(middle left) lit button. To delete a highlighted schedule,
or buttons. Press
(middle left) lit button and
(middle
