EQUIPMENT COMPARTMENT

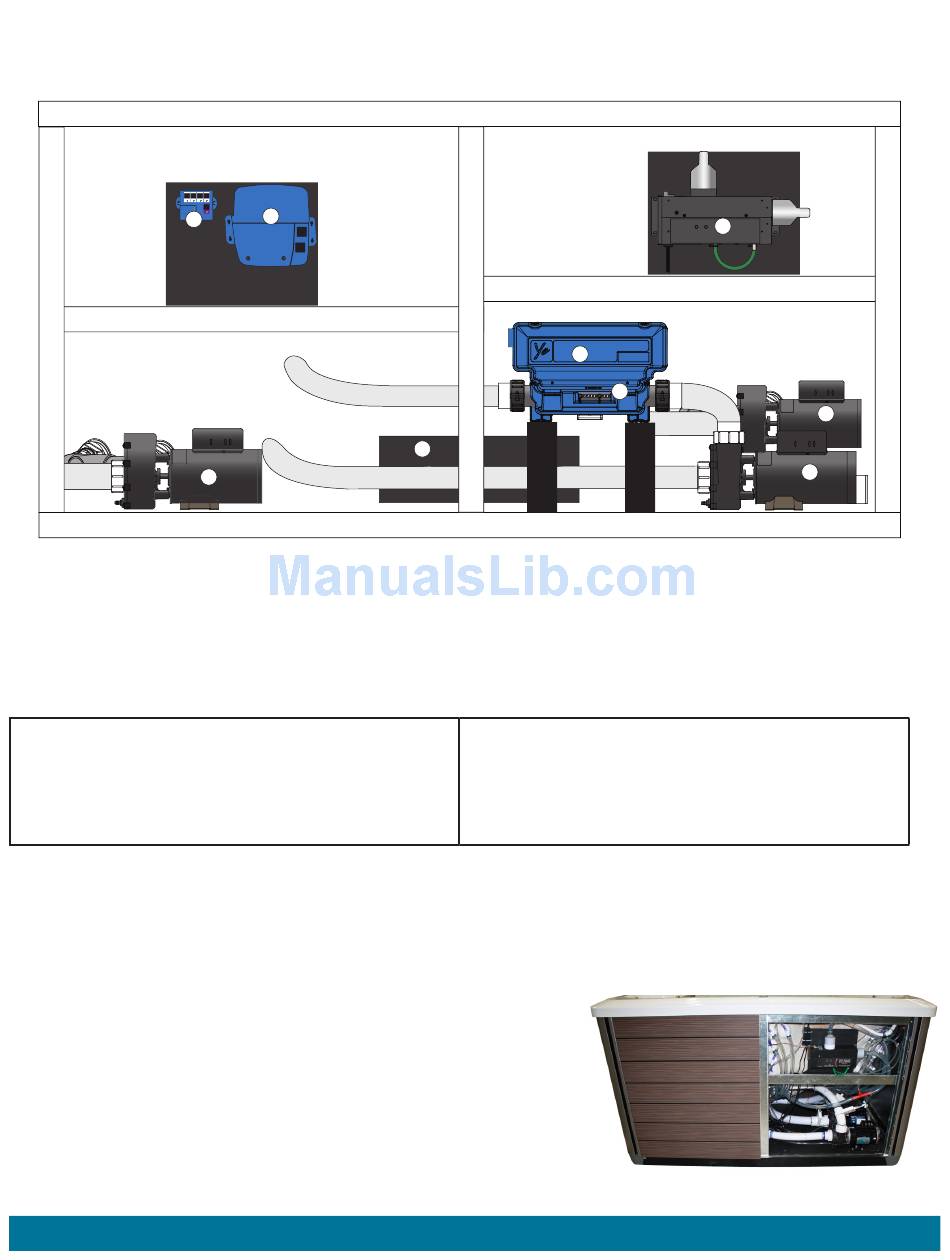

The illustrations below are to be used as a reference only (your SWIMCROSS Exercise System may look different). The equipment compartment is located
behind the hydromassage seats (back of the SWIMCROSS Exercise System).
1.
Hydromassage Jets & filter pump
2.
Swim Jets Pump
3.
Control Box & Heater
4.
Bonding terminal
CAUTIONS
USE COPPER CONDUCTORS ONLY.
USE SUPPLY WIRES SUITABLE FOR 75°C/167°F.
DISCONNECT ALL SUPPLY CONNECTIONS BEFORE SERVICING.
CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A
GROUND-FAULT INTERRUPTER.
DOOR PANEL REMOVE & REPLACE
REMOVAL
1.
Locate the vertical T-spacer in the center of the equipment compartment (back side of SWIMCROSS Exercise System).
2.
Remove the 4 screws (using a 5/16" socket) holding the T-spacer then remove the T-spacer.
3.
Slide panel towards center until panel is no longer behind corner.
4.
While holding panel, first pull panel up then pull bottom away from SWIMCROSS
Exercise System.
5.
Lower panel to remove. Repeat for other side.
REPLACE
1.
Raise panel making sure it goes behind the bar top then lower to rest on bottom frame
2.
Slide panel behind corner.
3.
Replace other side panel using steps 1 & 2.
4.
Attach T-spacer back in place using 4 screws to complete the installation.
6
8
2
Page 6
3
7
5.
UVC Ozone
6.
Bluetooth Music (optional)
7.
Subwoofer (optional)
8.
Wi-Fi (optional)
THESE SWIMCROSS EXERCISE SYSTEMS ARE INTENDED FOR
USE WITH GFCI SUBPANEL PROVIDED.
INCORRECT WIRING WILL DAMAGE CIRCUIT BOARDS.
REFER TO THE WIRING INSTRUCTIONS INCLUDED WITH THE
SUB-PANEL FOR DETAILED WIRING INSTRUCTIONS.
5
4
Electrical Requirements
2
1
