Mounting Radome

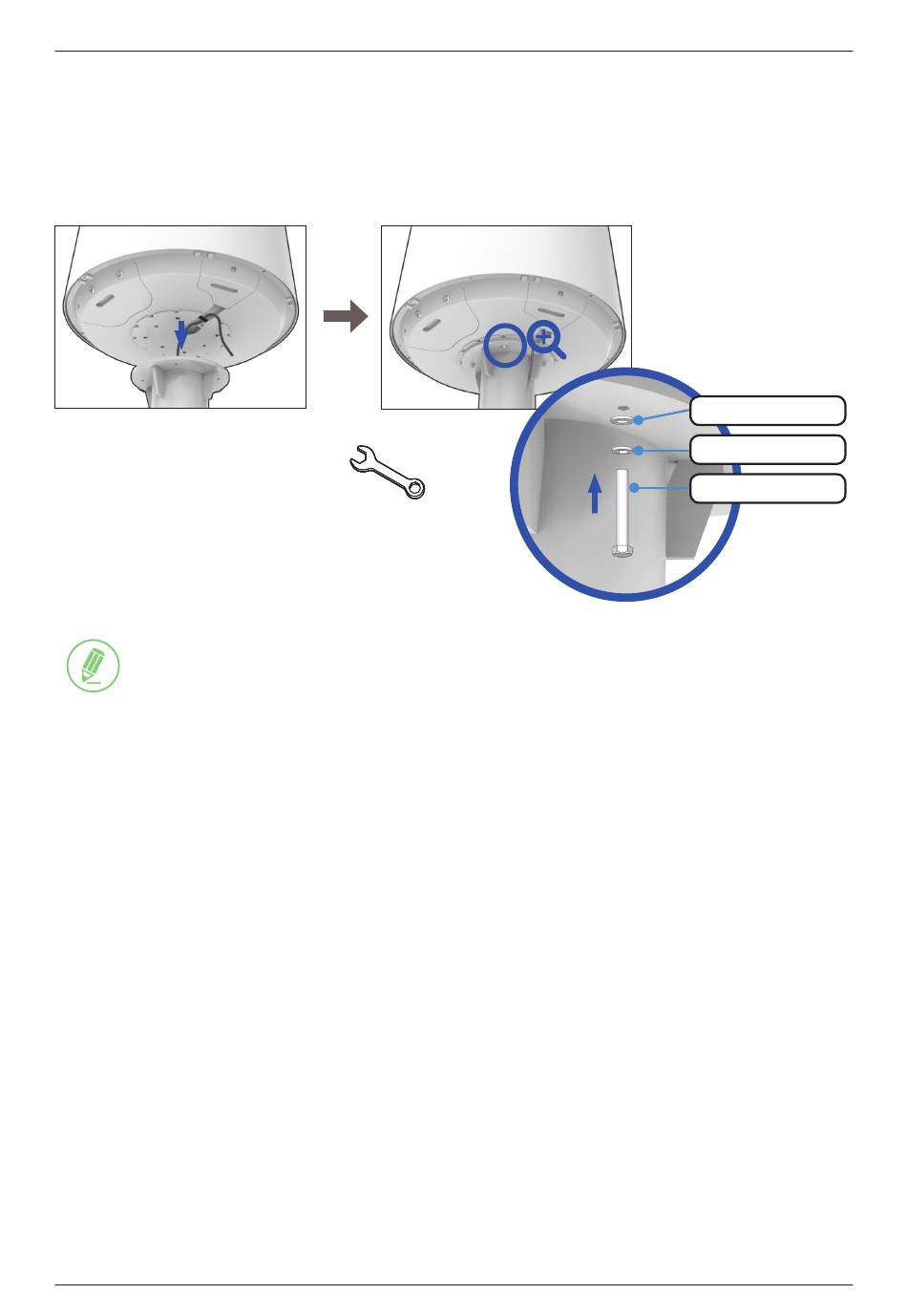

Bring the Bolt Kit (4EA) from the ACU box. Before assembling bolts, apply Loctite #263 to the bolt's threads
to ensure the bolts are fastened firmly. Insert the bolts and washers from under the mast into the radome,
and fasten them to the nuts assembled inside the radome. After mounting the antenna on the mast, remove
the lifting strap.
NOTE
• Make sure the cable from the mast is aligned with the cable entry of antenna bottom for a cable
connection.
• In case of using a mast with a surface thickness of more than 20mm, use the M12x100L Hex Bolt.
NOTE
Use 19mm Spanner/
Torque Wrench
28
Installing Antenna
M12 Flat Washer
M12 Spring Washer
M12x80L Hex. Bolt
