ACU to PC Communication Setup

You can establish data communication between the ACU and a PC the using the following method.

TCP/IP Connection

Connection through Front Panel Management Port
The network is automatically configured by DHCP without the need for additional PC IP configuration.
1. Connect an Ethernet cable from the Management LAN port on the front of the ACU to the LAN port of PC.
2. The network connection is established automatically.
3. Use the following IP address to access Intellian AptusNX page.
• IP Address: 192.168.2.1 (Default)
ACU - Front Panel
Management LAN Port
USB Connection:
Connection through Front Panel Right USB Port
The "Right USB port" just allows the USB device to be connected to each other for log download, backup/
restore antenna settings, firmware upgrade. The "Left USB port" is not available in this model.
CAUTION
Make sure that the USB is connected to the "Right USB port" to communicate with the antenna. Do
not connect to the "Left USB port".
CAUTION
ACU - Front Panel
Right USB port
USB

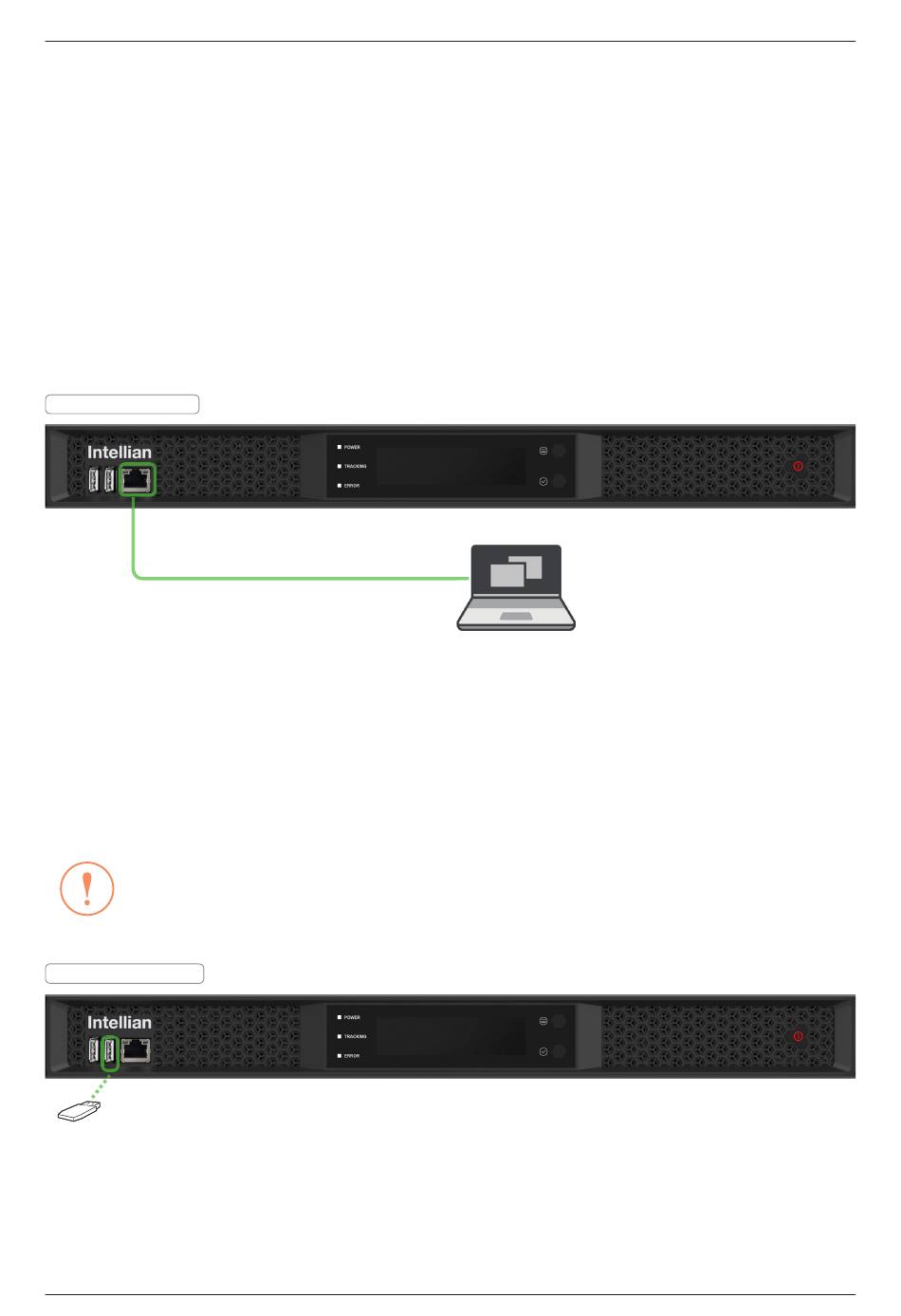

Figure: Front Panel Management LAN Port Connection
Figure: Front Panel Right USB Port Connection
PC
(Not supplied)
42
Installing ACU
