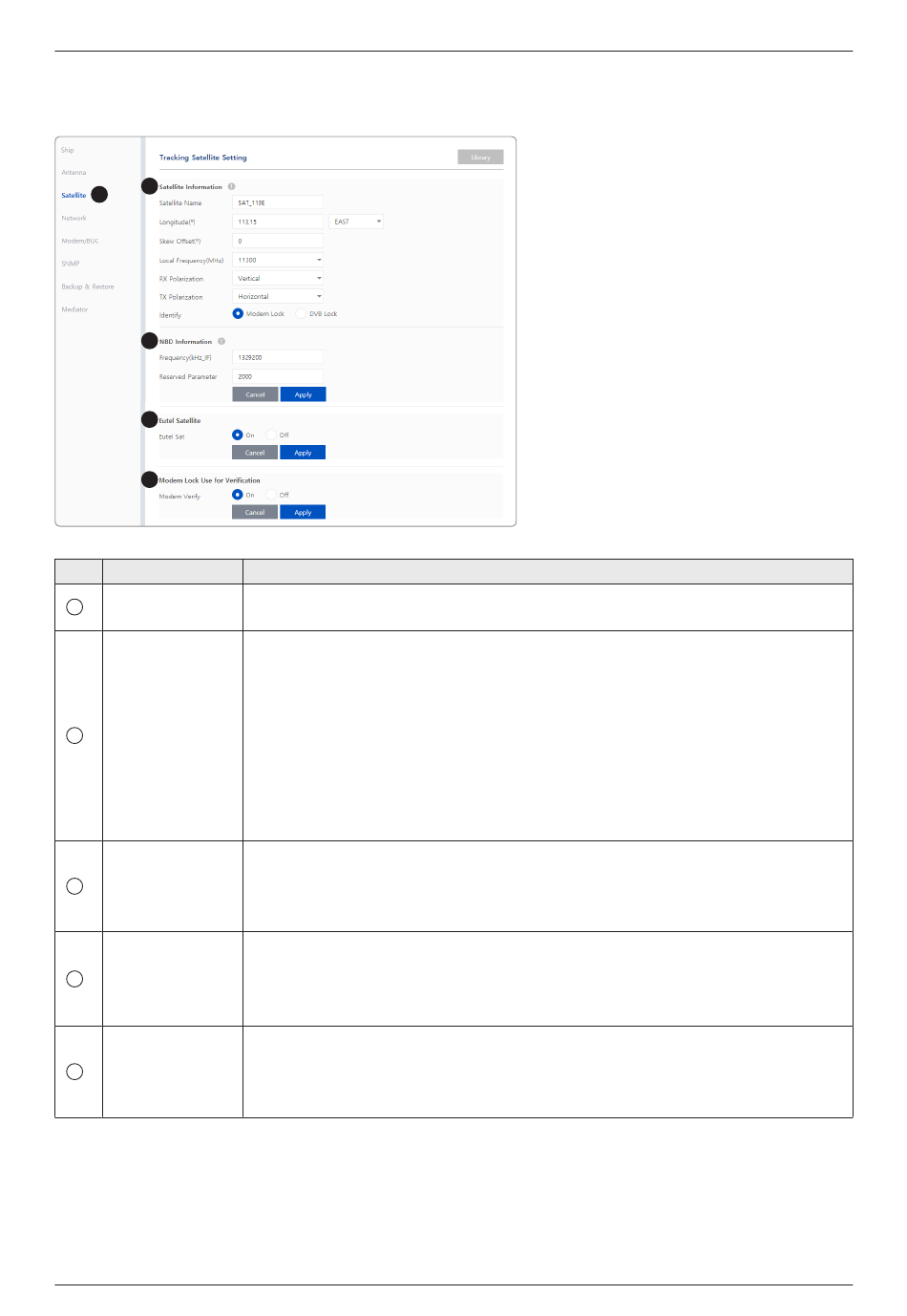

Tracking Satellite Setting

2
1
3
4
5
No. Item
Tracking Satellite
1
Setting
Satellite
2
Information
NBD Information
3
Eutel Satellite
4
Modem Lock Use
5
for Verification
Description
Sets the current tracking satellite settings.
Sets the current tracking satellite settings.
• Satellite Name: sets the satellite name.
• Longitude(º): sets the satellite orbit position.
• Skew Offset(º): sets the skew offset.
• Local Frequency (MHz): sets the local frequency.
• RX Polarization: sets the current RX polarization.
• TX Polarization: sets the current TX polarization.
• Identify: sets the lock setting type (Modem Lock / DVB Lock) for satellite
tracking.
Click the "Apply" button to apply the settings to the system.
Sets NBD mode's tracking information.
• Frequency (kHz_IF): sets the tracking frequency.
• Reserved Parameter(kHz): sets the reserved parameter.
Click the "Apply" button to apply the settings to the system.
Select "ON" when the antenna is tracking the Eutelsat satellite. With this option
enabled, a defined skew angle for each Eutelsat satellite is automatically applied
without allowing a manual modification to the skew offset value.
Click the "Apply" button to apply the settings to the system.
Verifies the modem lock status whether the modem lock function is using or not.
• Modem Verify: choose whether to use the modem lock function or not. (On /
Off)
Click the "Apply" button to apply the settings to the system.
