Operating ACU

Introduction

Antenna Control Unit (ACU)

The Antenna Control Unit (ACU) controls the various settings of the antenna.

ACU Front Panel

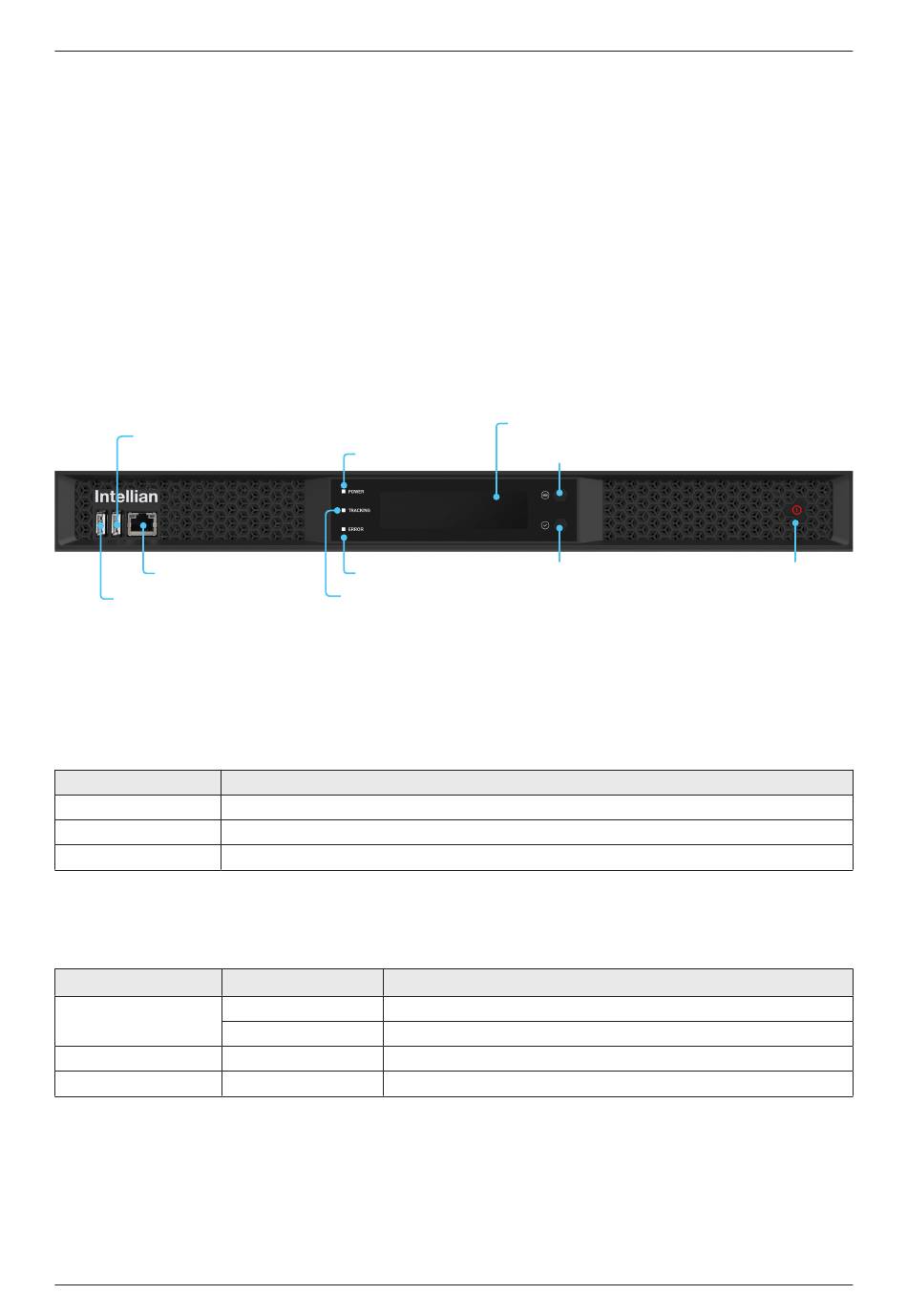

The following figure shows the ACU's front panel.
Right USB Port: for Log
data download
Management Port
Left USB Port: to
Connect to PC for
Firmware Upgrade
The following table shows the function of each touch key.
Touch key
Power Button
Move Key
Select Key
The following table shows status indicators on the face of ACU.
LED Display
POWER
ERROR
TRACKING
POWER Indicator
ERROR Indicator
TRACKING Indicator
Figure: Name of ACU Front Panel
Function
Power on/off the ACU.
Moves to the desired screen.
Selects the desired screen.
Color Description
Steady Green The ACU is powered on.
Off The ACU is powered off.
Steady Red The antenna is faulty.
Steady Green The antenna is in tracking mode.
OLED Display
Move Key
Select Key
54
Operating ACU
Power Button
