Installing Antenna

Antenna Installation

Unpacking Wooden Crate

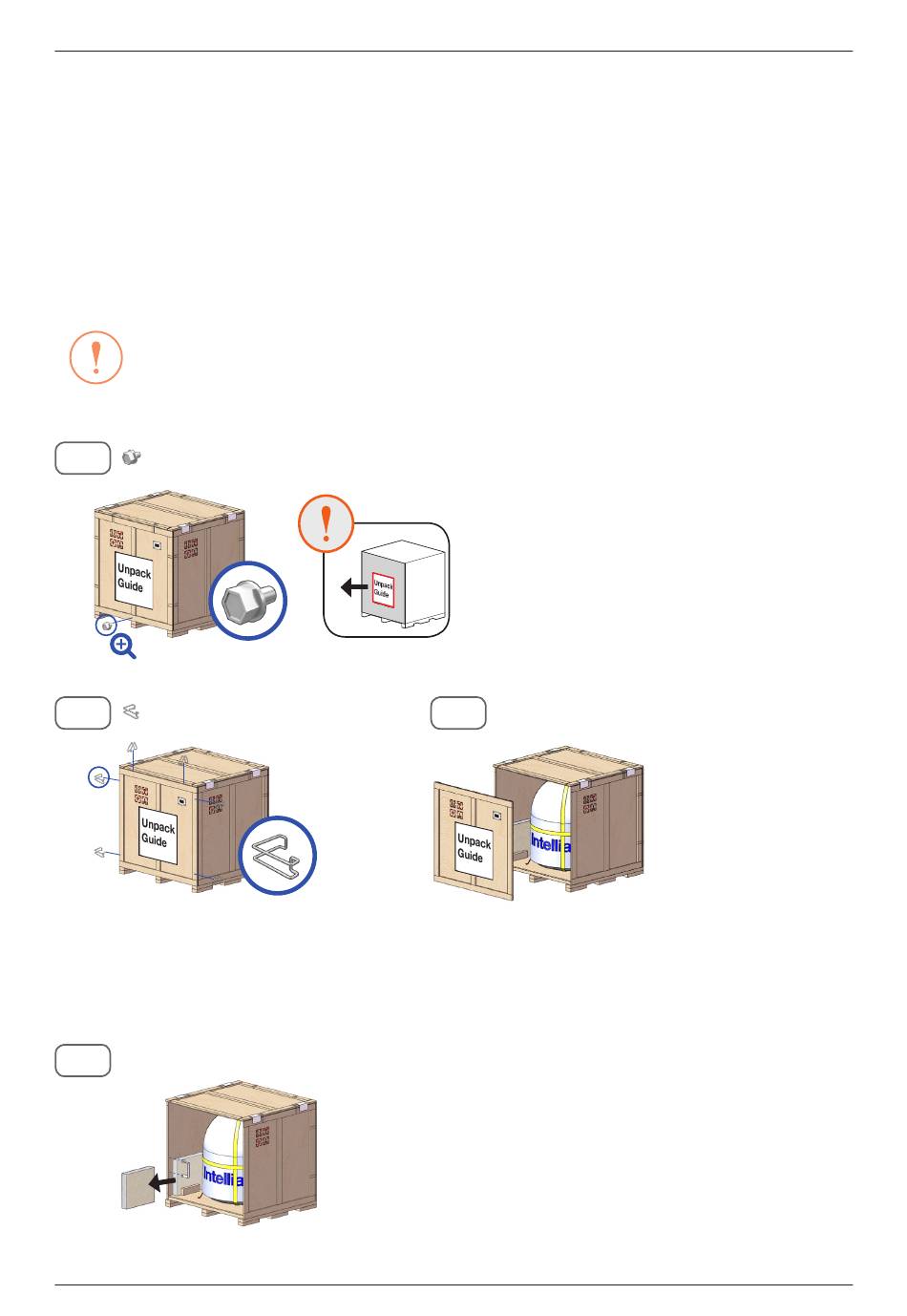

The pallet should be lifted by means of a forklift. To unpack the wooden crate, follow the procedure below.
1. Locate one of the side panels with a paper sticker (Unpack Guide). Detach this side panel by removing
the fixing screw (1EA) and clips (6EA).
CAUTION
Be careful with the direction of the panel that you must open first.
CAUTION
1-1
: 1EA
Fixing screw
1-2
: 6 EA
2. The ACU box is located inside the side panel. Take out the ACU box by removing fixing screws (2EA) on
the ACU bracket.
2-1
Fixing clip
1-3
23
