Connecting to Antenna (Optional: For Dual Antenna System)

To use the Dual Antenna System, the antenna system needs to be installed with the two of ACUs and antennas
to support the Dual Antenna System operation.
Connect the "RF Cable (not supplied by Intellian)" from the "ANTENNA" connector on the rear of the "Primary
ACU" to the "RF Connector" inside cable entry of radome (Primary Antenna).
Connect the "RF Cable (not supplied by Intellian)" from the "ANTENNA" connector on the rear of the
"Secondary ACU" to the "RF Connector" inside cable entry of radome (Secondary Antenna).
Primary
Antenna
Primary
ACU
Antenna

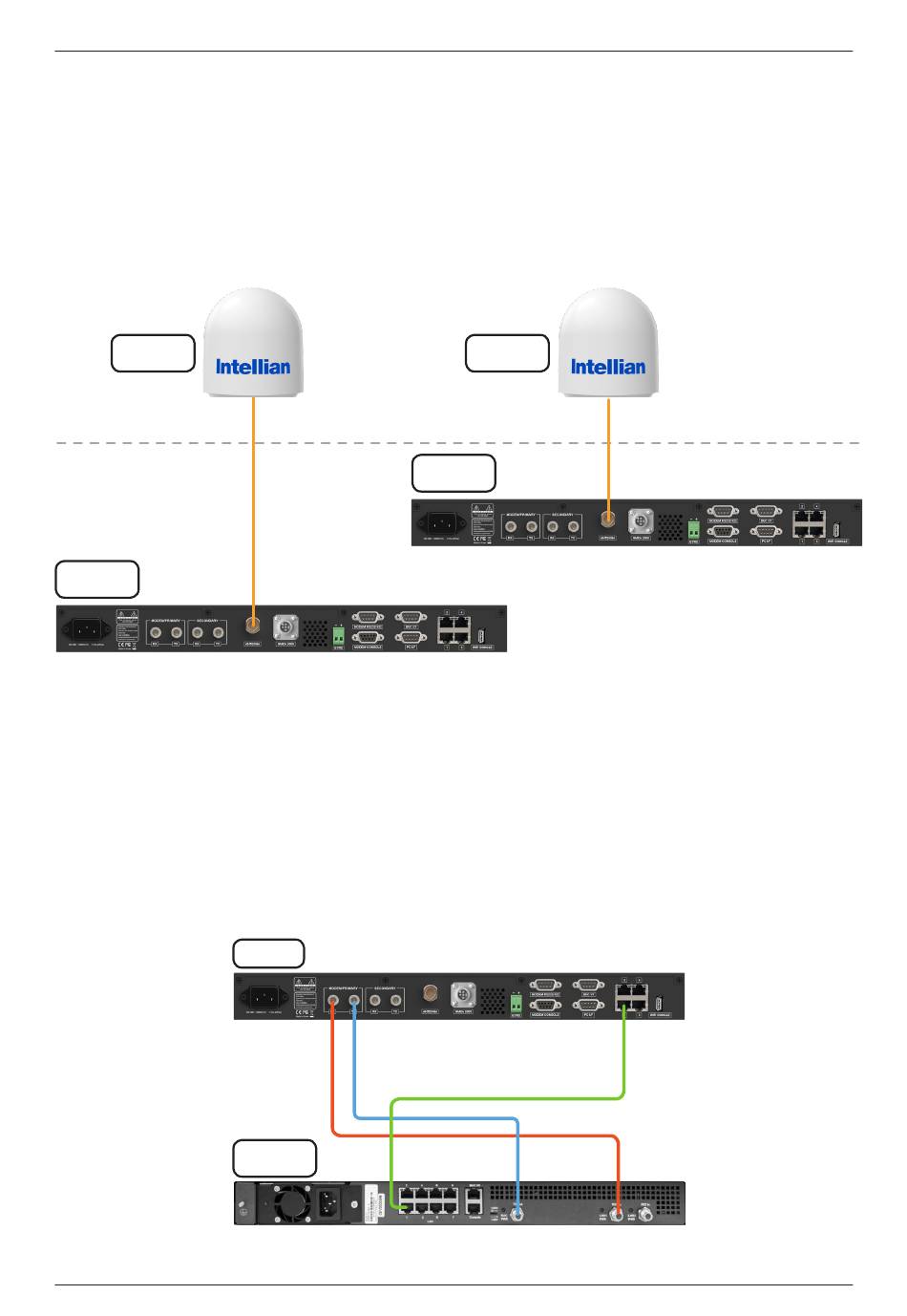

Figure: ACU to Antenna Cable Connection for Dual Antenna System

Connecting to Modem

Connect the "RG-6 RF cable" from the "MODEM Rx" connector on the rear of the ACU to the "Rx connector"
on the modem.
Connect the "RG-6 RF cable" from the "MODEM Tx" connector on the rear of the ACU to the "Tx connector"
on the modem.
When using the OpenAMIP, connect the "Ethernet cable" from the "LAN 1" port on the rear of the ACU to the
"LAN" port on the modem.
TX, RX, 48V DC Power
ACU
Modem Modem
Rx Tx
Modem
(Not supplied)
OpenAMIP
Figure: ACU to Modem Cable Connection
Primary
Antenna
Secondary
ACU
Antenna
LAN 1
TX
36
Installing ACU
TX, RX, 48V DC Power
RX
Above Decks
Below Decks
