Startup - Intellian v85NX Installation & Operation User Manual

Startup

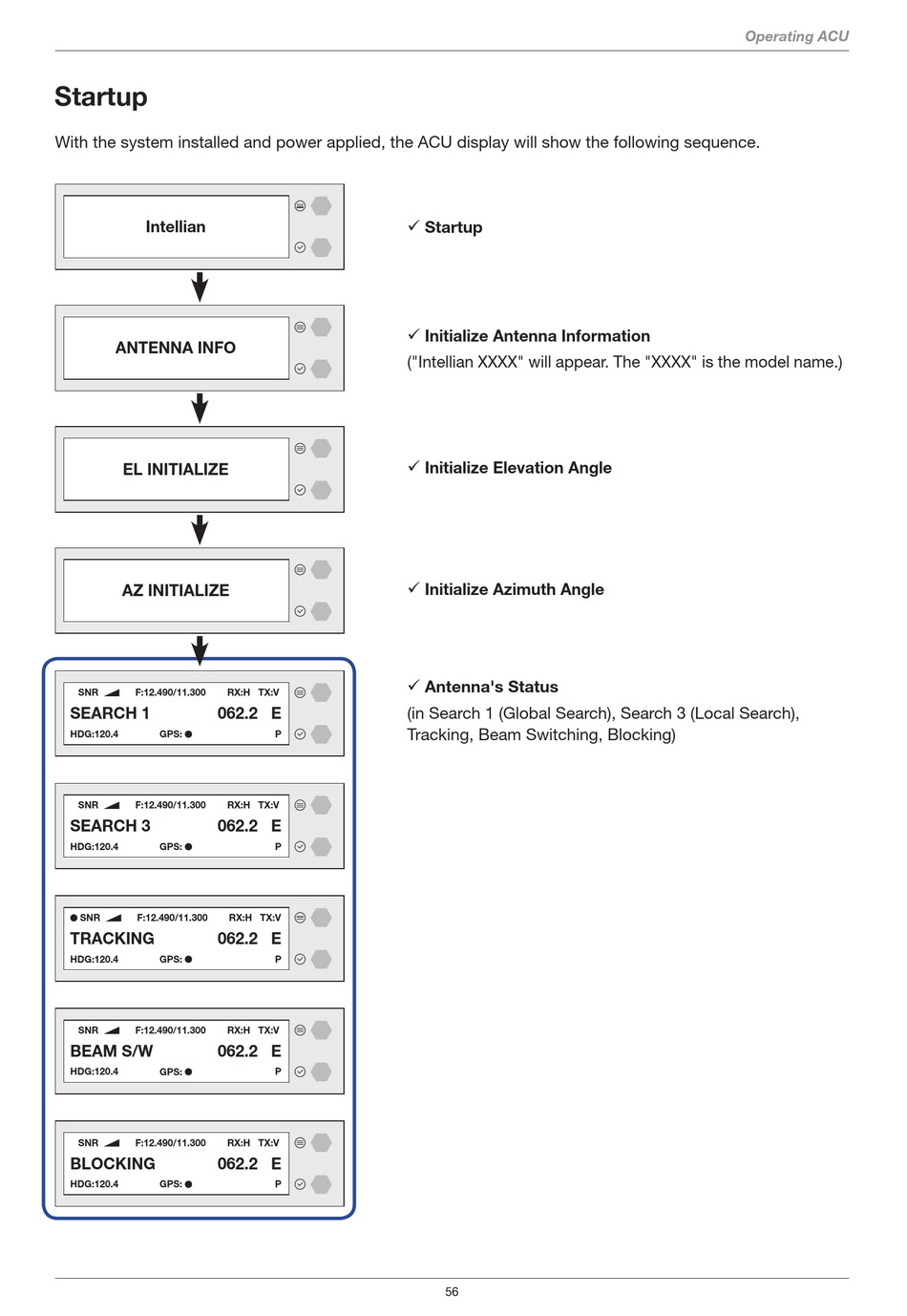

With the system installed and power applied, the ACU display will show the following sequence.
Intellian
ANTENNA INFO
EL INITIALIZE
AZ INITIALIZE
SNR F:12.490/11.300
SEARCH 1 062.2 E
HDG:120.4 GPS:
SNR F:12.490/11.300
SEARCH 3 062.2 E
HDG:120.4 GPS:
SNR F:12.490/11.300
TRACKING 062.2 E
HDG:120.4 GPS:
SNR F:12.490/11.300
BEAM S/W 062.2 E
HDG:120.4 GPS:
SNR F:12.490/11.300
BLOCKING 062.2 E
HDG:120.4 GPS:
RX:H TX:V
P
RX:H TX:V
P
RX:H TX:V
P
RX:H TX:V
P
RX:H TX:V
P
ü Startup
ü Initialize Antenna Information
("Intellian XXXX" will appear. The "XXXX" is the model name.)
ü Initialize Elevation Angle
ü Initialize Azimuth Angle
ü Antenna's Status
(in Search 1 (Global Search), Search 3 (Local Search),
Tracking, Beam Switching, Blocking)
56
Operating ACU
