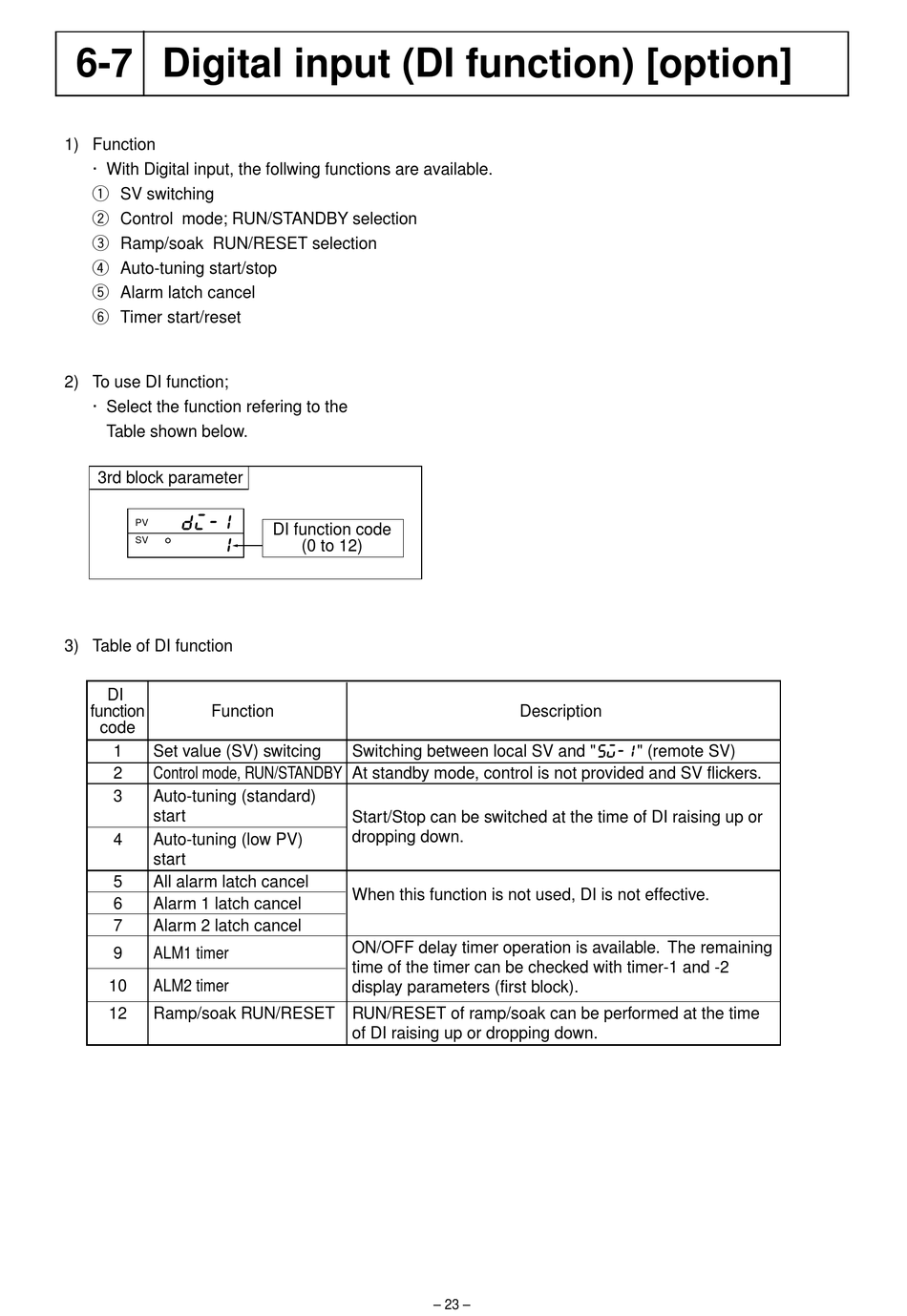

6-7 Digital input (DI function) [option]

1) Function
· With Digital input, the follwing functions are available.
q SV switching
w Control mode; RUN/STANDBY selection
e Ramp/soak RUN/RESET selection
r Auto-tuning start/stop
t Alarm latch cancel
y Timer start/reset
2) To use DI function;
· Select the function refering to the
Table shown below.
3rd block parameter
PV
SV
3) Table of DI function
DI
function Function
code
1 Set value (SV) switcing
2 Control mode, RUN/STANDBY At standby mode, control is not provided and SV flickers.
3 Auto-tuning (standard)
start
4 Auto-tuning (low PV)
start
5 All alarm latch cancel
6 Alarm 1 latch cancel
7 Alarm 2 latch cancel
9 ALM1 timer
10 ALM2 timer
12 Ramp/soak RUN/RESET RUN/RESET of ramp/soak can be performed at the time
DI function code
(0 to 12)
Switching between local SV and "
Start/Stop can be switched at the time of DI raising up or
dropping down.
When this function is not used, DI is not effective.
ON/OFF delay timer operation is available. The remaining
time of the timer can be checked with timer-1 and -2
display parameters (first block).
of DI raising up or dropping down.
– 23 –
Description
" (remote SV)
