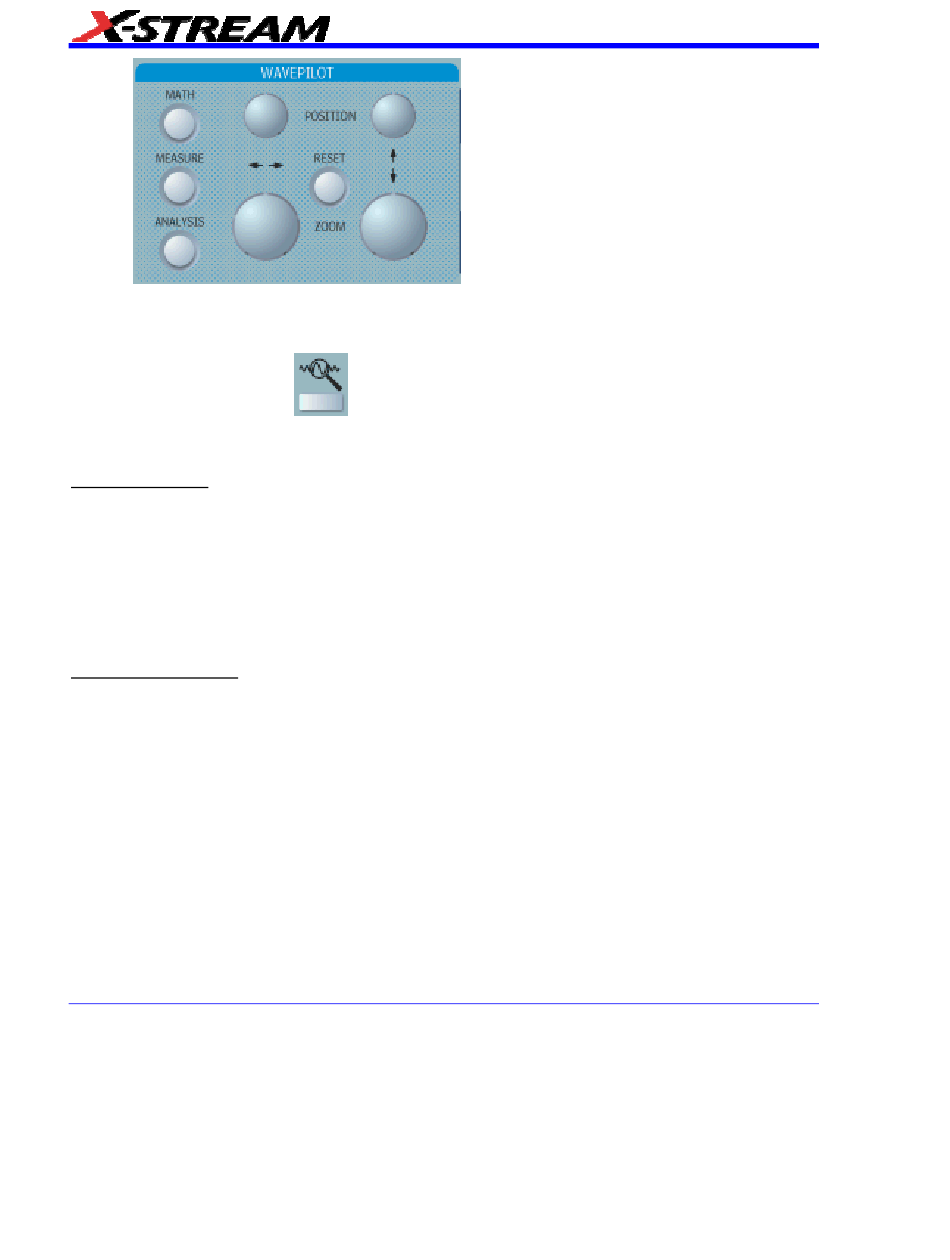

6. Turn the front panel Zoom knobs to control the boundaries of the zoom.

To Zoom Multiple Waveforms Quickly

Press the QuickZoom button
to create a zoom of each displayed input channel waveform. Each zoom will be displayed in its own
grid.
To Turn Off Zoom
1. Touch the math function trace label for the zoom you want to turn off.
2. Touch the Trace On checkbox to delete the check mark and disable the zoom trace.

Multi-Zoom

The Multi-zoom feature creates time-locked zoom traces for only the waveforms that you choose to
include. The zooms are of the same X-axis section of each waveform. Thus, as you scroll through a
waveform, all included zooms scroll in unison.
To Set Up Multi-zoom
1. In the menu bar, touch Math, then Math Setup... in the drop-down menu.
2. Verify that the math function selected for each Fx position you want to include is zoom. If
you need to change the math function for any Fx position, simply touch the Fx button and
select Zoom from the Select Math Operator menu.
3. Touch the On checkbox to display each zoom you want to include in the multi-zoom.
4. Touch the Multi-Zoom Setup button. The Multi-Zoom dialog opens.
5. Touch the Multi-zoom On checkbox to enable Multi-zoom. Then touch the Include
checkbox for each zoom trace you want to include in the time-locked multi-zoom:
128
on the front panel. Math function traces F5 to F8 will be used
