Lockly SECURE Installation Manual page 9

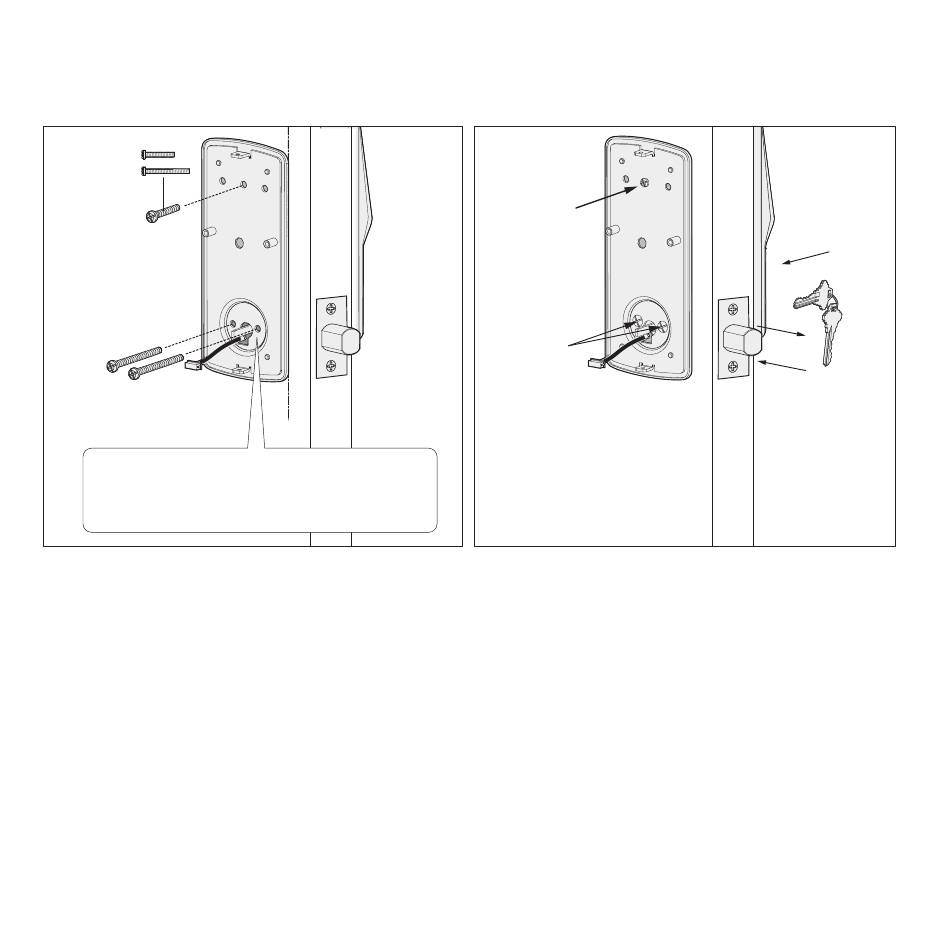

STEP 5 (CON'TD): INSTALLING THE EXTERIOR ASSEMBLY
H1
H2
H
*
I(2X)
Before screwing check the vertical
alignment for the mounting plate and
exterior assembly.
* H is only required if you drilled a hole in your door. If you did not drill a hole in your
door, please do not insert H.
Depending on your door thickness, use H1 or H2 screws for the doors.
Doors with thickness of 35-43mm, use H1. Doors with thickness of 43-50mm, use H2.
After installation, please use the physical key to test the door latch. If the bolt does not
retract or extend smoothly, adjust the screws to ensure the bolt system works smoothly.
H
*
I(2X)
