Front and Rear Panel Features

Front and Rear Panel Features

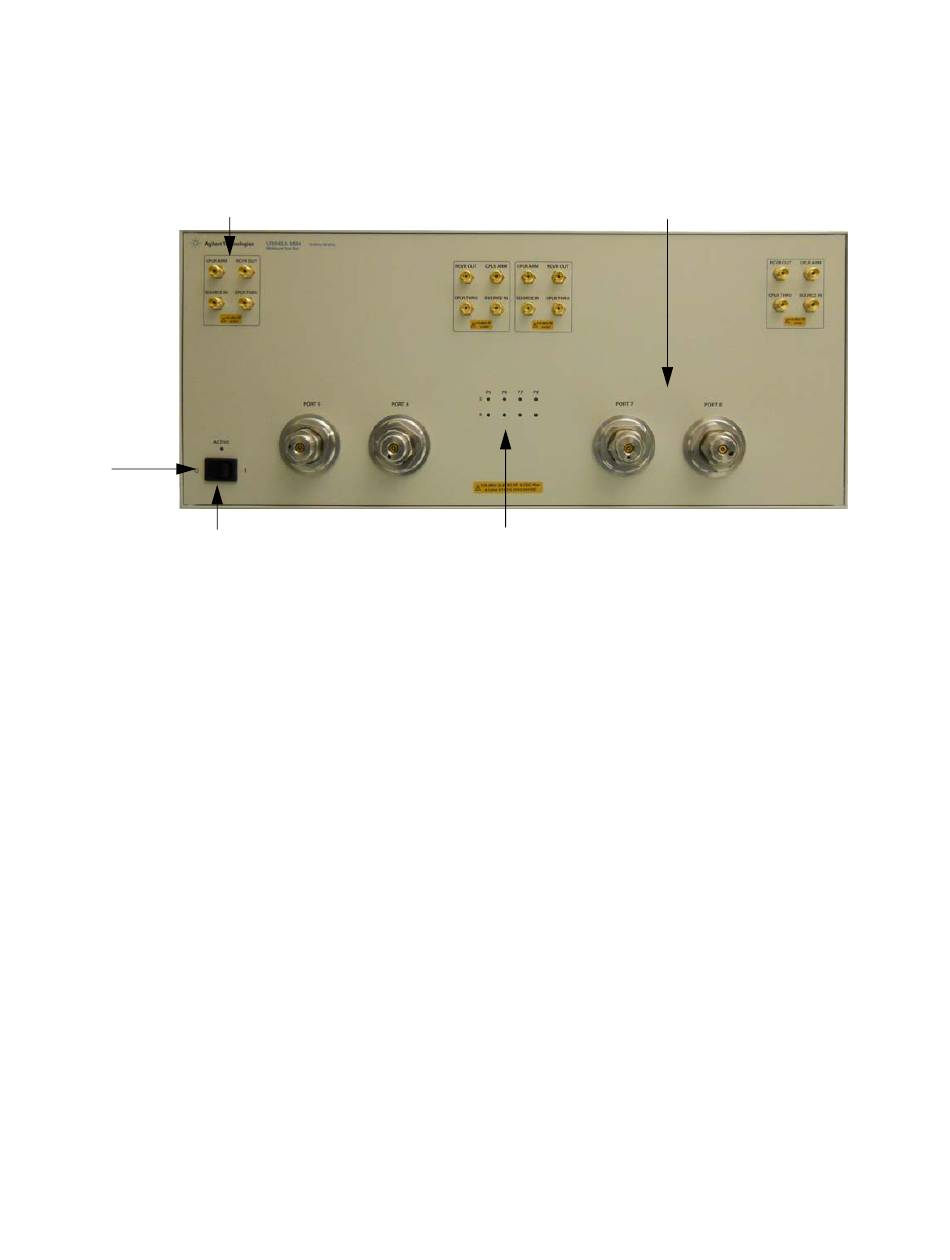

Figure 2 U3045AM04 Front Panel
Access Ports
Active
LED
Standby Switch
Test Ports – 2.4 mm Bulkhead (male)
— Port 5 – 8
Access Ports – 1.85 mm (female)
— RCVR OUT
— CPLR ARM
— CPRL THRU
— SOURCE IN
Test Port's LEDs
An illuminated LED indicates an active port in Source or Receiver mode. On the
front panel "S" indicates Source test ports and "R" indicates Receiver test
ports.
Standby Switch
Note that this switch is Standby only, not a line switch. The main power cord
can be used as the system disconnecting device. It disconnects the mains
circuits from the mains supply.
10
5 to 8 Test Ports
Test Port LED's
Keysight U3045AM04 User's and Service Guide
