DeVilbiss COMPACT-X Service Manual page 5

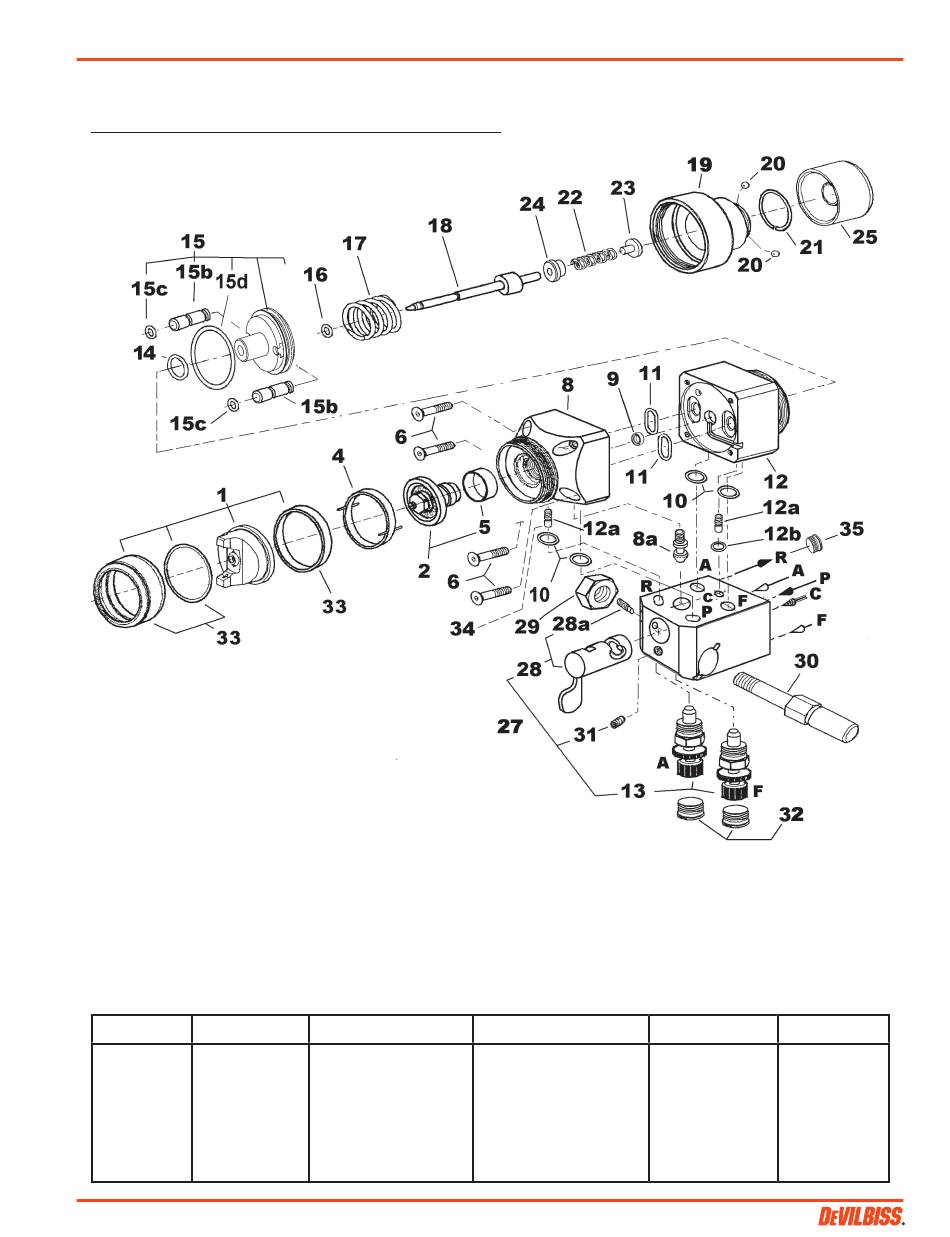

COMPACT-X AUTOMATIC SPRAY GUN
REF. ONLY:
• SPA-60X-K (includes items 14, 15b, 15c, 15d, 16)
• SPK-104 (includes items 15c–qty.10, 15d–qty.5, 16–qty.10, 14–qty.5)
• SPK-105 (includes items 17, 22, 23, 24)
• SPK-107 (includes items 9, 11)
NOTE: SPN-8 Torx Wrench for item 6 shipped with gun.
SPA-30 Hex Wrench for item 34 shipped with gun.
SPN-8 and SPN-30 not shown on exploded view above.
COMPACT-X AUTOMATIC GUN
EXAMPLE OF PART NUMBERING SYSTEM
CMAX–B85PM–507
CMAX– B
Compact-X B = Blue (HVLP)
Automatic
G = Green
Manifold Type
(Trans-Tech)
Spray Gun
No Letter =
Conventional
SB-2-584-H (4/2016)
85 P
85 = .85 mm Fluid Nozzle P = Plastic Needle
and Needle
– or no letter = Stainless
00 = No Fluid Nozzle,
No Needle
5 / 16
See page 10 for standard set-ups.
See page 11 for hook-up schematic.
M
M = With Manifold
O = No Manifold
Steel
Needle
EN
507
507 = Air Cap
