DeVilbiss COMPACT-X Service Manual page 11

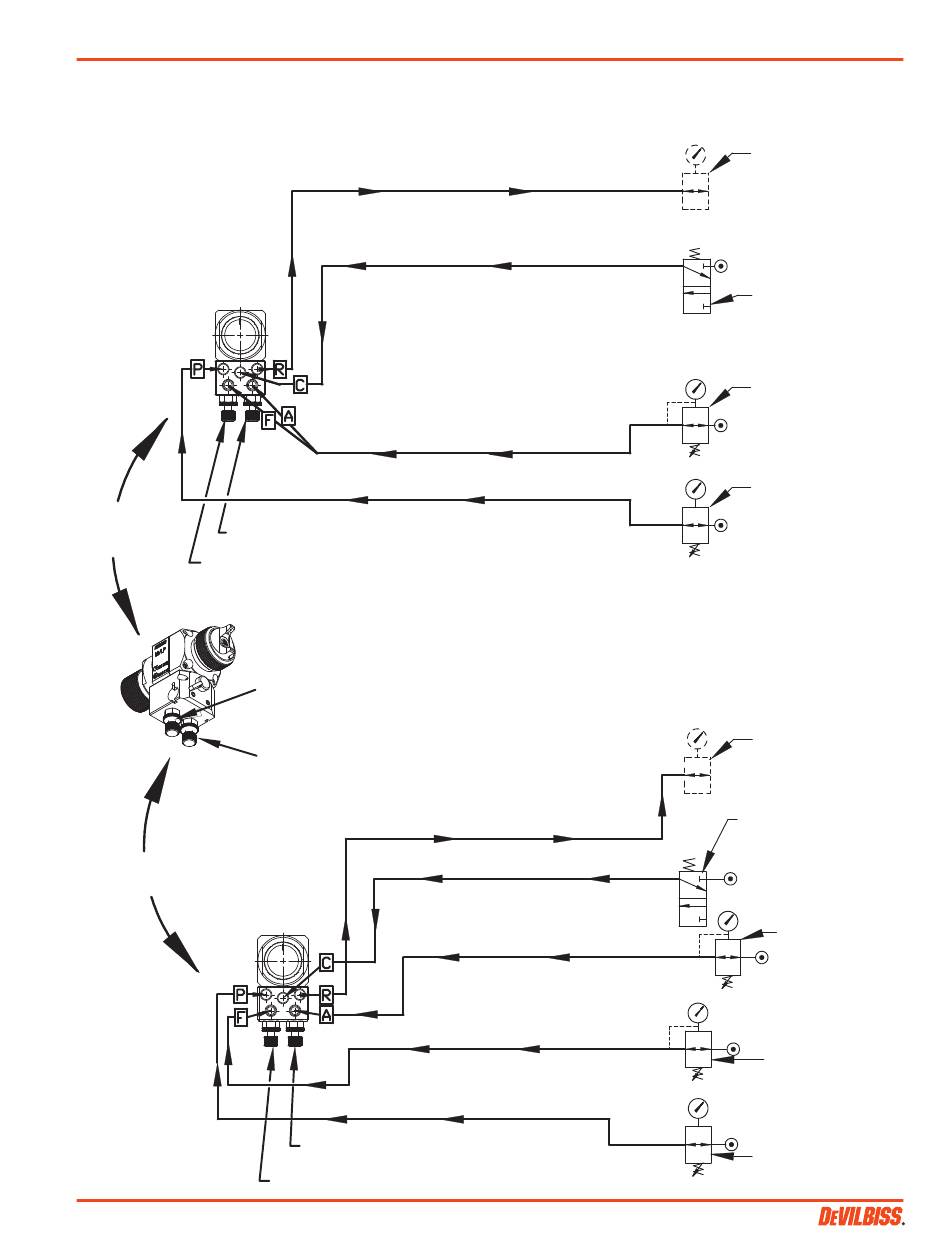

COMPACT-X AUTOMATIC GUN — TYPICAL AIR & FLUID DIAGRAMS
REAR
ATOMIZING ADJUSTMENT VALVE
VIEW
FAN ADJUSTMENT VALVE
REAR
VIEW
SB-2-584-H (4/2016)
COMBINED FAN & ATOMIZING AIR
(STANDARD GUN HOOK-UP)
FLUID RETURN (IF USED)
CYLINDER AIR SUPPLY
FAN & ATOMIZING AIR SUPPLY
SEPARATE FAN & ATOMIZING AIR
(OPTIONAL GUN HOOK-UP)
ATOMIZING ADJUSTMENT VALVE
FAN ADJUSTMENT VALVE
FLUID RETURN (IF USED)
CYLINDER AIR SUPPLY
ATOMIZING AIR SUPPLY
ATOMIZING ADJUSTMENT VALVE
FAN ADJUSTMENT VALVE
(COMBINED)
FLUID SUPPLY
FAN AIR SUPPLY
FLUID SUPPLY
11 / 16
EN
BACK PRESSURE
VALVE
CYLINDER AIR
VALVE (3 WAY)
AIR REGULATOR
(FAN & ATOMIZING
AIR COMBINED)
FLUID
REGULATOR
BACK PRESSURE
VALVE
CYLINDER AIR VALVE
(3 WAY)
ATOMIZING AIR
REGULATOR
FAN AIR
REGULATOR
FLUID
REGULATOR
