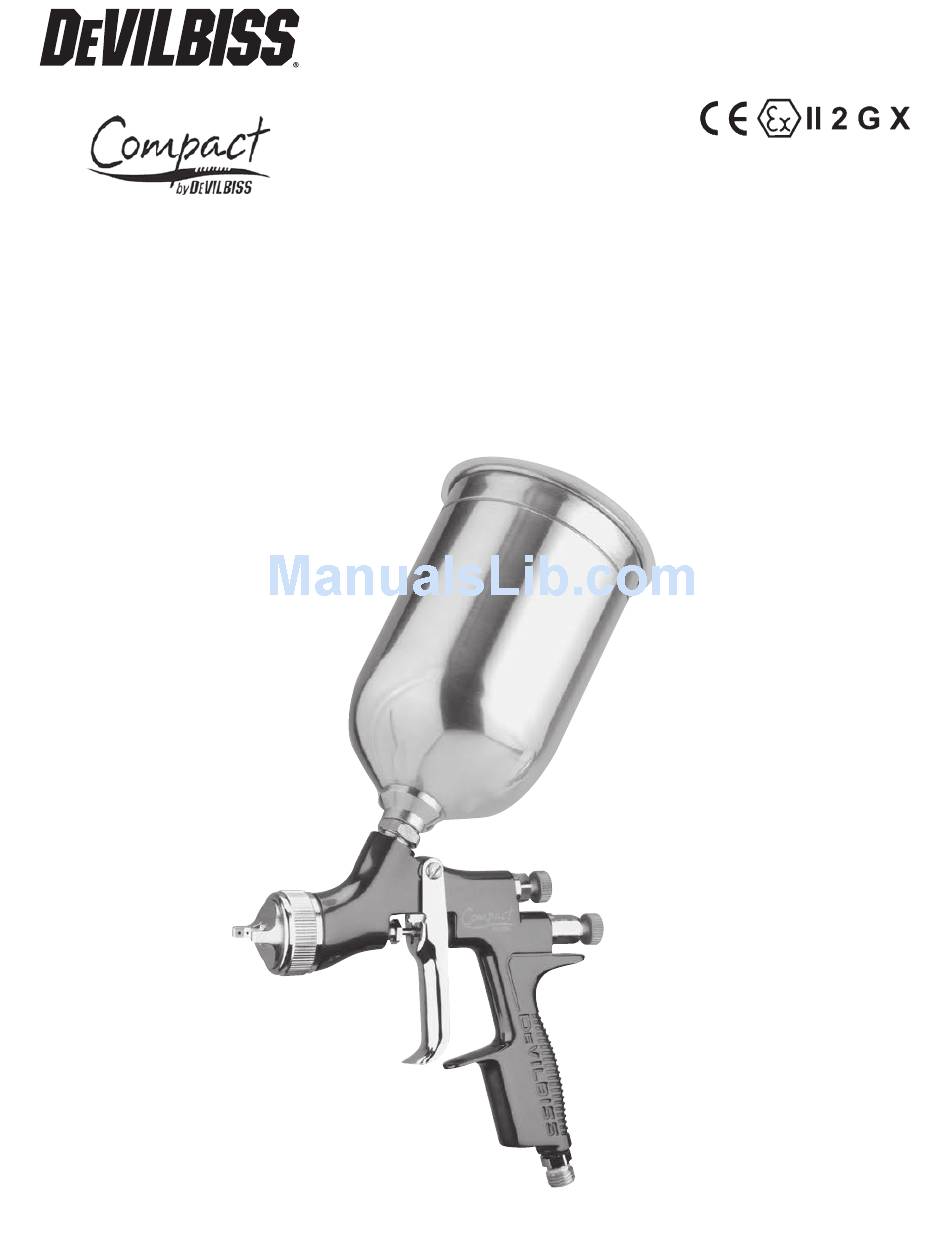

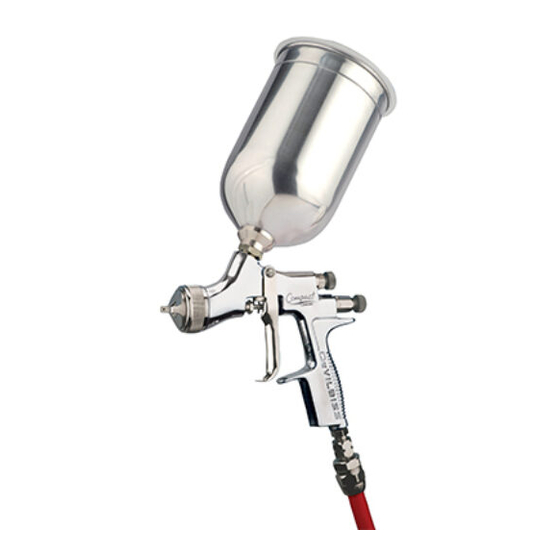

  • Page 1 Service Bulletin SB-2-543-F Replaces SB-2-543-E OperatiOn Manual HVlp GraVity Feed SprayGun English: Pages 2-9 Manual de Operación cOMpact – piStOla pulVerizadOra pOr GraVedad HVlp Español: Páginas 10-17...
  • Page 2: Safety Warnings

    – When sprayed, certain materials may be poisonous, your local Distributor or DeVilbiss direct. create irritation or be otherwise harmful to health. Always read all labels and safety data sheets for the material before spraying and follow any recommendations.
  • Page 3: Parts List

    SB-2-543-F Page 3 Patent No. 2372465 (GB) GFC-502 GFC-501 1 Liter 20 oz. (SB-4-043) (SB-4-261) moDel part numBer partS lISt com-G506B-14-02 Example: ref. Description part number qty. options Aircap Air Cap/Retaining ring SP-100-***-K 506, 507, 508 e.g *** = 506 COM-506, COM-507 or COM-508 Blue anodized Nozzle...
  • Page 4: Installation

    Page 4 SB-2-543-F operatIon preVentatIVe maIntenance SpecIFIcatIon Mix coating material to manufac- Turn off air and relieve pressure in air supply connection: turers instructions. the supply lines, or if using QD Universal 1/4" BSP and NPS system, disconnect from airline. Fill the cup with the required amount of material.
  • Page 5 SB-2-543-F Page 5 Remove Adjusting Knob (7), Loosen Housing (10). Remove Housing (10) and Spring (8), and Needle (9). Airvalve Spring. Remove Valve (11). Using Service Tool SPN-7, Remove Valve Seat. engage groove behind the Valve Seat. Push out the Front Airvalve Turn the Gun upside down Fit New Front Seal to Service Seal with a finger.
  • Page 6 Page 6 SB-2-543-F 12. Fit Valve Seat to Gunbody. 13. Remove Rear Airvalve Seal 14. Fit new Seal to Service Tool. from housing (10) with a hooked instrument. 15. Fit Seal to Housing (10). 16. Replace Valve (11). 17. Replace Valve Spring and screw in Housing (10).
  • Page 7 SB-2-543-F Page 7 trouBleSHootInG conDItIon cauSe correctIon Horn holes plugged. Clean. Ream with non-metallic point. Heavy top or Obstruction on top or bottom of fluid tip. Clean. bottom pattern Cap and/or tip seat dirty. Clean. Left or right side horn holes plugged. Clean.
  • Page 8 Page 8 SB-2-543-F trouBleSHootInG (continued) conDItIon cauSe correctIon Fluid dripping or leaking from Cup gasket worn or missing below cup. Tighten. bottom of cup Replace cup gasket. Cup threads dirty. Clean. runs and sags Too much material flow. Adjust gun or reduce fluid flow. Material too thin.
  • Page 9 1/4" NPT(M) DPC-600 Disposable Cup 34 oz – Kit of 32 Fits Compact gun only. DPC-31 Adapter Spn-5 Wrench Compatible with DeVilbiss high flow quick disconnects. Contains all neces- sary tip, hose and nut sizes used on or Sp-402-K with gun.
  • Page 10: Advertencias De Seguridad

    B. Holt, Director General durante periodos de tiempo prolongados. 30/6/2003 DeVilbiss se reserva el derecho a modi- nIVeleS SonoroS ficar las especificaciones del equipo sin previo aviso.
  • Page 11 SB-2-543-F Página 11 Patente Nº 2372465 (GB) GFC-502 GFC-501 1 Litro 20 oz. (SB-4-043) (SB-4-261) moDelo-número pIeZa lISta De pIeZaS Ejemplo: com-G506B-14-02 nº número ref. Descriptión de pieza cant opciones Casquillo de aire Casquillo de aire / Anillo de retención SP-100-***-K 506, 507, 508 ej.
  • Page 12: Instalación

    Página 12 SB-2-543-F operacIón 14. Cierre siempre el suministro de aire eSpecIFIcacIón y alivie la presión cuando la pistola Mezcle el material de recubrimiento no se esté utilizando. conexión del suministro de aire : siguiendo las instrucciones del fabri- Universal 1/4" BSP and NPS cante.
  • Page 13 SB-2-543-F Página 13 Retire el pomo de ajuste (7), Afloje el alojamiento (10). Retire el alojamiento (10) y el muelle (8), y la aguja (9). el muelle de la válvula de aire. Retire la válvula (11). Usando la herramienta de Retire asiento manteni-miento...
  • Page 14 Página 14 SB-2-543-F 12. Coloque asiento 13. Retire la junta de la válvula 14. Instale una junta nueva en la válvula en el cuerpo de la de aire del alojamiento (10) herramienta manten- pistola. con un instrumento que imiento. tenga gancho. 15.
  • Page 15 SB-2-543-F Página 15 localIZacIón y reparacIón De proBlemaS conDIcIón cauSa correccIón patrón pesado en Agujeros de la horquilla obstruidos. Limpie. Escariar con punta no metálica. la parte superior Obstrucción en la parte superior o inferior de la Limpie. o inferior punta de fluido.
  • Page 16 Página 16 SB-2-543-F localIZacIón y reparacIón De proBlemaS (continuará) conDIcIón cauSa correccIón el fluido se escapa o gotea desde la parte Cubeta floja en la pistola. Apriete. Guarnición de la cubeta gastada o falta inferior de la cubeta. Reemplace la guarnición de la cubeta. debajo de la cubeta.
  • Page 17 Para pistolas compactas únicamente. DPC-31 Adaptador Compatible con dispositivos de llave Spn-5 desconexión rápida de alto flujo Contiene todo los DeVilbiss. tamaños necesarios de punta, manguito y tuerca utilizados Sp-402-K en o con la pistola. Válvula reguladora de aire CUP SYSTEM Sistema de cubeta Instálela en la pistola para...
