SB-E-2-534
ISS.02
Operation Manual
Advanced - Conventional Gravity
Feed Spraygun
E
E
P 1 - 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SB-E-2-534 and is the answer not in the manual?

Questions and answers

Summary of Contents for DeVilbiss SB-E-2-534

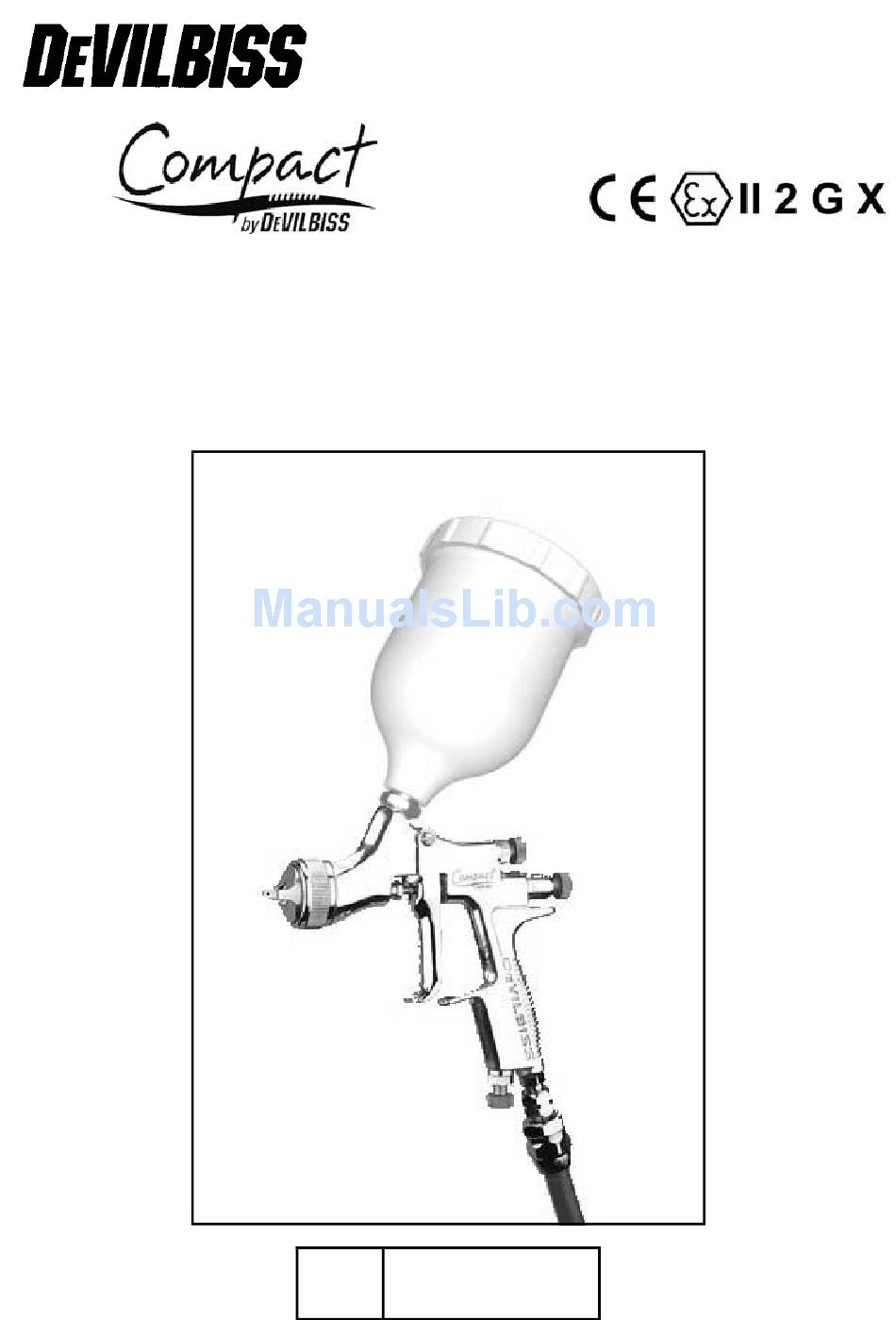

  • Page 1 SB-E-2-534 ISS.02 Operation Manual Advanced - Conventional Gravity Feed Spraygun P 1 - 10...
  • Page 2: Ec Declaration Of Conformity

    Operation Manual COMPACT – Gravity Feed Spraygun Important Read and follow all instructions and Safety Precautions before using this equipment Description The Compact Gravity feed Spraygun Kit complies to ATEX regulations 94/9/EC, protection II 2 G X, Suitable for use in Zones 1 and 2 level;...
  • Page 3: Safety Warnings

    SAFETY WARNINGS Always wear eye protection when Fire and explosion spraying or cleaning the spraygun Solvents and coating materials Gloves must worn when can be highly flammable or spraying cleaning combustible when sprayed. ALWAYS equipment refer to the coating material suppliers Training –...
  • Page 4: Parts List

    Parts List Ref. No Description Part Number Options Air Cap/Retaining ring SP-100-430-K COM-510 13,16,18,20 Nozzle SP-200S-**-K e.g ** =16 =1.6 mm Separator SP-626-K5 Packing GTI-445-K2 Spreader Valve SP-403-K Stud and Screw GTI-408-K5 Needle Adjusting Screw SP-614-K Spring SP-622-K5 13,16,18,20 Needle SP-300S-**-K e.g ** =16 =1.6 mm Airvalve housing + seal...
  • Page 5: Specification

    Patent No 2372465 (GB) Specification Air supply connection - Universal “ BSP and NPS Maximum static Air inlet pressure - = 12 bar (175 psi) Nominal gun Air inlet pressure - 3 bar (44 psi) with gun triggered Maximum Service temperature 40°C Gun Weight - 583 g...
  • Page 6: Installation

    Installation Important: To ensure that this equipment earth should be checked with an reaches you in first class condition, ohmeter. A resistance of less than protective coatings have been used. Ohms is recommended. Flush the equipment through with a Air supply should be filtered and suitable solvent before use.
  • Page 7: Replacement Of Parts

    clean and free from damage. Build Lubrication – stud/screw (6), needle up of dried paint can distort the (9) and air valve (11) should be spray pattern. oiled each day. Replacement of Parts Nozzle (2) and Needle (9) – Remove 10.
  • Page 8 © 2003 ITW Finishing Systems and Products...
  • Page 9 © 2003 ITW Finishing Systems and Products...
  • Page 10 © 2003 ITW Finishing Systems and Products...
  • Page 11 Accessories Spanner – order SPN-5 Cleaning Brush – order 4900-5-1-K3 Regulator/Gauge Attachment - order HAV-501-B Pressure gauge Attachment – order GA-515 Gun Mounted Regulator – order DVR-501 Spraygun Lubricant - order GL-1-K10 © 2003 ITW Finishing Systems and Products...
  • Page 12 ITW Finishing Systems and Products Ringwood Road, Bournemouth, BH11 9LH, England. Tel. No. (01202) 571111 Telefax No. (01202) 581940, Website address http://www.itweuropeanfinishing.com ITW Oberflächentechnik GmbH & Co. KG Justus-von-Liebig-Straße 31 63128 Dietzenbach Tel (060 74) 403-1 Telefax: (060 74) 403300 Website address http://www.itw-finishing.de ITW Surfaces Et Finitions 163-171 avenue des Auréats B.P.

This manual is also suitable for:

Compact com-g430-16
