Technical Bulletin
Compact MINI range of Gravity Spray Guns
5 9 2 4 N E 1 1 2 t h A v e .
P o r t l a n d , O R 9 7 2 2 0
w w w . f i n i s h i n g - t e c h n o l o g i e s . c o m
for spot repairs and small areas
5 0 3 - 2 2 2 - 9 7 4 1
8 0 0 - 8 2 4 - 3 3 6 9
Service Bulletin
EN
SB-2-858
Replaces SB-2-858
Advertisement
Table of Contents
Related Manuals for DeVilbiss Compact MINI
Summary of Contents for DeVilbiss Compact MINI

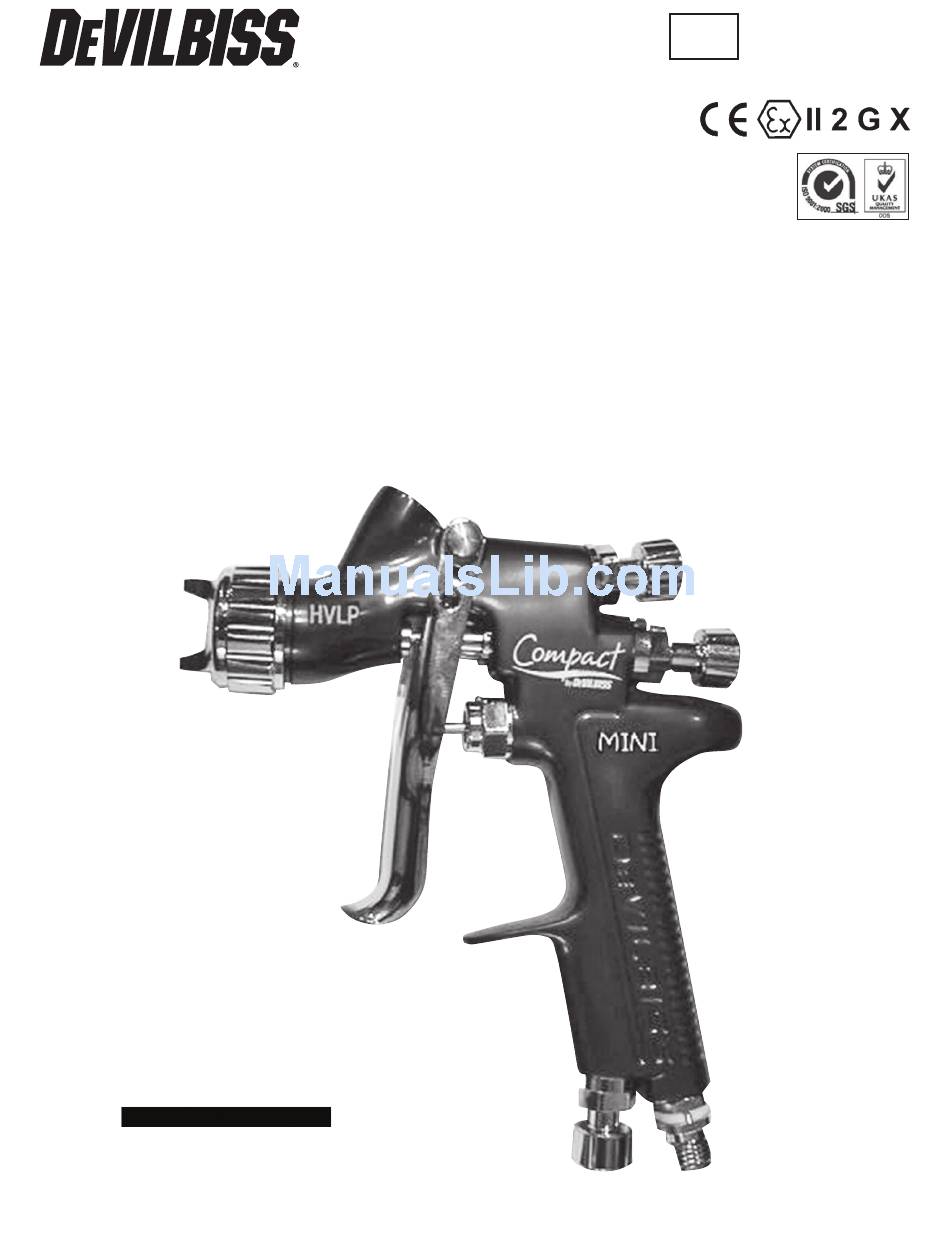

- Page 1 SB-2-858 Replaces SB-2-858 Technical Bulletin Compact MINI range of Gravity Spray Guns for spot repairs and small areas 5 9 2 4 N E 1 1 2 t h A v e . 5 0 3 - 2 2 2 - 9 7 4 1...
-
Page 2: Table Of Contents
Page 2 SB-2-858 Table of Contents Topic Page EC Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Part Numbers . -
Page 3: Ec Declaration Of Conformity
COMM-RS1-08 Compact MINI Round Spray Trans-Tech ® 0 .8 Operational Description This Compact MINI Spray Gun is a professional quality gun designed with both high volume, low pressure (HVLP) technology or Trans-Tech ® technology . HVLP Technology reduces overspray and limits air cap pressure to 0 .7 bar (10 psi) (complies with rules issued by SCAQMD and other air quality authorities) . -
Page 4: Kit Contents
Page 4 SB-2-858 KIT CONTENTS (All MODElS) Compact MINI Gravity Feed Spraygun Torx/Flat Blade Screwdriver Compact MINI Gravity Feed Cup Small Cleaning Brush Cup Filter Large Cleaning Brush Funnel Service Bulletin Spanner (6mm hex and 10mm A/F) CONSTRuCTION fEATuRES Air Cap... -
Page 5: Safety Precautions
SB-2-858 Page 5 SAfETY PRECAuTIONS This manual contains information that is important for you to know and understand . This information relates to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS . To help you recognize this information, we use the following symbols . Please pay particular attention to these sections . -
Page 6: Parts List
Page 6 SB-2-858 PARTS lIST REF. REF. DESCRIPTION PART NO. QTY. DESCRIPTION PART NO. QTY. Air Cap Retaining Ring Air Valve Poppet Slip Ring Air Valve Spring Air Cap Air Valve Spring Pad Retaining Ring Seal Air Valve Seal SN-34-K5 Air Cap &... -
Page 7: Exploded Parts View
SB-2-858 Page 7... -
Page 8: Installation, Operation, Preventive Maintenance & Cleaning
Page 8 SB-2-858 INSTAllATION 10 . If finish is too wet, reduce fluid CAuTION flow by turning fluid adjusting To prevent damage to fluid For maximum transfer efficiency, knob (18) clockwise . If atomization nozzle (8) or fluid needle do not use more pressure than is is too coarse, increase inlet air (15), be sure to either 1) pull necessary to atomize the material... -
Page 9: Parts Replacement/Maintenance
SB-2-858 Page 9 PARTS REPlACEMENT/MAINTENANCE AIR VAlVE INSTRuCTIONS Servicing Air Valve Reasons to service air valve: A) Air valve not functioning correctly (may need cleaning). B) Routine maintenance. C) Air leaks (advise replacement, see p10) 1 . Remove trigger using the tool supplied or TORX T20 key . -
Page 10: Replacing Air Valve
Page 10 SB-2-858 PARTS REPlACEMENT/MAINTENANCE AIR VAlVE INSTRuCTIONS Replacing Air Valve Reasons to replace air valve: A) Air leak through the gun. B) Air valve not operating correctly. 1 . Remove trigger using TORX (T20) key provided in the kit . (See figs 13 & 14) 2 . -
Page 11: Needle Packing, Fluid Insert, Spreader Valve Assembly
SB-2-858 Page 11 PARTS REPlACEMENT/MAINTENANCE NEEDlE PACKING INSTRuCTIONS Replacing Needle Packing 13 . Remove trigger using TORX (T20) driver . (See figs 25 & 26) 14 . Remove fluid adjusting knob and needle spring with spring pad from gun . (See figs 27 & 28) 15 . -
Page 12: Spray Head Seal
Page 12 SB-2-858 PARTS REPlACEMENT/MAINTENANCE SEPARATOR SEAl INSTRuCTIONS Replacing Separator Seal 1 . Remove air cap and retaining ring . (See fig 37) 2 . Remove fluid adjusting knob, spring, and spring pad . (See figs 38 & 39) 3 . Remove fluid needle from gun body . (See fig 40) 4 . -
Page 13: Chart 1 - Air Caps, Chart 2 - Fluid Nozzles & Fluid Needles
SB-2-858 Page 13 PARTS REPlACEMENT/MAINTENANCE ChART 1 – AIR CAPS PART NO. fOR MARKING ON RECOMMENDED AIR flOW TEChNOlOGY AIR CAP AIR CAP INlET PRESSuRE (l/min) COMM-100-HS1 HVLP 29 .0 psi (2 .0 bar) COMM-100-TS1 TRANS-TECH ® 29 .0 psi (2 .0 bar) COMM-100-RS1 TRANS-TECH ®... -
Page 14: Troubleshooting Possible Problems In Operation
Page 14 SB-2-858 TROuBlEShOOTING POSSIBlE PROBlEMS IN OPERATION CONDITION CAuSE CORRECTION heavy top or Horn holes plugged . Clean . Ream with non-metallic point . bottom pattern Obstruction on top or bottom of fluid Clean . nozzle . Cap and/or nozzle seat dirty . Clean . - Page 15 SB-2-858 Page 15 TROuBlEShOOTING POSSIBlE PROBlEMS IN OPERATION Cup lid loose . Push in or replace . fluid leaking or dripping from Dirty cup or lid . Clean . cup lid Cracked cup or lid . Replace cup and lid . Wind fluid adjusting knob out or Inadequate material flow change to larger fluid nozzle size .
-
Page 16: Accessories
Page 16 SB-2-858 ACCESSORIES 72-2332 42884-214-K5 71-31101 SRI-478-K12 DeKups Swivel Cleaning Brush Ergoflex hose with Disposable Cup Disposables 1/4" fittings Kit of 12 DPC-602 9 oz Disposable Cups DPC-607 9 oz . Frames DPC-23 Disposable Cup Adapter WARRANTY This product is covered by DeVilbiss' 1 Year Limited Warranty . DeVilbiss Worldwide Sales and Service listing: www.devilbiss.com North American Office Toll Free Customer Service...
