DeVilbiss COMPACT-X Service Manual page 15

Automatic spray gun conventional (silver), trans-tech (green) & hvlp (blue)

Available languages

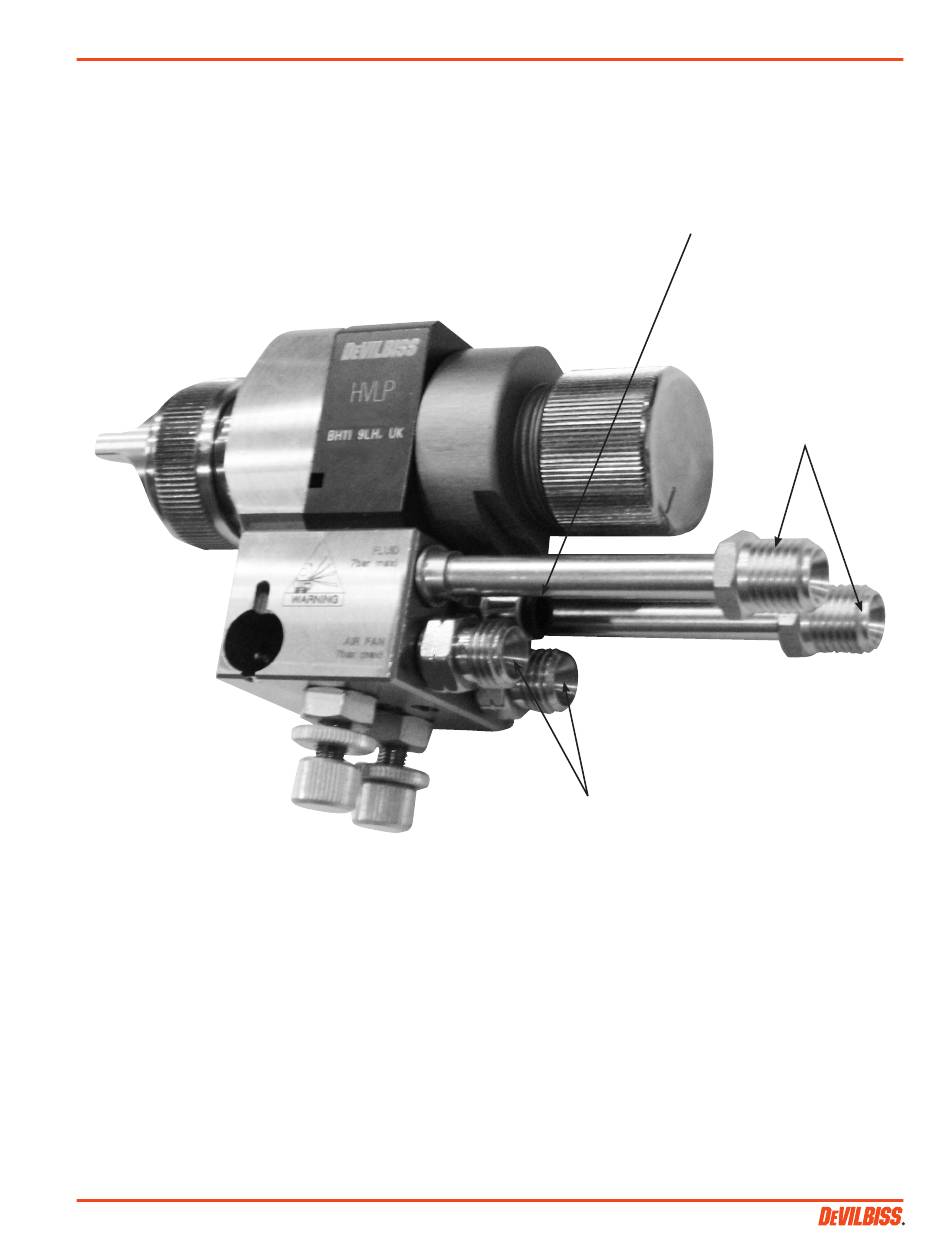

6-533 FITTING KIT WITH 1/4" NPS (m) for COMPACT AUTOMATIC "X" GUN

6 MM O.D. TUBE CONNECTION

FOR CYLINDER AIR

1/4" NPS (M)

CONNECTION (2)

FOR FLUID SUPPLY

AND RETURN

1/4" NPS (M) CONNECTION

(1) FOR ATOMIZING AIR

(1) FOR FAN AIR

NOTE: ALL MANIFOLD AIR AND FLUID PORTS ARE 1/8" BSPP (m)

BSPP = BRITISH STRAIGHT PIPE PARALLEL

SB-2-584-H (4/2016)

15 / 16
