Siemens DataNET Hub (DNH) User Manual page 18

DataNET Hub Specifications,

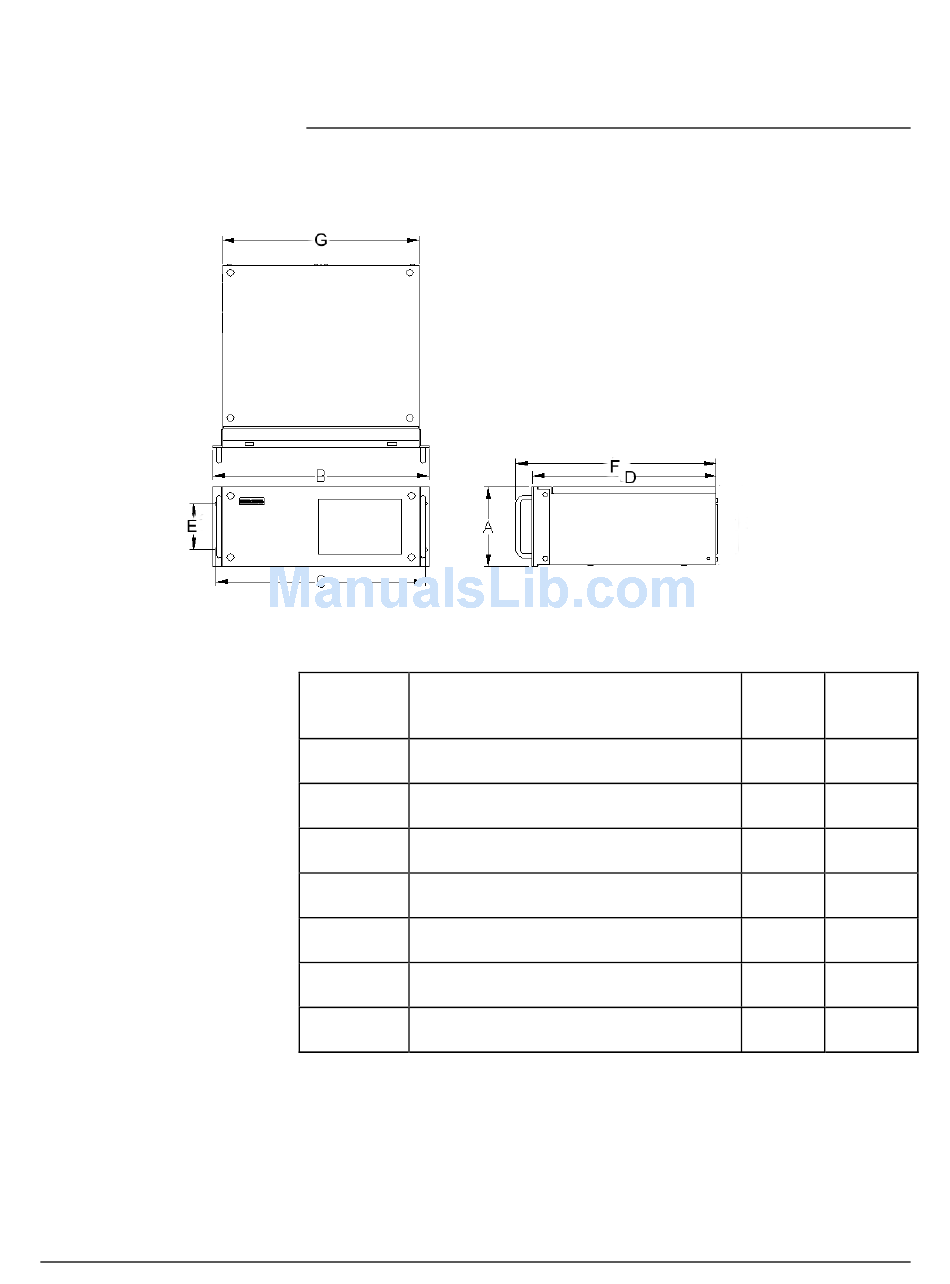

Figure 1-5. Rack Mount
Dimensions
Dimension Table
10 • Introduction
Continued
Figure 1-3 Description
A Rack Height
B Rack Total Width
C Rack Mounting Holes Spacing
D Rack Depth Case Only
E Rack Handle
F Rack Depth with Handles
G Case Width
U.S. Metric
Inches mm
6.97 177
19 483
18.43 468
16.26 413
6.83 174
17.63 448
17.32 440
2000585-001
