DataNET Hub Specifications,

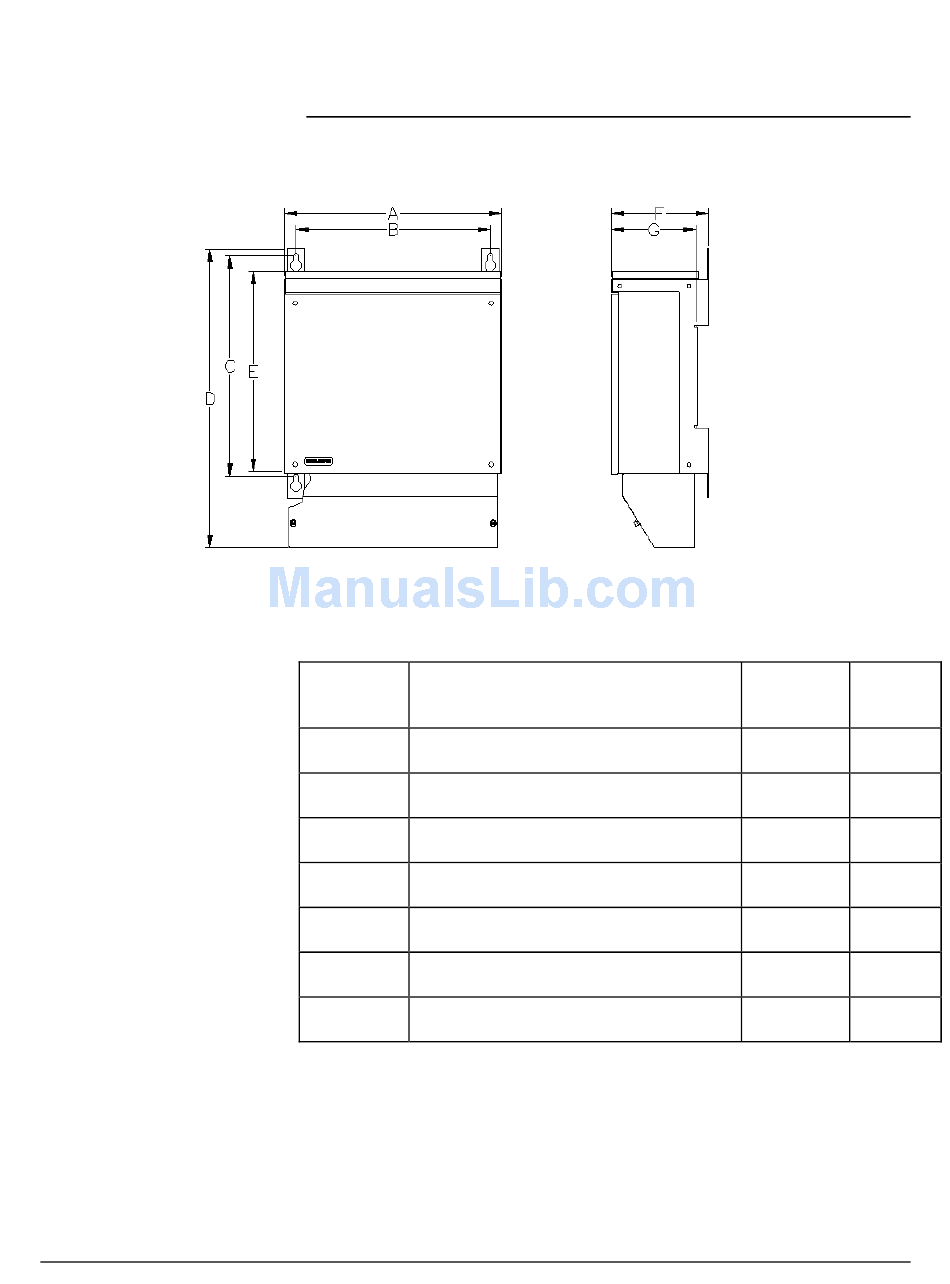

Figure 1-6. Wall Mount
Dimensions
Dimension Table
2000585-001
Continued
Figure 1-4 Description
A Wall Width
B Wall Mount Holes Horizontal Spacing
C Wall Mount Holes Verticle Spacing
D Wall Height Including Cable Housing
E Wall Height w/o Cable Housing
F Wall Mount Total Depth
G Wall Mount Depth Case Only
U.S. Metric
Inches mm
17.48 444
15.59 396
17.72 450
24.04 611
16.32 415
7.81 199
6.91 176
Introduction • 11
