Siemens DataNET Hub (DNH) User Manual page 64

Establishing a Connection,
Remote Connection
Log On
56 • • • • Data Communications Setup
Continued
3. At the > > > > prompt type: login password and press ↵ ↵ ↵ ↵ Enter.

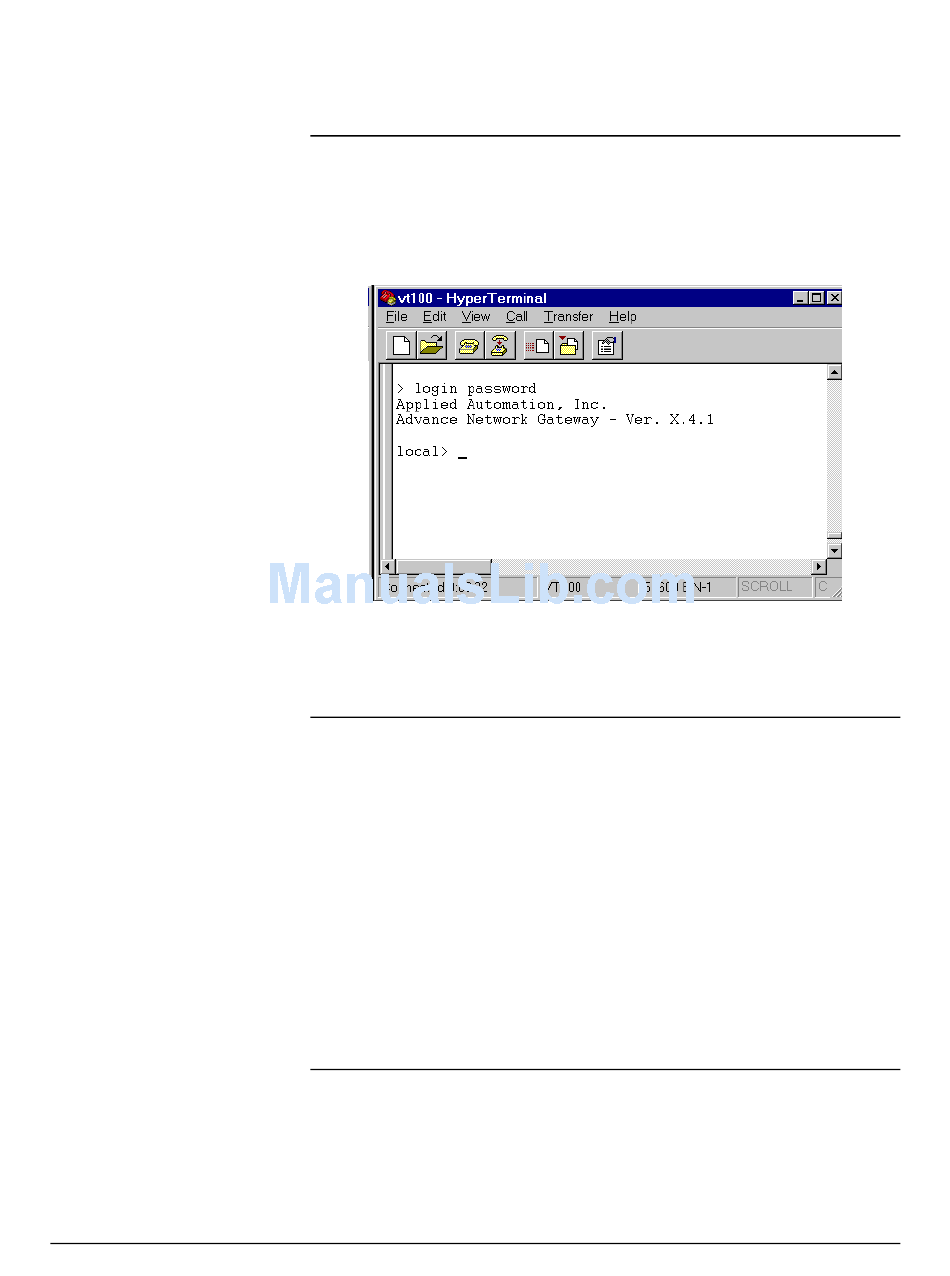

The Connect Screen will appear with the login information and the
local prompt. The local prompt indicates that you are communicating
with the DNH connected directly to the PC.
You are now ready to configure the DNH 'A' hub or 'B' hub with its own
Network Address. go to page 57.
If your PC is connected to one of the DNH configuration ports you can
connect to any other hub on the same network if you know the IP ad-
dress of the DNH.
1. Open Windows HyperTerminal program on your PC.
2. Press ↵ ↵ ↵ ↵ Enter twice, the Command Request dialog box will appear.
3. At the > > > > prompt type: login password [IP Address].
Once the password is verified the system responds with the login infor-
mation and displays the remote prompt which includes the IP address of
the connected hub.
2000585-001
