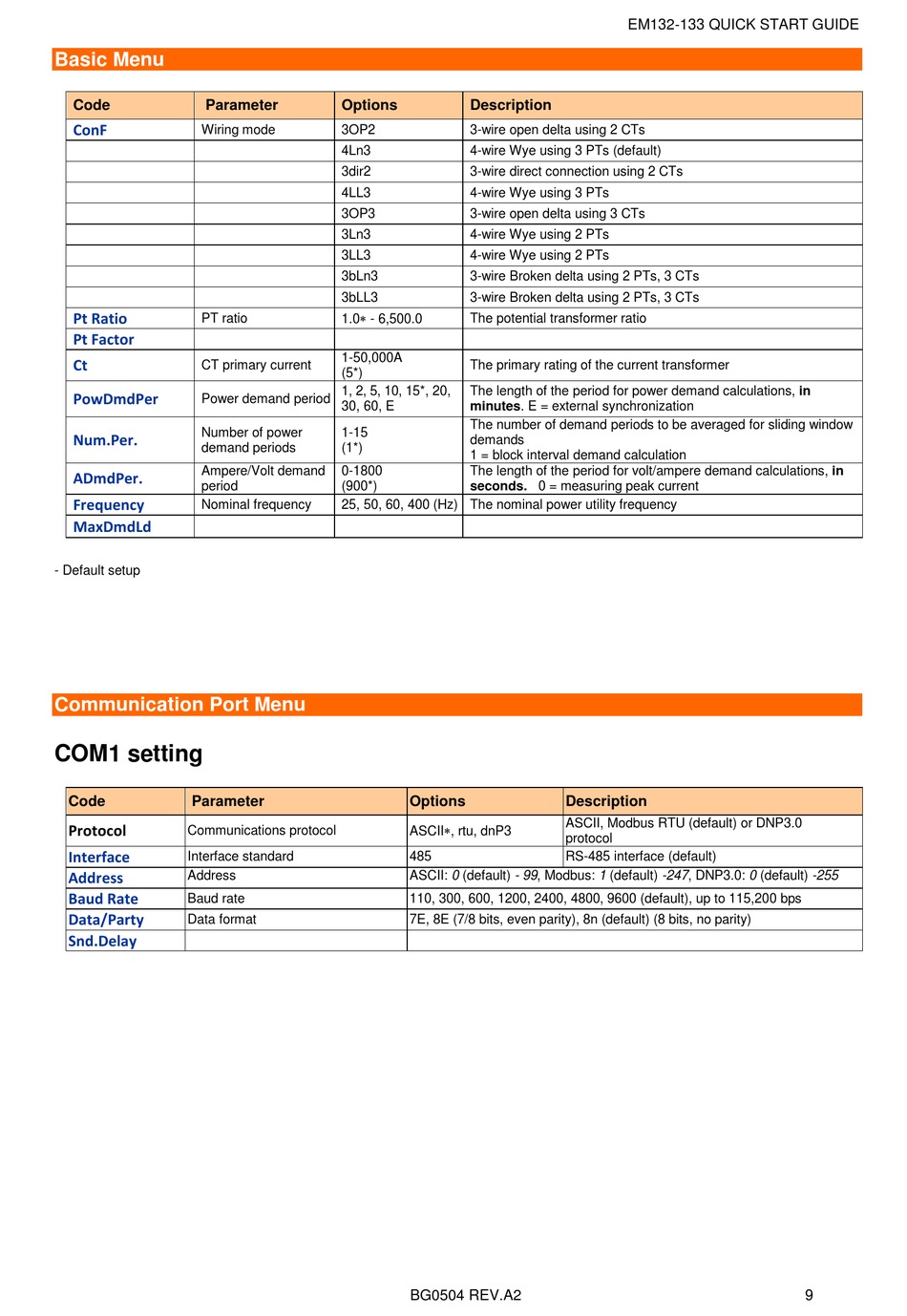

Basic Menu

Code Parameter
ConF
Wiring mode
Pt Ratio
PT ratio
Pt Factor
Ct
CT primary current
PowDmdPer
Power demand period
Number of power
Num.Per.
demand periods
Ampere/Volt demand
ADmdPer.
period
Frequency
Nominal frequency
MaxDmdLd
- Default setup
Communication Port Menu
COM1 setting
Code Parameter
Protocol
Communications protocol
Interface
Interface standard
Address
Address
Baud Rate
Baud rate
Data/Party
Data format
Snd.Delay
Options Description
3OP2 3-wire open delta using 2 CTs
4Ln3 4-wire Wye using 3 PTs (default)
3dir2 3-wire direct connection using 2 CTs
4LL3 4-wire Wye using 3 PTs
3OP3 3-wire open delta using 3 CTs
3Ln3 4-wire Wye using 2 PTs
3LL3 4-wire Wye using 2 PTs
3bLn3 3-wire Broken delta using 2 PTs, 3 CTs
3bLL3 3-wire Broken delta using 2 PTs, 3 CTs
The potential transformer ratio
1.0 - 6,500.0
1-50,000A
The primary rating of the current transformer
(5*)
1, 2, 5, 10, 15*, 20, The length of the period for power demand calculations, in
30, 60, E minutes. E = external synchronization
The number of demand periods to be averaged for sliding window
1-15
demands
(1*)
1 = block interval demand calculation
0-1800 The length of the period for volt/ampere demand calculations, in
(900*) seconds. 0 = measuring peak current
25, 50, 60, 400 (Hz) The nominal power utility frequency
Options
ASCII, rtu, dnP3
485
ASCII: 0 (default) - 99, Modbus: 1 (default) -247, DNP3.0: 0 (default) -255
110, 300, 600, 1200, 2400, 4800, 9600 (default), up to 115,200 bps
7E, 8E (7/8 bits, even parity), 8n (default) (8 bits, no parity)
BG0504 REV.A2
EM132-133 QUICK START GUIDE
Description
ASCII, Modbus RTU (default) or DNP3.0
protocol
RS-485 interface (default)
9
