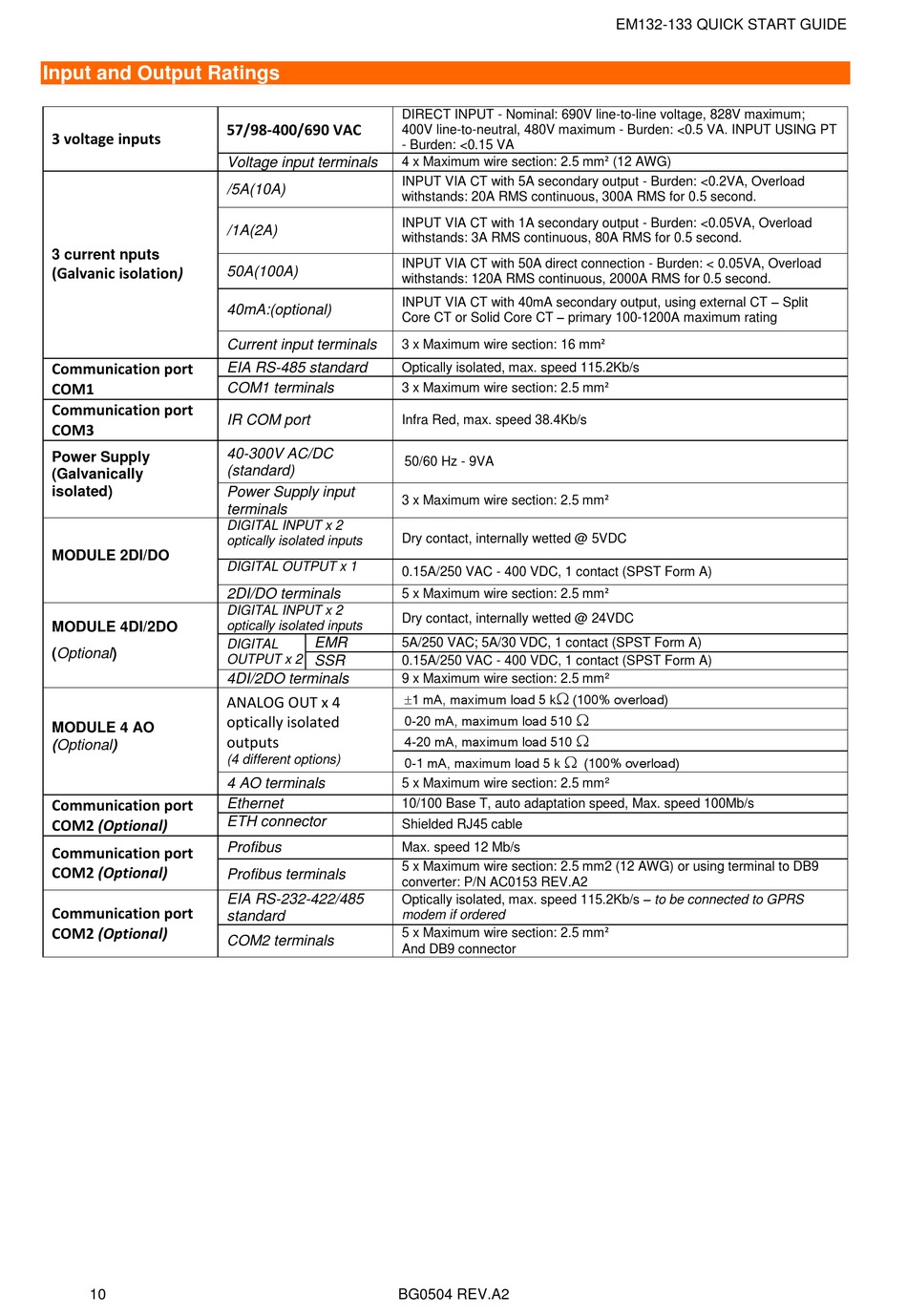

Input and Output Ratings

3 voltage inputs
3 current nputs
(Galvanic isolation)
Communication port
COM1
Communication port
COM3
Power Supply
(Galvanically
isolated)
MODULE 2DI/DO
MODULE 4DI/2DO
(Optional)
MODULE 4 AO
(Optional)
Communication port
COM2 (Optional)
Communication port
COM2 (Optional)
Communication port
COM2 (Optional)
10
57/98-400/690 VAC
Voltage input terminals
/5A(10A)
/1A(2A)
50A(100A)
40mA:(optional)
Current input terminals
EIA RS-485 standard
COM1 terminals
IR COM port
40-300V AC/DC
(standard)
Power Supply input
terminals
DIGITAL INPUT x 2
optically isolated inputs
DIGITAL OUTPUT x 1
2DI/DO terminals
DIGITAL INPUT x 2
optically isolated inputs
EMR
DIGITAL
OUTPUT x 2
SSR
4DI/2DO terminals
ANALOG OUT x 4
optically isolated
outputs
(4 different options)
4 AO terminals
Ethernet
ETH connector
Profibus
Profibus terminals
EIA RS-232-422/485
standard
COM2 terminals
DIRECT INPUT - Nominal: 690V line-to-line voltage, 828V maximum;
400V line-to-neutral, 480V maximum - Burden: <0.5 VA. INPUT USING PT
- Burden: <0.15 VA
4 x Maximum wire section: 2.5 mm² (12 AWG)
INPUT VIA CT with 5A secondary output - Burden: <0.2VA, Overload
withstands: 20A RMS continuous, 300A RMS for 0.5 second.
INPUT VIA CT with 1A secondary output - Burden: <0.05VA, Overload
withstands: 3A RMS continuous, 80A RMS for 0.5 second.
INPUT VIA CT with 50A direct connection - Burden: < 0.05VA, Overload
withstands: 120A RMS continuous, 2000A RMS for 0.5 second.
INPUT VIA CT with 40mA secondary output, using external CT – Split
Core CT or Solid Core CT – primary 100-1200A maximum rating
3 x Maximum wire section: 16 mm²
Optically isolated, max. speed 115.2Kb/s
3 x Maximum wire section: 2.5 mm²
Infra Red, max. speed 38.4Kb/s
50/60 Hz - 9VA
3 x Maximum wire section: 2.5 mm²
Dry contact, internally wetted @ 5VDC
0.15A/250 VAC - 400 VDC, 1 contact (SPST Form A)
5 x Maximum wire section: 2.5 mm²
Dry contact, internally wetted @ 24VDC
5A/250 VAC; 5A/30 VDC, 1 contact (SPST Form A)
0.15A/250 VAC - 400 VDC, 1 contact (SPST Form A)
9 x Maximum wire section: 2.5 mm²

1 mA, maximum load 5 k
0-20 mA, maximum load 510
4-20 mA, maximum load 510

0-1 mA, maximum load 5 k
5 x Maximum wire section: 2.5 mm²
10/100 Base T, auto adaptation speed, Max. speed 100Mb/s
Shielded RJ45 cable
Max. speed 12 Mb/s
5 x Maximum wire section: 2.5 mm2 (12 AWG) or using terminal to DB9
converter: P/N AC0153 REV.A2
Optically isolated, max. speed 115.2Kb/s – to be connected to GPRS
modem if ordered
5 x Maximum wire section: 2.5 mm²
And DB9 connector
BG0504 REV.A2
