Cortex GS6 Owner's Manual page 10

STEP 2
1.
10

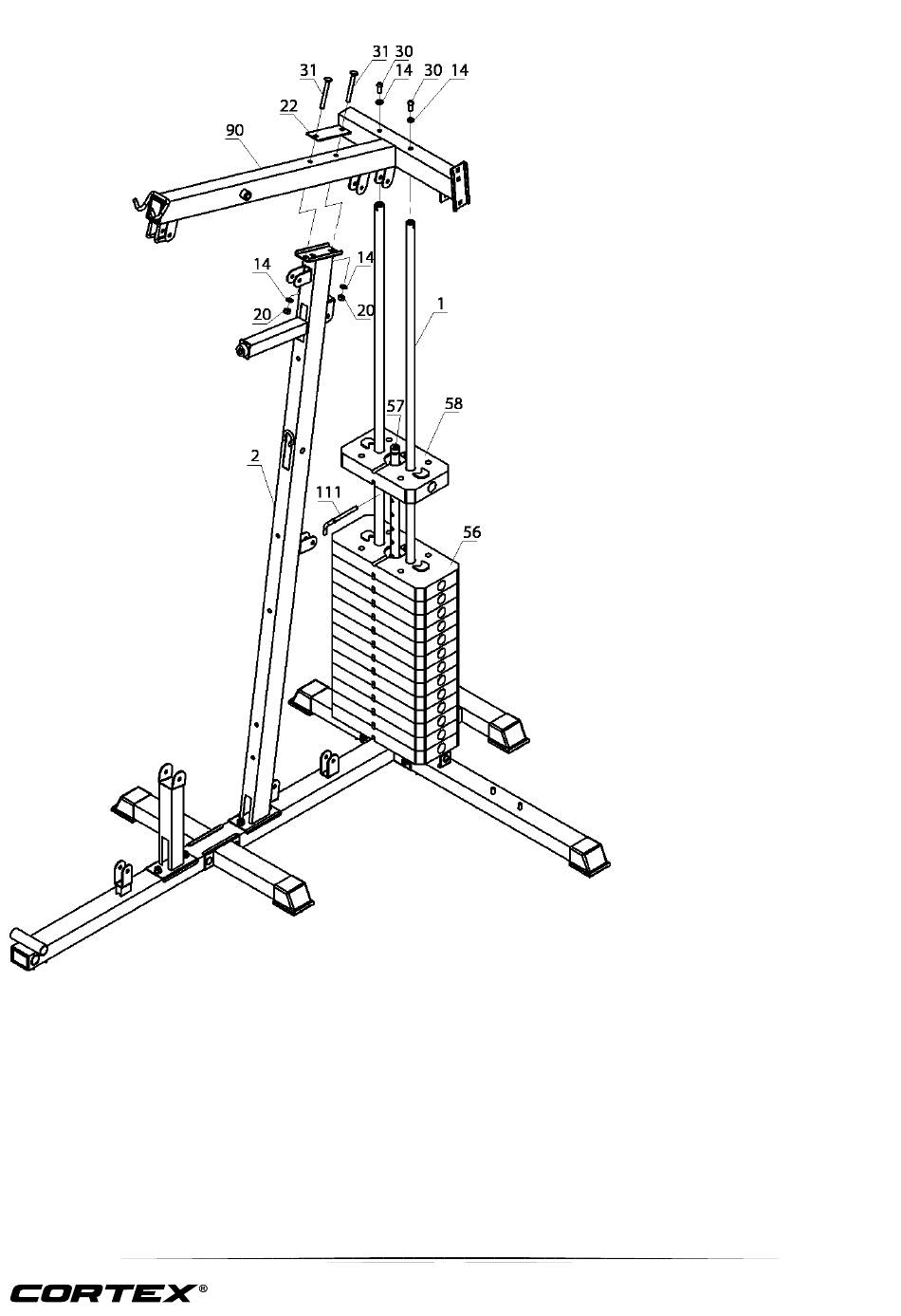

1. Slide the 13 Weight Plates (#56)
onto the Guide Rods (#1). (Note:
The groove side faces down).
Insert the Selector Rod (#57)
through the centre hole.
2. Slide the Selector Stem (#58) onto
the Guide Rod (#1). Insert the L-
shaped Pin (#111).
3. Attach the Upper Frame (#90) to
the Guide Rods (#1). Secure it with
2x Allen Bolt M10*25mm (#30) and
2x Washer Φ10 (#14).
4. Secure the Upper Frame (#90) to
the Front Vertical Frame (#2) with
2x Carriage Bolt M10*90mm (#31),
2x Washer Φ10 (#14), Bracket
(#22) and 2x Aircraft Nut M10mm
(#22).
GS6 MULTI STATION
