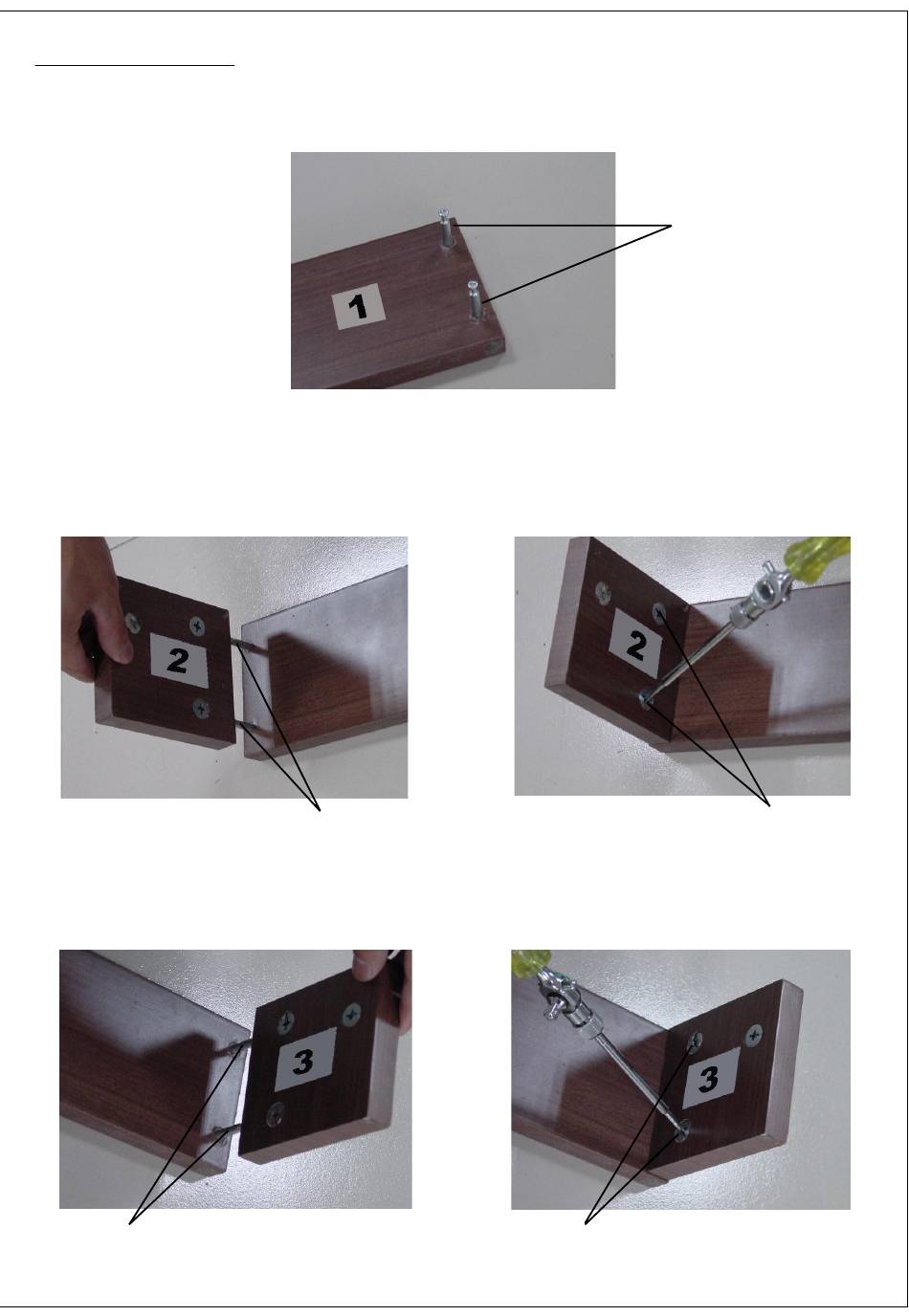

Assemble the Base
1. Set top base panel on the ground, with the surface marked 1 upward. Set connectors in
four screwed holes in the top base panel ( Note: Be sure to fasten the connectors tightly)-
See FIG (a).
2. Piece together the left base panel marked 2 that has two holes with the top base panel. Note:
Insert the connectors on the left part of top base panel in the corresponding holes of left base
panel-see FIG (b). Then screw down the connectors using Philips screwdriver, see FIG (c).
FIG (b)
3. Piece together the right base panel marked 3 that has two holes with the top base panel. Note:
Insert the connectors on the right part of top base panel in the corresponding holes of right base
panel-see FIG (d). Then screw down the connectors using Philips screwdriver, see FIG (e).
Connector
FIG (d)
FIG (a)
Connector
2 3
Connector
FIG (c)
Fastener
FIG (e)
Fastener
